- M10/E10 Embosser
M10/E10 Embosser
M10/E10 Embosser
- Card Dimensions: ISO Standard CR-80 with a thickness of .030" - .032".
- Embossing Area: Full card coverage.
- Physical Dimensions: 15" x 16.22" x 12.2".
- Weight: 57 lbs.
- Embosses on plastic cards or thin metal plates.
- 55 character capacity drum with numbers and punctuation marks.
- Automatic interspacing and free format on the whole card.
- Manually operated.
- Embosses or indents metal plates.
- 60 character capacity drum with numbers and punctuation marks.
- Automatic interspacing and free format on the whole plate.
- Includes a correction device.
- Manually operated.
- Embossing: Simplex 2, Block, Block USA, and OCR B1.
- Debossing: Dog-Tag.
- Width: 1.2" through 4.5".
- Height: .79" x 3.5".
- Thickness: .02" x .04".
- Embossing area up to 2.5” from the top edge of the plate, leaving .15" free from the bottom.

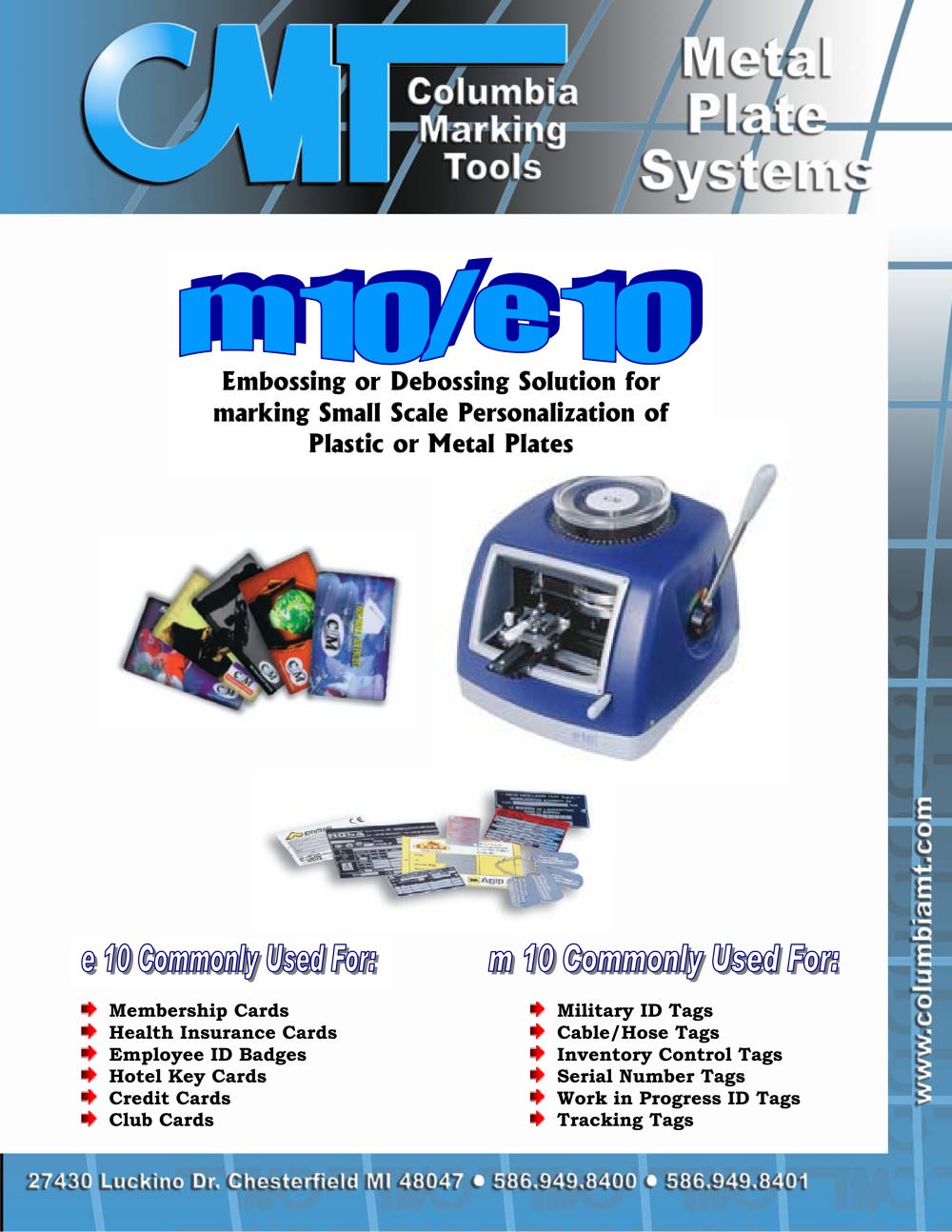

Catalog excerpts
Membership Cards Military ID Tags Health Insurance Cards Cable/Hose Tags Employee ID Badges Inventory Control Tags Hotel Key Cards Serial Number Tags Credit Cards Work in Progress ID Tags Club Cards Tracking Tags >
Open the catalog to page 1
Available Font: Standard Gothic or OCR 78 Available Fonts: Embossing: Card Dimensions : ISO Standard CR-80 Thickness .030" - .032 Simplex 2, Block, Block USA and OCR B1 " Embossing Area: Full Card Debossing: Dog-Tag Physical Dimensions: 15" x 16.22" x 12.2" Plate Dimensions: (Width: 1.2" thru 4.5") (Height: .79" x 3.5") (Thickness: .02" x .04") Weight: 57 lbs Embossing Area: Up to 2.5 from the Top Edge of the Plate Leaving .15" free from the Bottom . Physical Dimensions: 15" x 16.22" x 12.2" Weight: 57 lbs >
