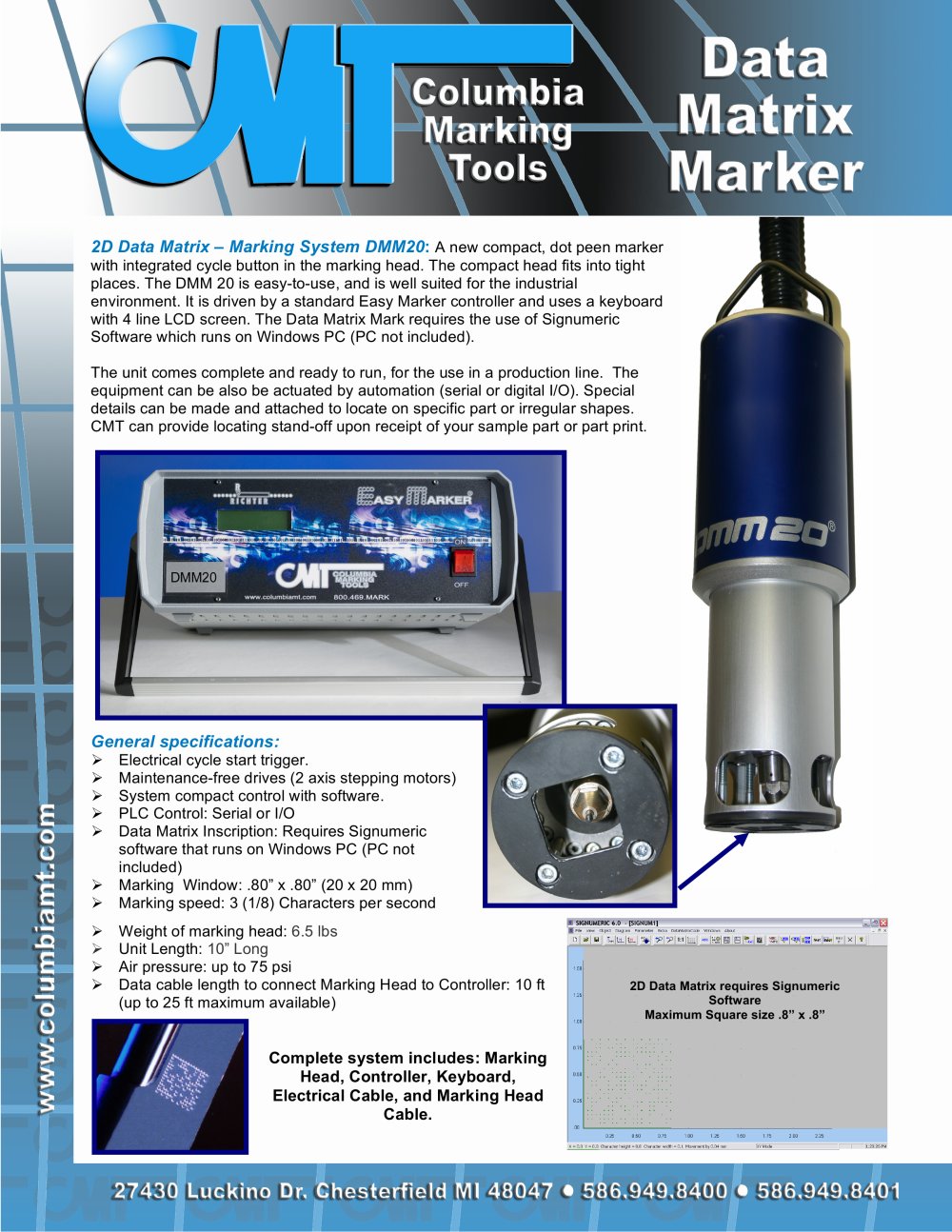

A new compact, dot peen marker with integrated cycle button in the marking head. The compact head fits into tight places. The DMM 20 is easy-to-use, and is well suited for the industrial environment. It is driven by a standard Easy Marker controller and uses a keyboard with 4 line LCD screen. The Data Matrix Mark requires the use of Signumeric Software which runs on Windows PC (PC not included). The unit comes complete and ready to run, for the use in a production line. The equipment can be also be actuated by automation (serial or digital I/O). Special details can be made and attached to locate on specific part or irregular shapes. CMT can provide locating stand-off upon receipt of your sample part or part print. > Electrical cycle start trigger. Maintenance-free drives (2 axis stepping motors) System compact control with software. PLC Control: Serial or I/O Data Matrix Inscription: Requires Signumeric software that runs on Windows PC (PC not included) Marking Window: .80֔ x .80 (20 x 20 mm) Marking speed: 3 (1/8) Characters per second Weight of marking head: 6.5 lbs Unit Length: 10Ԕ Long Air pressure: up to 75 psi Data cable length to connect Marking Head to Controller: 10 ft (up to 25 ft maximum available) > 2D Data Matrix requires Signumeric Software Maximum Square size .8 x .8Ԕ
