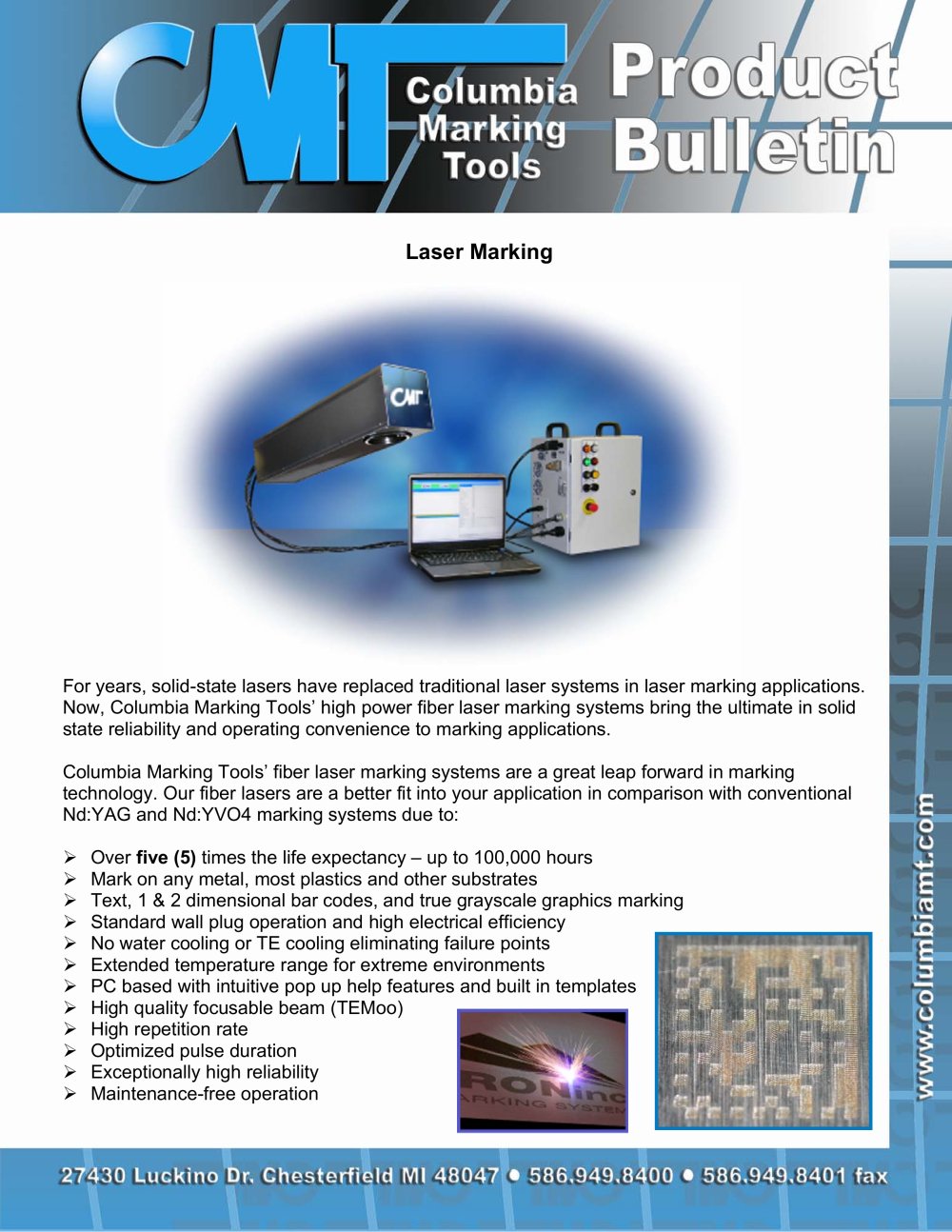

For years, solid-state lasers have replaced traditional laser systems in laser marking applications. Now, Columbia Marking Tools high power fiber laser marking systems bring the ultimate in solid state reliability and operating convenience to marking applications. Columbia Marking ToolsҒ fiber laser marking systems are a great leap forward in marking technology. Our fiber lasers are a better fit into your application in comparison with conventional Nd:YAG and Nd:YVO4 marking systems due to: Over five (5) times the life expectancy up to 100,000 hours Mark on any metal, most plastics and other substrates Text, 1 & 2 dimensional bar codes, and true grayscale graphics marking Standard wall plug operation and high electrical efficiency No water cooling or TE cooling eliminating failure points Extended temperature range for extreme environments PC based with intuitive pop up help features and built in templates High quality focusable beam (TEMoo) High repetition rate Optimized pulse duration Exceptionally high reliability Maintenance-free operation >

Open the catalog to page 1

Parameters Unit Elite Mark V Elite Mark X Elite Mark XX Lasant Medium Ytterbium Fiber Ytterbium Fiber Ytterbium Fiber Laser source lifetime (MTBF) Hrs >50,000 >50,000 >50,000 Wavelength nm 1,064 1,064 1,064 Guiding beam wavelength nm 660 (red) 660 (red) 660 (red) Mode of operation Q-switched Q-switched Q-switched Pulse Repetition Rate* kHz 20-100 20-100 20-100 Energy per pulse mJ (PRR = 20 kHz) .25 .50 1 Output power tunability % 10-100 10-100 10-100 Typical beam quality M2 <1.5 <1.5 <1.5 Operating voltage VAC 110-230 110-230 110-230 Operating temperature ˚C (˚F) 0 + 45 (32 + 113) 0 + 45...
