DPS Dot Peen Scribe System

DPS Dot Peen Scribe System
2Pages

Catalog excerpts

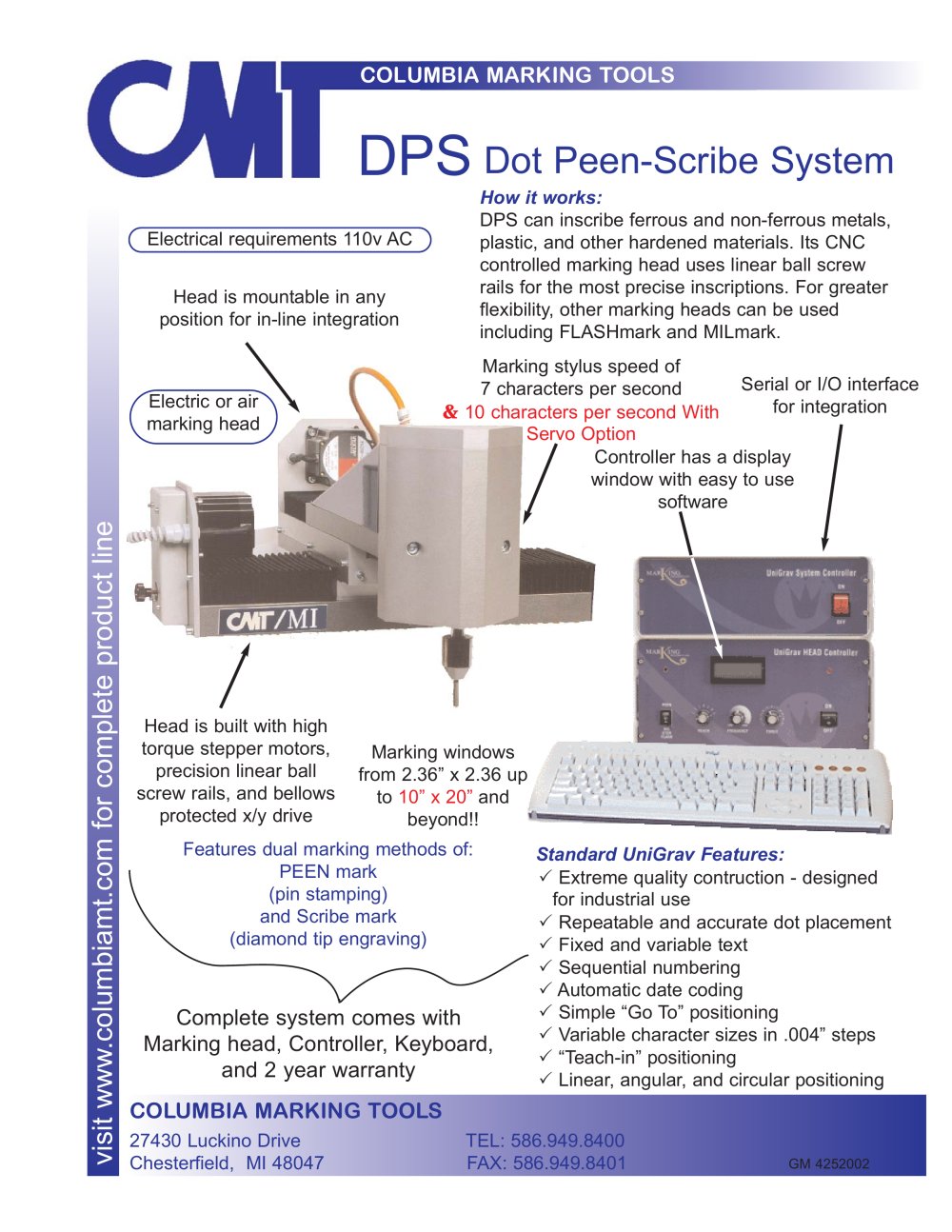

How it works: DPS can inscribe ferrous and non-ferrous metals, plastic, and other hardened materials. Its CNC controlled marking head uses linear ball screw rails for the most precise inscriptions. For greater flexibility, other marking heads can be used including FLASHmark and MILmark.Electric or airmarking head Electrical requirements 110v AC Head is mountable in anyposition for in-line integrationSerial or I/O interfacefor integration Marking stylus speed of 7 characters per second 10 characters per second WithServo Option Head is built with hightorque stepper motors,precision linear ballscrew rails, and bellowsprotected x/y drive Marking windowsfrom 2.36 x 2.36 upto10Ԕ x 20 andbeyond!! Controller has a displaywindow with easy to usesoftware Features dual marking methods of:PEEN mark(pin stamping)and Scribe mark(diamond tip engraving) Standard UniGrav Features: Extreme quality contruction - designedfor industrial use Repeatable and accurate dot placement Fixed and variable text Sequential numbering Automatic date coding > Simple ԓGo To positioning Variable character sizes in .004Ԕ steps Teach-inӔ positioning Linear, angular, and circular positioning > 27430 Luckino DriveTEL: 586.949.8400Chesterfield, MI 48047FAX: 586.949.8401 > visit www.columbiamt.com visit www.columbiamt.com for complete product line GM 4252002 size="-1">

Open the catalog to page 1

Options and Customization: > Complete integration services Custom weldments and fixtures Arotator for marking the circumference of cylindricalparts Bench style stand (12 height, extends to 25Ԕ) Automated Z axis Servo option offers 10 characters inless than 1 second!! MILmark (routering attachment) FLASHmark (electric imaging attachment) Servo Motors Different marking windows up to 10 x 20Ԕ andbeyond!! w e l d m e n t s a n d f i x t u c i a l r e s p e S i o n e m a i l : r m a t i n f o m t . c o m r e m b i a o o l u PEEN mark: Pinstamps high resolu- tion text or graphicsinto plastic or...

Open the catalog to page 2
