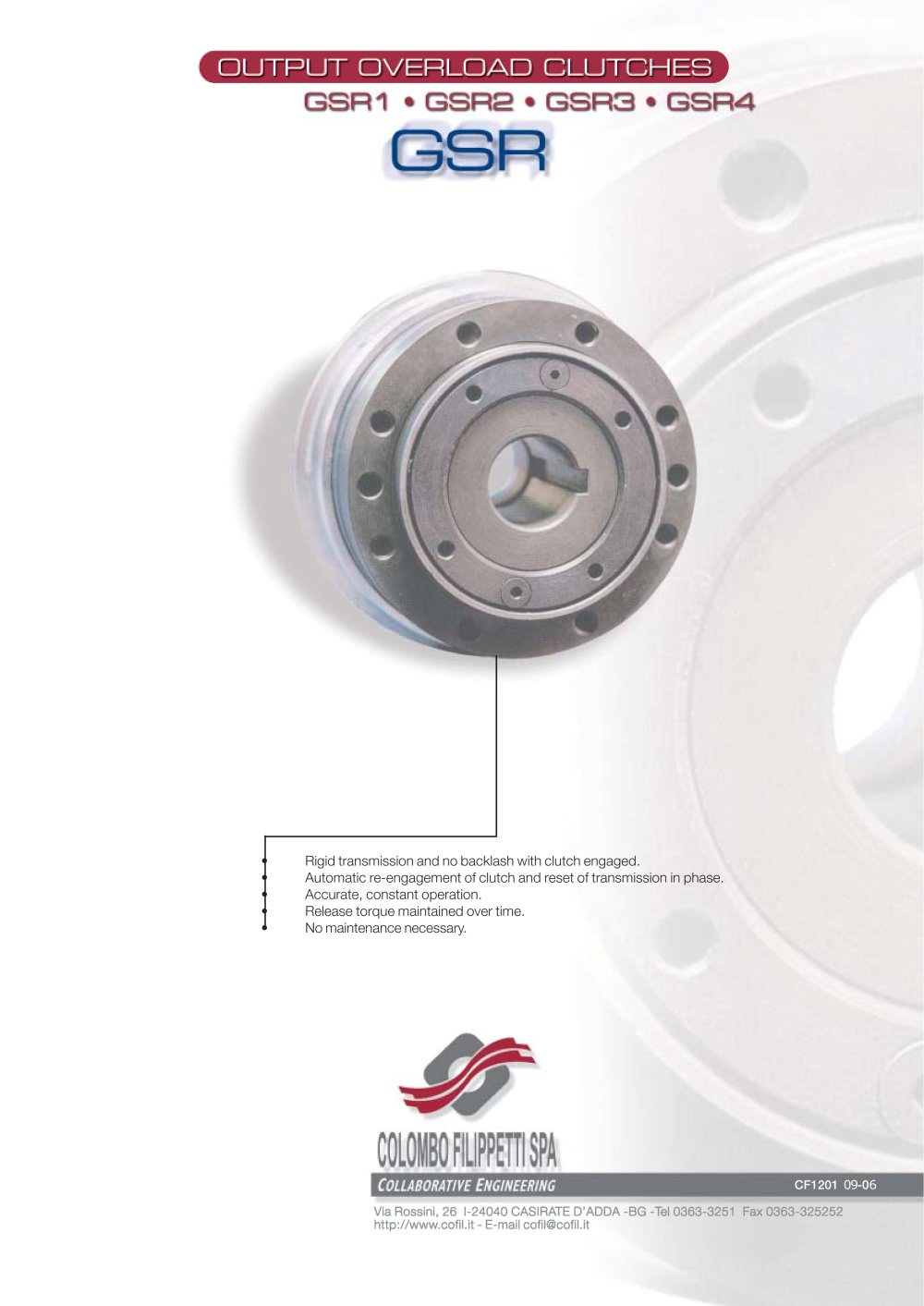

Colombo Filippetti - Output Overload Clutches - GSR

Colombo Filippetti - Output Overload Clutches - GSR

Product catalog summary

Overview: The document provides technical specifications and operational guidelines for the GSR series output overload clutches, designed to protect CF3 Index Drives from overloads during intermittent motion cycles. It includes detailed descriptions of operation, dimensions, torque regulation, and mounting procedures.

Specifications: The GSR series includes models GSR1, GSR2, GSR3, and GSR4, each with specific dimensions and torque capacities. The clutches are designed for rigid transmission with no backlash when engaged and feature automatic re-engagement and reset capabilities.

Operation: Under normal conditions, torque is transmitted from the hub on the output shaft to the external casing. In case of a blockage, the clutch disengages, activating a detector plate that can trigger a limit switch to shut down the motor.

Description: The clutches serve as torque limiters to protect against accidental overloads. They are mounted on the output shaft and can be reset by either returning to the original position or completing a full revolution of the output shaft.

Dimensions and Characteristics: The document provides detailed measurements for each model, including hole dimensions for mounting. The clutches are equipped with tapered locking rings for secure coupling and are pre-calibrated to the maximum torque of the connected CF3 Index Drive.

Torque Regulation: Adjustments to the release torque can be made by loosening screws on the adjuster plate and turning it with a spanner. The clutch is locked in place once the desired torque setting is achieved.

Mounting Positions: The clutches can be mounted in two positions, either with external or internal coupling. Detailed procedures for mounting and removal are provided, emphasizing the importance of not using force and following the specified methods.

Important Note: The GSR output overload clutches are designed solely to protect the CF3 Index Drives from internal breakage and do not offer protection against accidents or damage to persons or parts.
