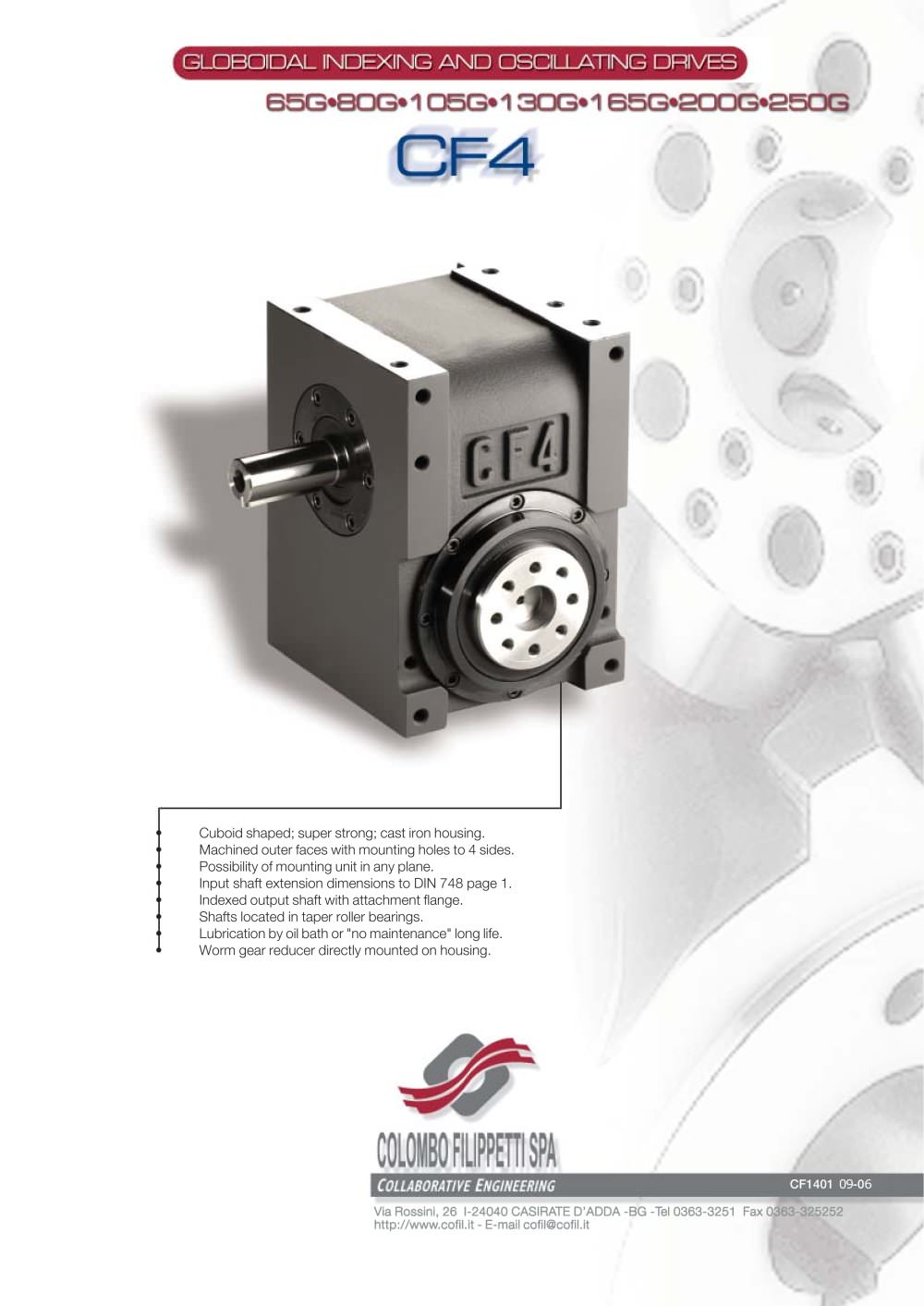

Colombo Filippetti - Oscillating Drives - CF4

Product catalog summary

Overview: The document provides comprehensive technical specifications and operational guidelines for CF4 Globoidal Indexing Drives by Colombo Filippetti. It covers various models, lubrication needs, dynamic capacities, and ordering codes.

1. Versions: CF4 Index Drives are available in multiple versions tailored for specific applications, including standard, special, and those with reduction gears, self-braking motors, speed variators, and clutch brakes. Some versions can incorporate a torque limiter.

2. Housed Units: Specifications for housed units include input and output shaft details, with the ability to reverse rotation direction. It provides mounting and securing specifications.

3. Assembly Position of the Gear Motor: The drives can be equipped with worm screw reduction gears with a built-in clutch for overload safety. Various mounting positions are available, with guidance on selecting the appropriate drive.

4. Standard Gear Motors: Specifications for standard gear motors, including dimensions and reduction gear types, are provided. Alternative motors and reduction gears are available upon request.

5. Cams for Limit Switches: Cam-limit switch units control motor operation, with details on available cam types and installation on CF4 Index Drives.

6. Lubrication: Lubrication requirements depend on speed and environmental conditions, recommending synthetic grease or oil for long-life lubrication. Guidelines for lubricant changes and recirculation systems for high-speed operations are included.

Standards and Compliance: The document adheres to international standards for measurements and tolerances, including UNI – ISO 2768-1 and UNI EN 22768-1, with illustrations complying with UNI 3970 (ISO 128-82).

Additional Notes: Colombo Filippetti reserves the right to change products and components without notice. The document supersedes previous versions.

Specifications: The CF4 series includes models 65G, 80G, 105G, 130G, and 165G, each with specific dimensions and dynamic torque capacities detailed in tables. Drives are typically supplied in standard execution V5 unless specified otherwise.

Lubrication: Lubrication requirements include indicative oil amounts for different models and configurations (V5-B6-V8 and V6-B3-B7), with intervals ranging from 2,000 to 8,000 hours based on oil temperature.

Ordering Code: The ordering code combines alphanumeric characters specifying type, number of stations, angle of displacement, version, and other characteristics, crucial for avoiding misunderstandings and ensuring timely delivery.

Dynamic Capacities: Tables provide detailed dynamic torque values at various cycles per minute for each model, essential for understanding performance capabilities under different conditions.

Key Parameters: Critical parameters include static torque, coefficients of velocity, acceleration, and transmission, necessary for proper drive selection and application.

Performance Data: Tables show dynamic torque values for each model at different cycle rates, e.g., CF4 105 G model has a dynamic torque of 14.5 da Nm at 50 cycles/min, decreasing to 8.6 da Nm at 300 cycles/min.

Operational Characteristics: Specifies the number of stations, angles of displacement (B°), and angles of dwell (Bp°), along with coefficients of velocity (Cv), acceleration (Ca), and transmission (kj-Kl).

Special Features: Some CF4 indexers can perform two complete cycles of displacement and dwell with one full rotation of the input shaft.

Additional Information: Special motion configurations can be supplied upon request.

Catalog excerpts

Colombo Filippetti - Oscillating Drives - CF4-5

Gear motorGear motorwith clutch brakeReduction speed Reduction gear variator gear

Open the catalog to page 5

Colombo Filippetti - Oscillating Drives - CF4-7

CAMS FOR LIMIT SWITCHES; TYPES, OVERALL DIMENSIONS AND POSITIONS > CT cam for push operated limit switch with roller D4B 1171-DIN43694 FORM B cam for lever operated limit switch with roller D4B 1111- IN43694 FORM A/B cam for proximity limit switch E2E2 - X2B1 o TLE X5BI-G CENELEC (EN 50008) > 1520 CL > 1530 CM > 152530

Open the catalog to page 7

Colombo Filippetti - Oscillating Drives - CF4-8

Tab. 4. Indicative amount of lubricating oil in Kg.CF4 seriesV5-B6-V8V6-B3-B765G Fig.11 10,9 80G 32,5

Open the catalog to page 8

Colombo Filippetti - Oscillating Drives - CF4-9

The ordering code of CF4 INDEX DRIVES is formed by an alphanumerically combination according to the chart below. This chart should always be referred to when ordering to avoid misunderstandings, mistakes and delays in delivery. > G1234 TypeNumber of stationsAngle of displacementVersionSide with input shaftSide of the indexing flangeSide with securing holeSide with oil filling plug (LV long-life lubrication)Lower side on assemblyMounting position of the reduction gear (do not specify when ordering versions VSS and VSL) Limit switch control cam, limit switch and bearings type: > REDUCTION GEAR...
