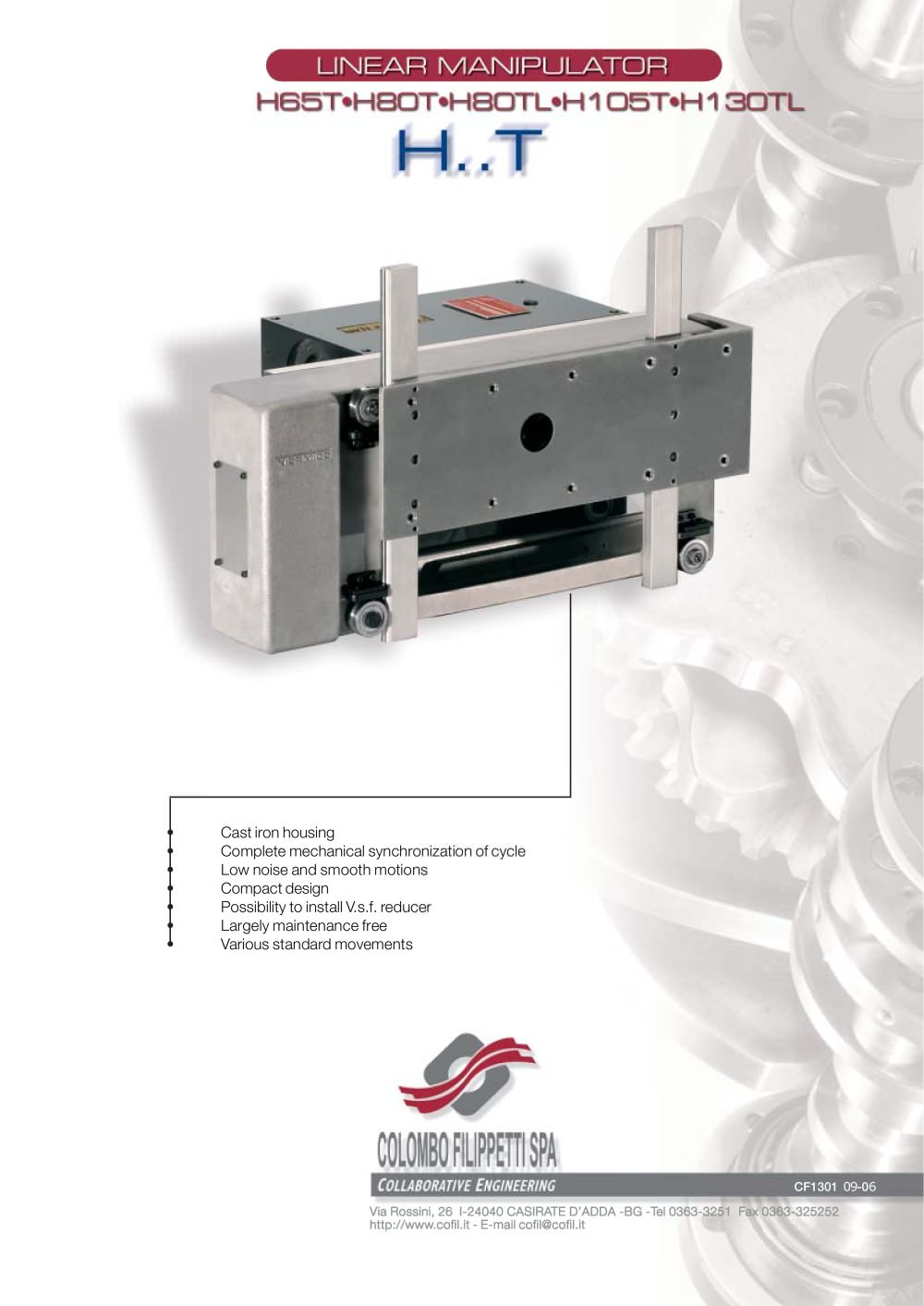

General Information
The INTERMICO manipulator is a compact mechanism designed for automatic loading, unloading, transporting, or repositioning of parts or small working units. It operates with a mechanical transmission using conjugate cams for precise, backlash-free movement. It can be activated automatically with an electric motor or synchronized with a main drive-shaft. The manipulator can be mounted in various ways and requires no maintenance due to its oil bath and grease-lubricated guides.
The INTERMICO manipulator is a compact mechanism designed for automatic loading, unloading, transporting, or repositioning of parts or small working units. It operates with a mechanical transmission using conjugate cams for precise, backlash-free movement. It can be activated automatically with an electric motor or synchronized with a main drive-shaft. The manipulator can be mounted in various ways and requires no maintenance due to its oil bath and grease-lubricated guides.
Technical Data
The document provides detailed technical specifications for different series of manipulators (H65T, H80T, H105T), including travel direction, reduction ratio, speed, motor size, and loading capability. For example, the H65T series has a travel direction of 150±1 in X and 50±0.5 in Y, with a reduction ratio of 19 and a motor size of 0.75 kW.
The document provides detailed technical specifications for different series of manipulators (H65T, H80T, H105T), including travel direction, reduction ratio, speed, motor size, and loading capability. For example, the H65T series has a travel direction of 150±1 in X and 50±0.5 in Y, with a reduction ratio of 19 and a motor size of 0.75 kW.
Type of Standard Movement
The manipulators have different movement types, with diagrams illustrating the movement paths. Type A1 movement completes a half cycle in one rotation of the input shaft, requiring two rotations for a full cycle.
The manipulators have different movement types, with diagrams illustrating the movement paths. Type A1 movement completes a half cycle in one rotation of the input shaft, requiring two rotations for a full cycle.
Overall Dimensions
Dimensions for each series are provided, detailing measurements such as length, width, and height. Special dimensions for H80 TL and H105 TL series are available on demand.
Dimensions for each series are provided, detailing measurements such as length, width, and height. Special dimensions for H80 TL and H105 TL series are available on demand.
Designation
Manipulators are designated by series, type of movement, speed or reduction ratio, and version. Versions include options like manipulators without reducers or motors (VS), with reducers but no motors (VRI), with brake-motors (VAI), and with motors and clutch-brake units (VKI).
Manipulators are designated by series, type of movement, speed or reduction ratio, and version. Versions include options like manipulators without reducers or motors (VS), with reducers but no motors (VRI), with brake-motors (VAI), and with motors and clutch-brake units (VKI).
See more
Catalog excerpts
TECHNICAL DATA TRAVEL REDUCTION SPEED MOTOR SIZE LOADING " which can be used to control a brake-motor, a base-brake unit or to operate the jaws of an automatic handling mechanism or similar small working units. The INTERMICO manipulator is suitable for different types of mounting and can be fixed to the base-plate of the machine, or on a support or to a column, either of which must be in accordance with the height regulations. For fixing, use the threaded holes to be found in the iron housing of the body. The automatic handling mechanism, small working units and other attachments can be anchored...
