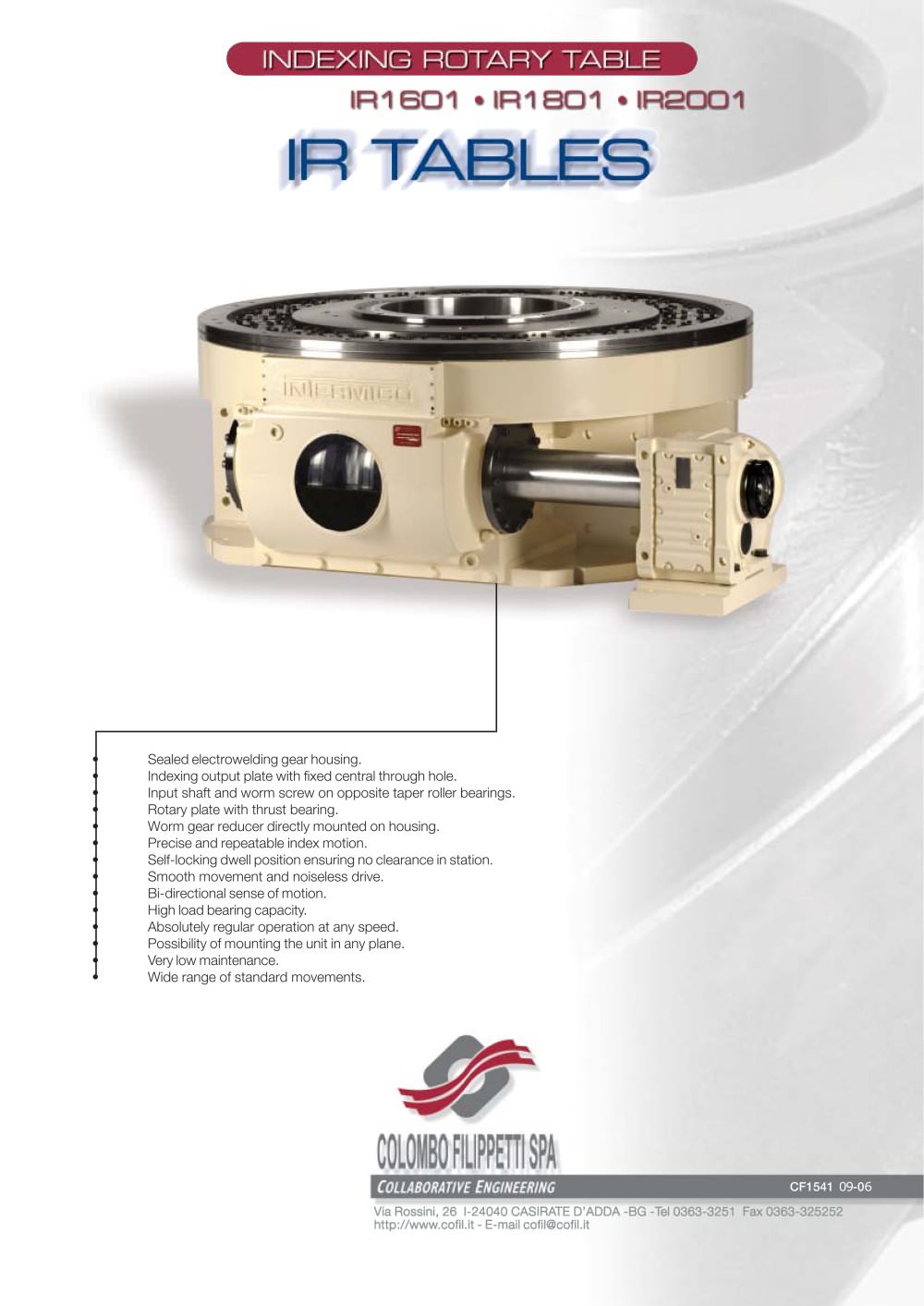

Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001
16Pages

{{requestButtons}}

Catalog excerpts

Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 2

IR2001 > The units of measurement correspond with System International /Severity Index SI General tolerances of manufacture are conform to UNI ISO 2768-1 UNI EN 22768-1 Illustrations and drawings according to UNI 3970 (ISO 128-82). Method of projection of the drawings. All rights reserved. No part of this catalogue may be duplicated. COLOMBO FILIPPETTI may make any changes they feel necessary for the improvement of their products without advance notice. COLOMBO FILIPPETTI may change any market components and accessories mentioned in this catalogue as they feel necessary. This catalogue...

Open the catalog to page 2
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 4

1. General information Variants / Number of stations Tab. 1 Faces designation > A . Clamp by 6 screw for IR1601 and 10 screws for IR1801 and 2001. Motion input: - Direct on cam shaft using conical lockers. Series IR1601 / IR 1801 / IR 2001 Number of stations 18 20 24 26 28* 30* 32* 34* For the number of stations marked with (*), each complete cycle is achieved in 180 of the cam rotation It is possible to realise IR tables with different number of stations on request. Installation: - Position on face >

Open the catalog to page 4
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 7

5.Load types on thrust bearing > ABC TA =Axial loadsB = Radial loadsC = Upsetting loadsT = Tangential loads Fig. 3 Tab. 7 Load coefficients [kN] > Static Dynamic Axiale C > oa Radial C > or Axial C > a Radial C > r IR 1601 4581 1832 706 564 IR 1801 4581 1832 706 564 IR 2001 5394 2157 764 611 Tab. 7 shows load coefficients of indexing plate thrust bearing. Various types of loads with different strength apply contemporary on rotary tables in displacement and dwell periods. Therefore actual admissible axial and radial loads are not to be compared simply with table data. In any case our...

Open the catalog to page 7
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 8

7.Standard drilling scheme of indexing plate > 30 15а 15 Fig. 4 N.B. IR table is represented in the middle of a dwell in a station. Tab. 9 Serie A BFORI CN FORI EN IR 1601 1070 800 20H7 x 25 4 M24 x 40 32 IR 1801 1700 920 20H7 x 25 4 M24 x 40 32 IR 2001 1900 1100 20H7 x 25 4 M24 x 40 32 On demand, can be supplied, INDEXING TABLE with special holes. 8.Motorizations COLOMBO FILIPPETTI SPA can also supply the motorization and overload protection systems for this rotary table. Other than the different possible solutions, depending on customer requirements and applications, a more defined and...

Open the catalog to page 8
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 10

10.Assembly of control cam for microswitches The applications for INDEXING TABLES frequently require a cam-limit switch unit to interrupt the motor drive at each cycle. The stop can have the function of extending the rest period of the cycle and/or of reversing the sense of rotation of the motor and consequently of the INDEXING TABLE and in which case will operate as a rocker unit. Limit switch cams are available in three standard shapes, each suitable for a particular type of limit switch as follows > cam for push operated limit switch with roller D4B 1171-DIN43694 FORM B cam for lever...

Open the catalog to page 10
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 11

FC are micro groups driven by the camshaft in ratio 1:1. These groups cannot distinguish particular station positions but can provide up to 6 control microcams as standard; each of which is synchronised with the IR camshaft. Tab .13 > 11.FC and FCR Micro Groups This simple micro groups permit identification only of the fact that the cam is in a certain position. If this position be the dwell period, the IR table must be in any one of perhaps several stations. It is sometimes necessary to know which particular station e.g. tables where oscillation between stations is required which is...

Open the catalog to page 11
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 12

CAM 2CAM 3 CAM 1CAM 4 CAM 4 CAM 1CAM 2 CAM 3 TAB. MICRO AXIS R = 0.75 TABLEROT. 90а AXIS MICROSWITCH FUNCTIONS1 Micro Stop POS. A2 Micro Stop POS. B3 Micro Stop POS. C4 Micro Stop POS. D >

Open the catalog to page 12
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 13

13.Lubrication The lubrication of IR 1601, IR 1801 and IR 2001 tables is by oil bath, only the rollers are lubricated by conveyance of lubricant. The recommended lubricant is ISO VG 320 mineral oil or similar. Lubrication frequency, unless leakage or external pollution have occurred, is as shown in Tab. 15 and depends on the temperature achieved by the oil under standard operating conditions. The thrust bearing of indexing plate must be lubricated by specific grease cups every 1600 hours of work with 8 cm3 of ISO XM 2 grease. Indexing tables are delivered with this bearing already...

Open the catalog to page 13
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 14

14. Position of lubrication holes > Oil filling plugOil level windowOil drain plug Fig. 13 > AM 8x1AM 8x1 F IGrease cup CADEHHGrease cup Fig. 14 Tab. 21 Serie A C D E F H I IR 1601 292 420 170 293 63 G 1 1/4 260 IR 1801 328 468 210 325 72 G 1 1/2 300 IR 2001 380 520 196 368 82 G 1 1/2 300 > 12 size="-2">

Open the catalog to page 14
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 15

TABLE CODE Statictorque Dynamic torque (at output) cycles/min Coeff.ofAccel. Coeff.ofTrasm. > Angleofdisplace. Numberandtype of roller > Number Of Station Angle of Mu [daN m] Series > dwell 17578 15 755 15 639 15 094 14 187 12 918 The IR Rotary table denoted by (*) with a complete rotation of the input shaft produce two complete cycles of the output shaft: "displacement-dwell, displacement-dwell". On demand INDEXING TABLE with special movement can be supplied. >

Open the catalog to page 15
Colombo Filippetti - Indexing Rotary Tables - IR Heavy Series 1601-1801-2001 - 16

16.Designation La designazione delle tavole rotanti IR composta da gruppi alfanumerici secondo lo schema sotto rappresentato. IR TABLE Series Type of roller N of stations Displacement angle Version Total reduction ratio > Type Version Reduction ratio Technical characteristics Torque limiter type: Setting torque: (daNm) Coupling type: Allovable torque: (daNm) > Norma MOTOR > Self-braking kW / P / V / Hz > Inverter INVERTER CHARACTERISTICS Supplier Size and version Power N谰 of poles Voltage ( V ) Frequency Brake supply kW V Type Power Voltage r > 14 size="-1">

Open the catalog to page 16
