Colombo Filippetti - Index Drives - CF4
20Pages

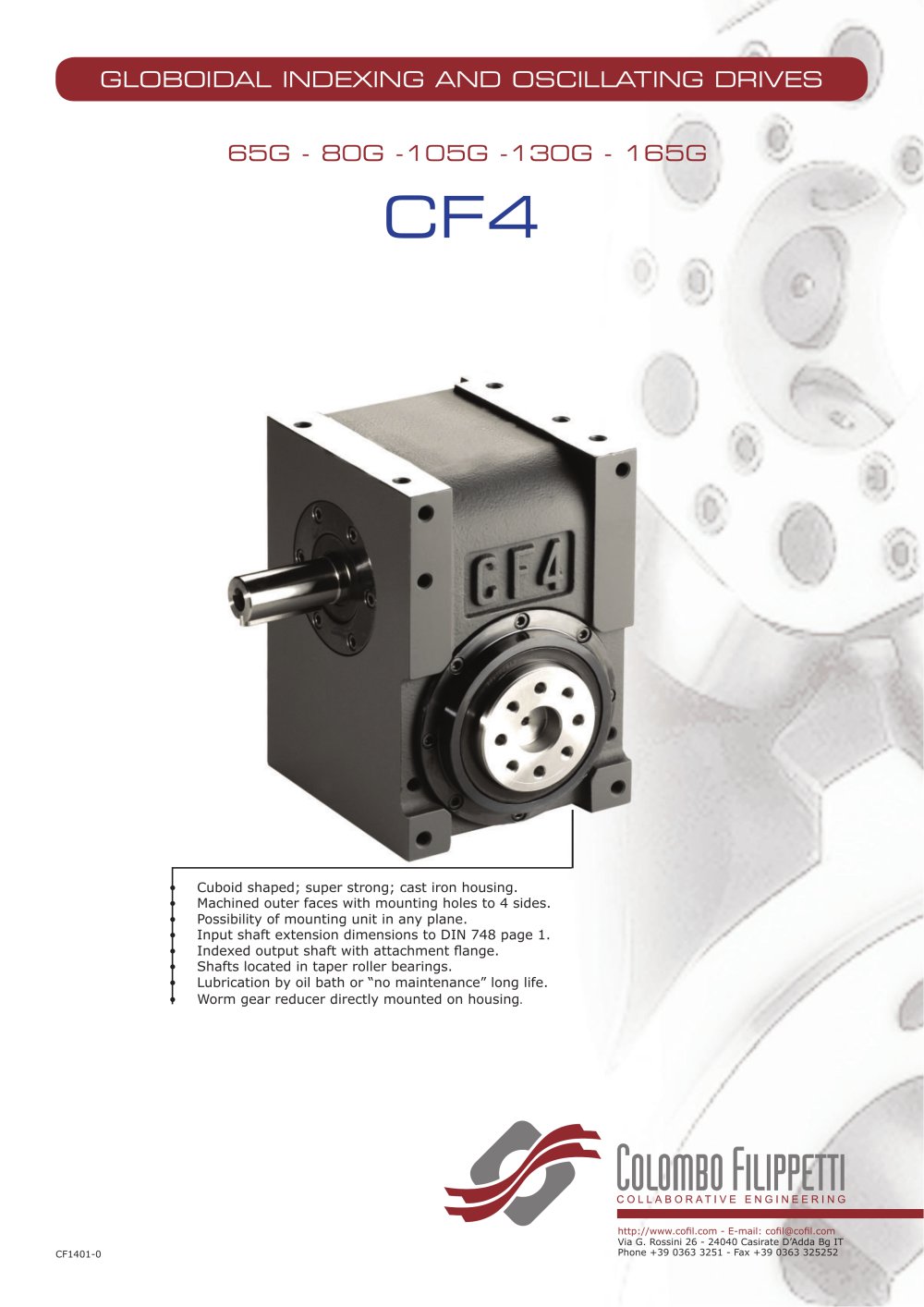

GLOBOIDAL INDEXING AND OSCILLATING DRIVES 65G - 80G -105G -130G - 165G Cuboid shaped; super strong; cast iron housing. Machined outer faces with mounting holes to 4 sides. Possibility of mounting unit in any plane. Input shaft extension dimensions to DIN 748 page 1. Indexed output shaft with attachment flange. Shafts located in taper roller bearings. Lubrication by oil bath or “no maintenance” long life. Worm gear reducer directly mounted on housing. http://www.cofil.com - E-mail: cofil@cofil.com Via G. Rossini 26 - 24040 Casirate D’Adda Bg IT Phone +39 0363

CF4 GLOBOIDAL INDEXING DRIVES PAG Cams for limit switches; types; overall dimensions an positions . 6 The units of measurement correspond with System International /Severity Index SI General tolerances of manufacture are conform to UNI – ISO 2768-1 UNI EN 227681 Illustrations and drawings according to UNI 3970 (ISO 128-82). Method of projection of the drawings. All rights reserved. No part of this catalogue may be duplicated. COLOMBO FILIPPETTI may make any changes they feel necessary for the improvement of their products without advance notice. COLOMBO FILIPPETTI may change any market...

CF4 GLOBOIDAL INDEXING DRIVES VERSIONS CF4 INDEX DRIVES are normally system and the overall dimensions of the available in the versions illustrated standard gear motors will be supplied on below. Information on the power drive demand. NOTE: It is possible to have a torque limiter incorporated inside the worm reducer. This type is denoted by placing the letter "L" after the letter "V" eg. VRP would become VLRP. Standard version. Special version (box, input shaft, output). Version with long shaft preset for reduction gear coupling. Version with reduction gear. Version with reduction gear...

CF4 GLOBOIDAL INDEXING DRIVESHOUSED UNITS NOTES: • By reversing the direction of rotation of the input shaft, the direction of rotation of the output shaft is reversed while the kinematic characteristics of the intermittent motion are unchanged. • The slot for the feather key of the input shaft is in the position shown on the figure when the INDEX DRIVE is halfway through its rest period. • The four holes for “O” plug and the four threades hole “P” are in the position shown on the figure when the INDEX DRIVE is at rest at any of the stations. The dimensions of the “O” holes shown on the...

CF4 GLOBOIDAL INDEXING DRIVES 65G 80G 105G 130G 165G ASSEMBLY POSITION OF CF4 INDEX DRIVES in the versions with standard power drive are fitted with suitably selected worm screw reduction gears witch are keyed directly into the input shaft. In the “LCB” version, these reduction gears are supplied with a built-in clutch, so that in case of accidental or emergency stops, overloads caused by dynamic impact are avoided by clutch operation. By mounting this type of drive, the standard execution combines three important elements: safety from shock due to overload during the traversing period...

CF4 GLOBOIDAL INDEXING DRIVESSTANDARD SEAR MOTORS - OVERALL DIMENSIONS Fig.5 - Reduction gear STM “RMI”, flanged version.

CF4 GLOBOIDAL INDEXING DRIVES DIMENSIONS AND POSITIONS In many applications involving the use of CF4 INDEX DRIVES, the need arises of using a cam-limit switch unit to stop the motor at the end of each cycle. The stop is required both when the cycle rest period needs extending and when the motor direction of rotation must be reversed, thus producing an oscillating intermittent motion at the output of the CF4 INDEX DRIVE. The limit switch cams come in three standard shapes, each suitable for the type of limit switch designed to be coupled to it, and are classified as follows: ATTENTION: the...

CF4 GLOBOIDAL INDEXING DRIVES Unless specified otherwise, CF4 index drives are supplied in the standard execution V5 and this code may therefore be omitted when ordering in these cases. Tab. 4. Indicative amount of lubricating oil in Kg. LUBRICATION The shape of the box, the overall machined outer surfaces and the sealed execution make it possible to mount the CF4 INDEX DRIVE in any position. On index drives operating at low speeds (3-50 cycle per minute) and pollution from the outside being absent, long-life lubrication with synthetic grease AGIP GR SLL is provided. On index drives...

CF4 GLOBOIDAL INDEXING DRIVES ORDERING CODE The ordering code of CF4 INDEX DRIVES is formed by an alphanumerically combination according to the chart below. This chart should always be referred to when ordering to avoid misunderstandings, mistakes and delays in delivery. CF4 INDEX DRIVE Type -1 Number of stations Angle of displacement Version Side with input shaft Side of the indexing flange _ Side with securing hole Side with oil filling plug (LV long-life lubrication) Lower side on assembly Mounting position of the reduction gear (do not specify when ordering versions VSS and VSL)...

CF4 GLOBOIDAL INDEXING DRIVESTABLE OF DYNAMIC CAPACITIES CF4CODE

CF4 GLOBOIDAL INDEXING DRIVESTABLE OF DYNAMIC CAPACITIES Series

CF4 GLOBOIDAL INDEXING DRIVESTABLE OF DYNAMIC CAPACITIES CF4CODE

CF4 GLOBOIDAL INDEXING DRIVESTABLE OF DYNAMIC CAPACITIES CF4CODE

CF4 GLOBOIDAL INDEXING DRIVESTABLE OF DYNAMIC CAPACITIES CF4CODE
