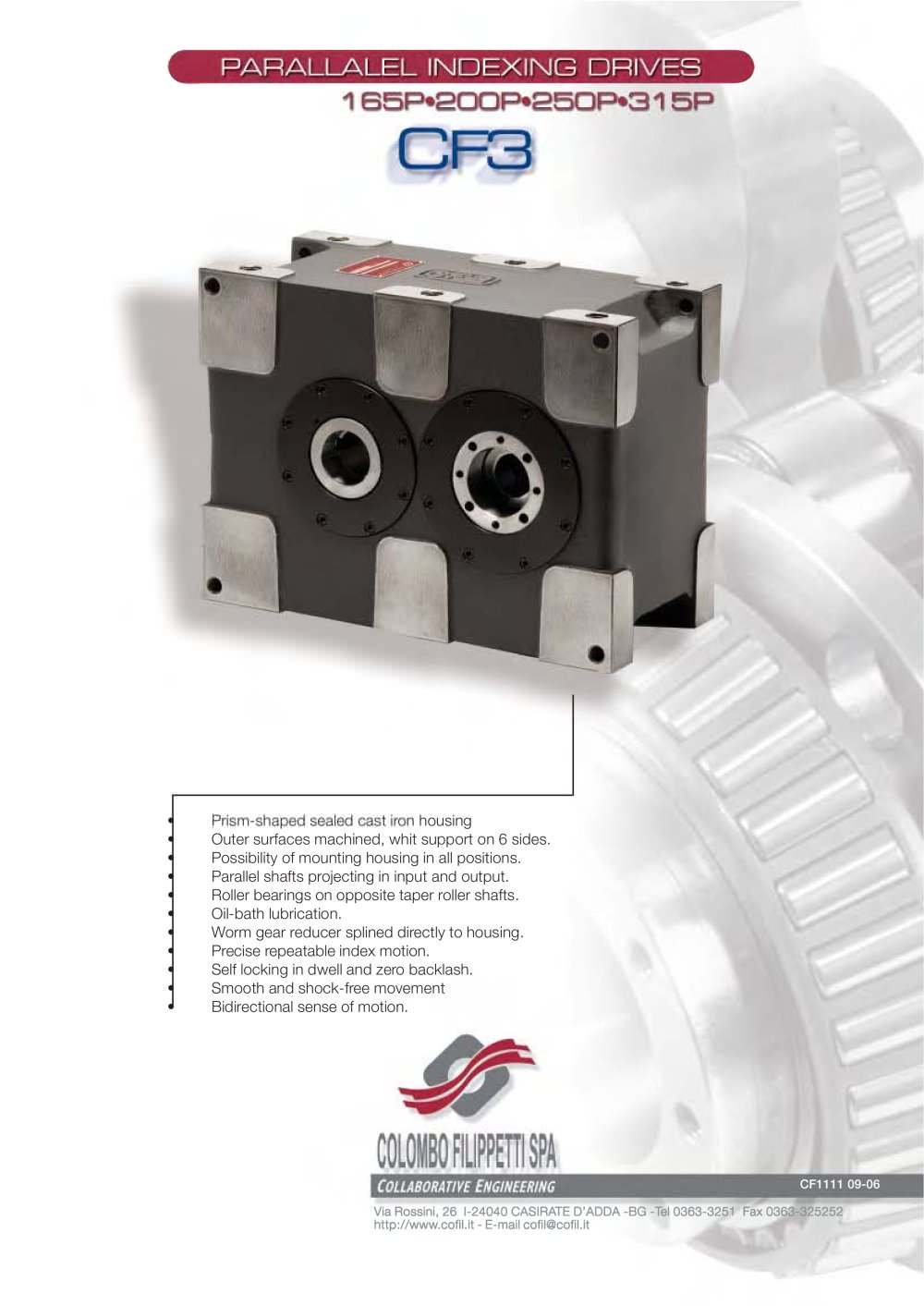

Colombo Filippetti - Index Drives - CF3 Heavy Series

Colombo Filippetti - Index Drives - CF3 Heavy Series
9Pages

Catalog excerpts

Colombo Filippetti - Index Drives - CF3 Heavy Series - 3

Index Number Index Static Dynamic output torque Velocity Accele- Input drive of period Torque Mu [daN m] factor ration torque code stops B Ms Indexes/min. factor factor S S [deg] [daN m] 25 50 75 100 150 200 Cv Ca Kj 165P-1-300 109 97 96 88 80 70 64 200P-1-300 >

Open the catalog to page 3

Colombo Filippetti - Index Drives - CF3 Heavy Series - 4

Index Number Index Static Dynamic output torque Velocity Accele- Input drive of period Torque M Mu [ daN m ] factor ration torque code Stops B Ms Indexes/min. factor factor S [ de g] [ daN m ] 25 50 75 100 150 200 Cv Ca K j 165P-4-90 89 87 87 86 85 83 79 200P-4-90 >

Open the catalog to page 4

Colombo Filippetti - Index Drives - CF3 Heavy Series - 5

Index Number Index Static Dynamic output torque Velocity Accele- Input drive of period Torque Mu [daN m] factor ration torque code Stops B Ms Indexes/min. factor factor S [deg] [daN m] 25 50 75 100 150 200 Cv Ca Kj 165P-8-120 89 89 89 88 87 84 80 200P-8-120 >

Open the catalog to page 5

Colombo Filippetti - Index Drives - CF3 Heavy Series - 6

DRIVE COMPONENTS - Parallel shaft. - Separate and pre-coupled cam/follower units. - Cam hub with hollow shaft and keyway. - High-strength alloy steel cams with hardened, ground profiles. - Dial plate with central clearance hole and flage mount on each side. - High load capacity with special yoke-mounted cam followers. Fig.1a > A B M O T The 1/2/3/4-stops CF3 INDEX DRIVES with complete (360) input shaft rotation produce 1 cycle (transfer + dwell) of the output shaft. This means that 50 rpm of the input shaft produce 50 indexes/min in output. > N J OutputShaft P I DIN 6885 Bl.2 fig.1b E D...

Open the catalog to page 6

Colombo Filippetti - Index Drives - CF3 Heavy Series - 9

? The characteristic shape of the housing allows it to be mounted in all positions. On placing the order, please specify: - on which side of the housing the mounting holes should be drilled - on which side (A or B) the output shaft should project in the optional version. Օ If the mounting position is not specified, the INDEX DRIVE will be supplied for mounting in position MA, whit mounting holes on side F and optional output on side A. a 125 150 170 240 b 75 90 100 130 c 100 130 160 230 d 53 63 63 68 e 170 210 260 330 MA MC ME MG MB MD MF MH > For mechanisms running at less than 30...
