SEFCO® F2 Pin Safety Clutches Adjustment Guide

Introduction: This document provides detailed instructions for adjusting SEFCO® F2 Pin Safety Clutches, manufactured by Colmant Cuvelier S.A. It includes specifications for different sizes and configurations of the clutches.

Adjustment Procedures:

Spring Washer Piling: Ensure the spring washers are piled according to the desired adjustment range. Sizes 00 to 5 can have single, double, or triple piling-up configurations.
Size 00: Use a dynamometric key and tighten the nut with an HN 4 slotted key.
Sizes 0 to 5: Insert the braking washer, hand-tighten the adjustment nut, and align the slot with the box engravings. Use the table to determine the number of divisions for the desired torque and tighten the nut accordingly.
Sizes 3 to 5: Use dimensions A and B from the table to achieve the desired torque. Tighten the special nut to dimension A and screws to dimension B, then secure with a lock nut.
Size 6: Loosen all screws, use the table to find dimension X, tighten the nut to X, and then tighten all screws flush with the nut face.

Adjustment Values:

Torque and Divisions: The document provides tables with torque values (Nm) and corresponding division numbers for each size and piling-up configuration. For example, Size 0 single piling-up has torque values of 6, 9, and 16 Nm with divisions of 2, 3, and 5 respectively.
Dimensions A and B: For sizes 3 to 5, dimensions A and B are provided to achieve specific torque values. For instance, Size 3 triple piling-up has dimension A ranging from 11.4 mm to 9.9 mm and dimension B consistently at 8 mm.
Dimension X for Size 6: Dimension X varies from 13.5 mm to 10.6 mm for single piling-up and from 11.3 mm to 9.8 mm for double piling-up, corresponding to torque values from 300 Nm to 2280 Nm.

Conclusion: This guide provides comprehensive instructions for adjusting SEFCO® F2 Pin Safety Clutches, ensuring precise torque settings through detailed procedures and tables for various sizes and configurations.

Catalog excerpts

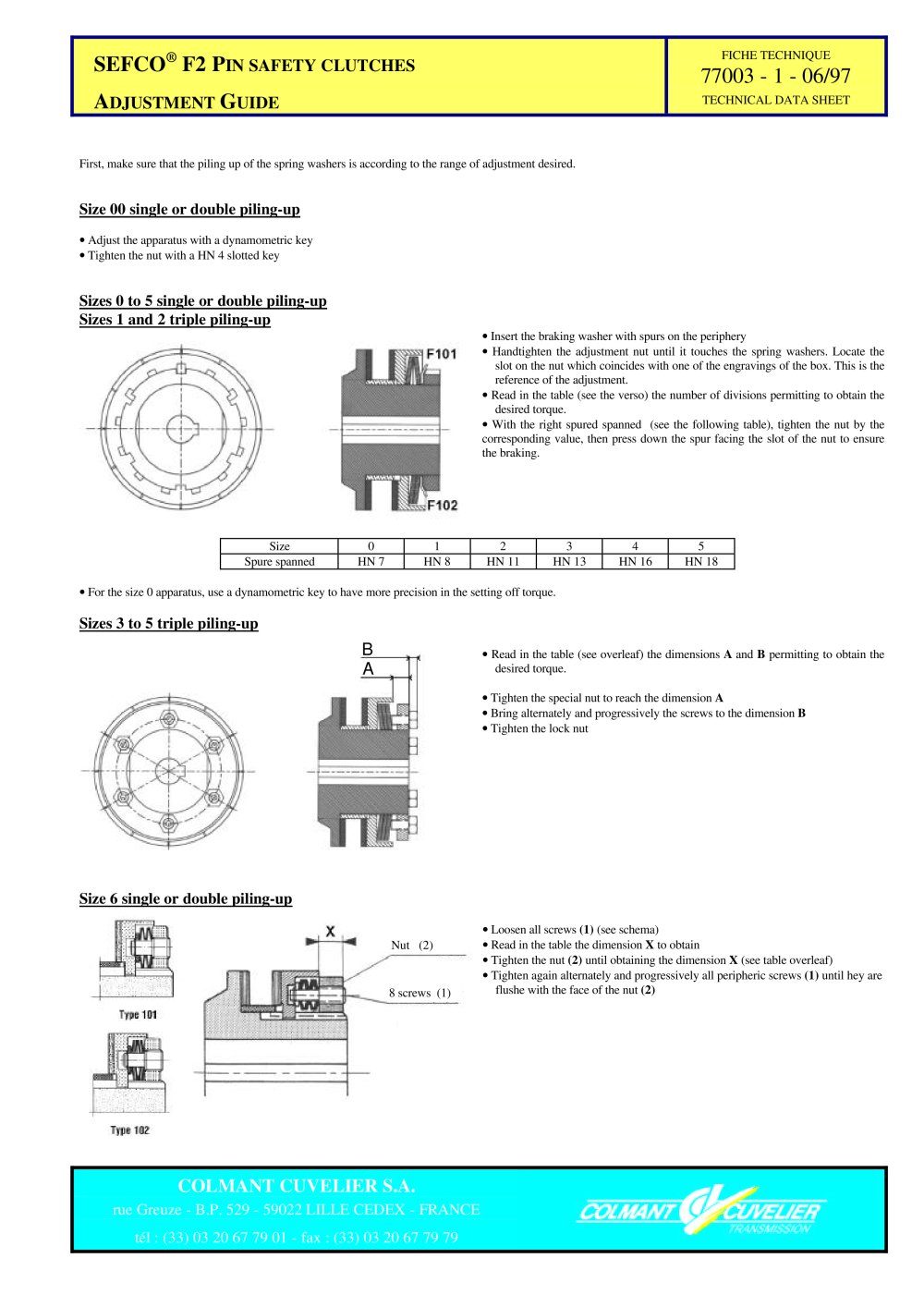

SEFCO F2 Pin safety clutches Adjustment guide-1

TECHNICAL DATA SHEET First, make sure that the piling up of the spring washers is according to the range of adjustment desired. > ? Adjust the apparatus with a dynamometric key ? Tighten the nut with a HN 4 slotted key > ? Insert the braking washer with spurs on the periphery ? Handtighten the adjustment nut until it touches the spring washers. Locate theslot on the nut which coincides with one of the engravings of the box. This is the reference of the adjustment. ? Read in the table (see the verso) the number of divisions permitting to obtain thedesired torque. ? With the right spured spanned (see the following table), tighten the nut by thecorresponding value, then press down the spur facing the slot of the nut to ensure the braking.Size012345 Spure spannedHN 7HN 8HN 11HN 13HN 16HN 18 ? For the size 0 apparatus, use a dynamometric key to have more precision in the setting off torque. > ? Read in the table (see overleaf) the dimensions A and B permitting to obtain thedesired torque. > ? Tighten the special nut to reach the dimension A ? Bring alternately and progressively the screws to the dimension B ? Tighten the lock nut > ? Loosen all screws (1) (see schema) Nut (2) ? Read in the table the dimension X to obtain ? Tighten the nut (2) until obtaining the dimension X (see table overleaf) ? Tighten again alternately and progressively all peripheric screws (1) until hey areflushe with the face of the nut 8 screws (1) (2) >

Open the catalog to page 1

SEFCO F2 Pin safety clutches Adjustment guide-2

TECHNICAL DATA SHEET >

Open the catalog to page 2
