HTB Timing Pulleys VECOBLOC "SC" Pitch 8m

Product catalog summary

Overview: The document is a technical data sheet for HTB Timing Pulleys VECOBLOC SC with a pitch of 8M, produced by Colmant Cuvelier S.A. It provides detailed specifications and dimensional features for various types of pulleys.

Types of Pulleys: The document categorizes pulleys into three main types: Block pulleys (Type 1, 2, and 4), Web pulleys (Type 5 and 6), and Spoked pulleys (Type 6 and 7).

Material and Protection: The pulleys are made from cast iron FGL 250 or FGS 400 and are protected by phosphatation or black paint.

Design Features: The new design includes a double cone, allowing installation in both directions. A standard taper-bush can be used, and space for installation (dimension X) should be forecasted.

Dimensional Specifications: The document provides detailed tables listing the specifications for different pulley models, including the number of teeth, pitch, weight, and various dimensional parameters such as pitch diameter, type, taper-bush compatibility, and installation length.

Key Parameters: Each pulley model is identified by a code, and key parameters include the pitch diameter, outside diameter, and weight. The tables also specify the installation length for the Vecobloc SC bush.

Installation Considerations: The document emphasizes the need for space during installation and the compatibility with standard taper-bushes.

Catalog excerpts

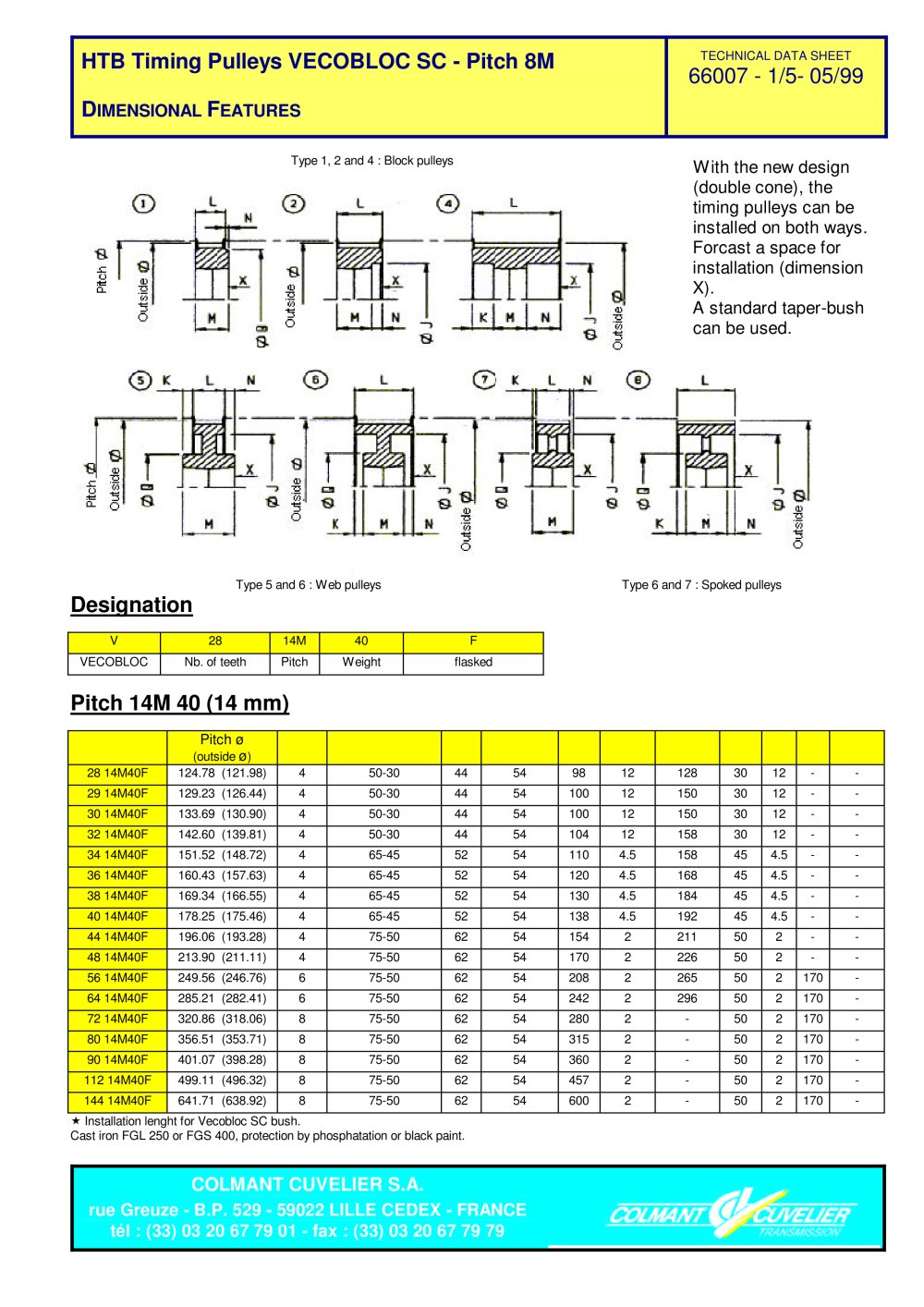

HTB Timing Pulleys VECOBLOC "SC" Pitch 8m-1
