Double cone sprockets VECOBLOC "SC" Pitch 15.87 (5/8")

Product catalog summary

Overview: This technical document provides specifications and features of the DOUBLE CONE SPROCKETS VECOBLOC® SC with a pitch of 15.87 mm (5/8’’), manufactured by COLMANT CUVELIER S.A.

Specifications:

Pitch: 15.87 mm (5/8’’)
Roller Diameter: 10.16 mm
Inside Width: 9.65 mm
Material: Steel XC 38
Standard: NF E 26102
Chain Compatibility: British standard chain type B

Corrosion Protection:

Bichromate coating up to 40 teeth
Resists 200 hours in salt spray
Food compatible

Design Features:

Double cone design allows SC bush installation on both sides.
Requires a minimum X distance for SC bush installation.
Standard taper-bush can be fitted both ways.

Technical Data: The document includes a detailed table listing the number of teeth, external diameter, and specifications for different types of sprockets (Type 1, Type 2, Type 4, Type 8) with various bush types and dimensions.

Catalog excerpts

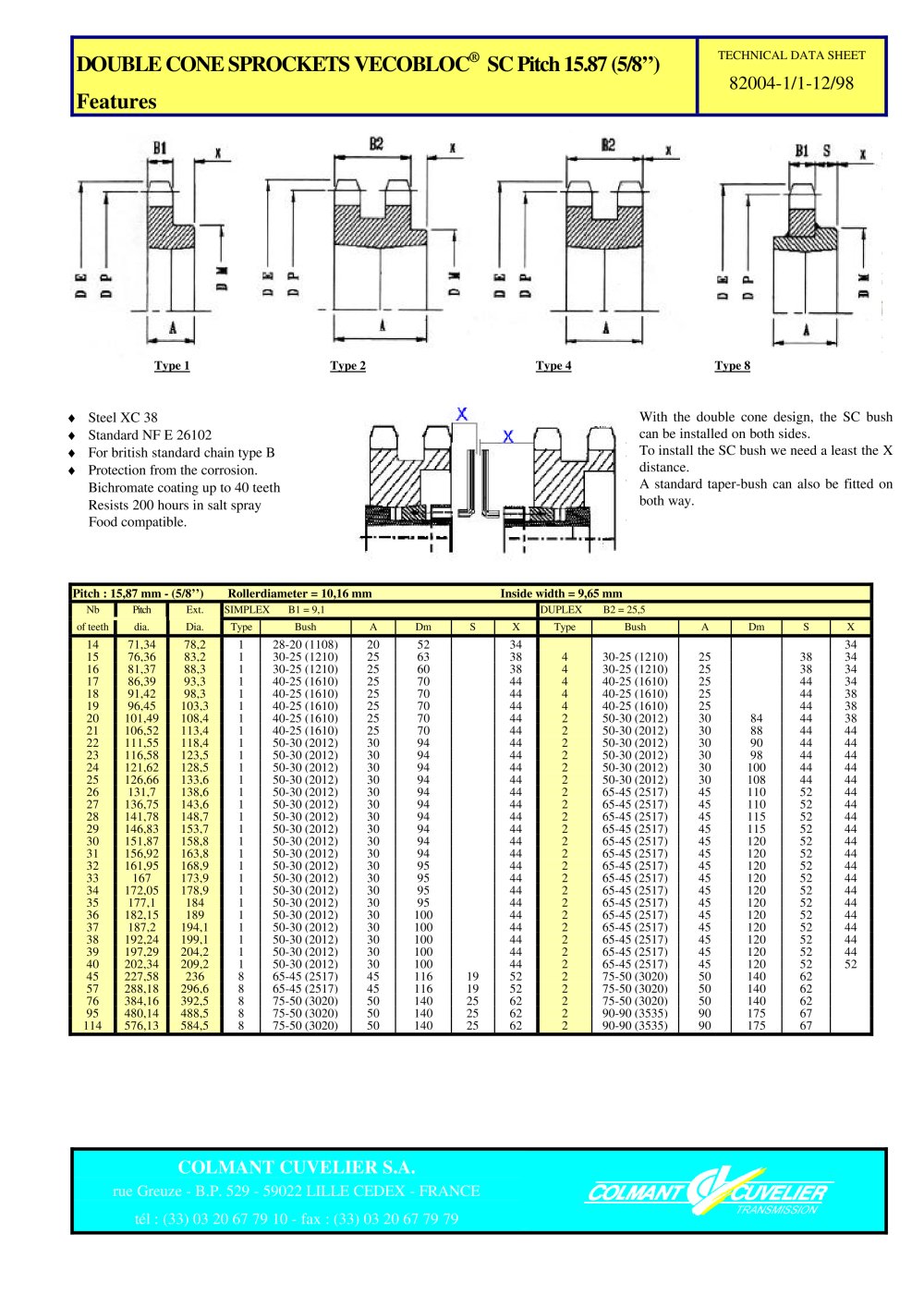

Double cone sprockets VECOBLOC "SC" Pitch 15.87 (5/8")-1

TECHNICAL DATA SHEET > Type 1Type 2 Type 4 Type 8 >
