Standard ventilation components round

Product catalog summary

Overview: The document from COLASIT AG outlines specifications for standard round ventilation components, focusing on dimensional drawings and material specifications for components used in ventilation systems.

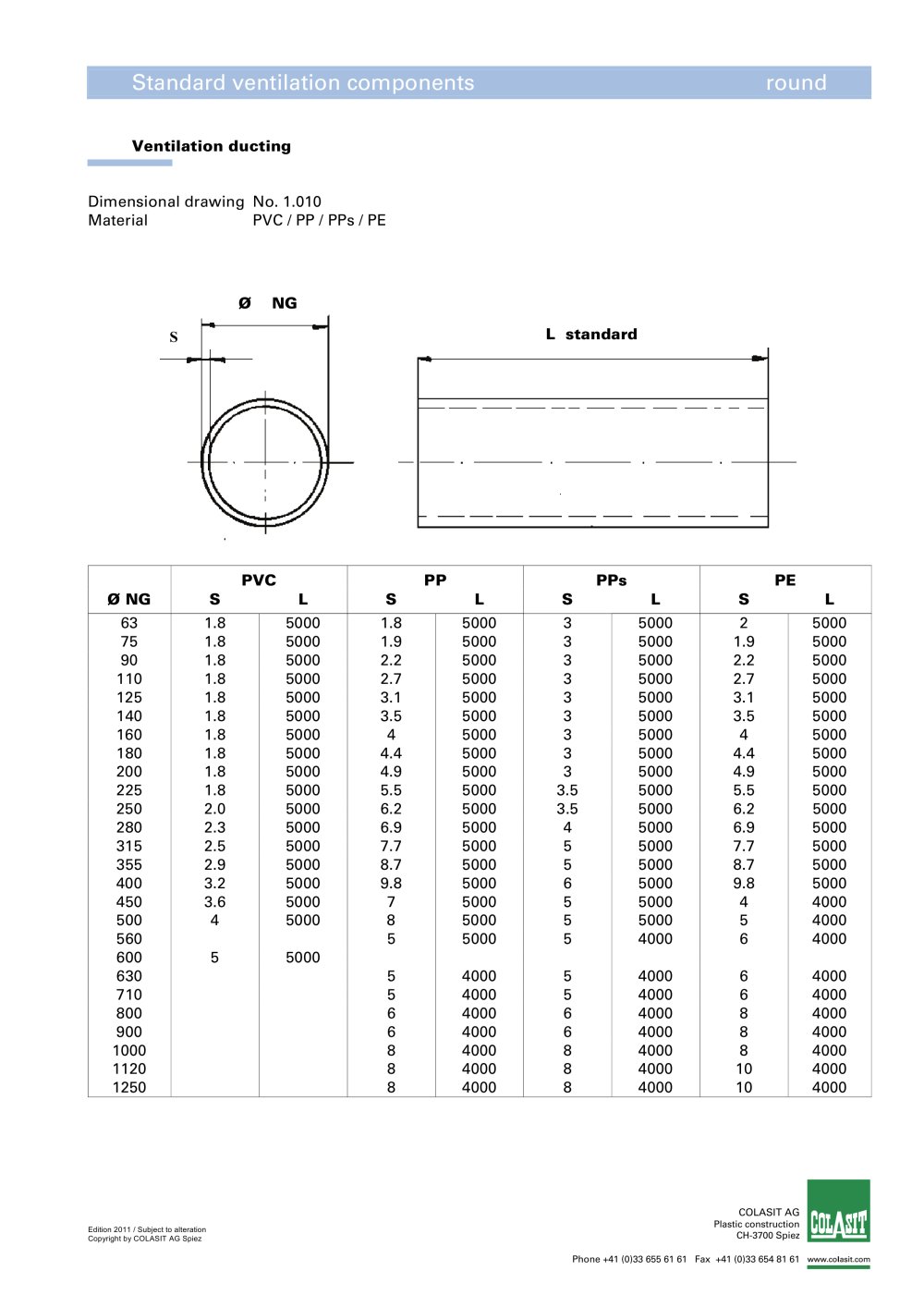

Ventilation Ducting: Specifications include dimensions for ducting made from PVC, PP, PPs, and PE, detailing diameter (Ø NG), wall thickness (S), and standard length (L) with diameters from 63 to 1250 mm.

90°/45° “Beck” Bends: Dimensions for these bends in PVC and other materials are provided, including radius (R), lengths (L1, L2), and segment lengths for both 90° and 45° bends.

90°/45° Duct-Segment Bends: Specifications cover dimensions for bends made from PVC, PP, PPs, and PE, focusing on segment lengths and wall thicknesses.

Y-Connecting Pieces: Dimensions for 90° and 45° Y-connecting pieces are detailed, including radius (R), lengths (L1, L2, L3), and wall thickness (S).

T-Pieces: Specifications for 90° symmetrical and 45° T-pieces are included, with dimensions for various diameters and materials.

Branch Saddles: Details for 90° and 45° branch saddles are provided, with diameters from 63 to 1250 mm, using materials like PVC, PP, PPs, and PE.

Couplers and Flanges: Specifications for round couplers, “Beck” double couplers, and round flanges are included, with detailed dimensions and material options.

End Caps and Taper Pieces: Specifications for these components are provided, detailing dimensions and material types.

Additional Components: The document also covers pipe clips, fixing plates, corrugated sleeves, and rain covers, with specifications for each type.

Materials and Standards: Emphasis is placed on materials like PVC, PP, PPs, and PE, with specifications subject to alteration and adherence to COLASIT standards.

Standard Ventilation Components - Round Collarette: The document provides dimensional specifications for round collarettes made from PVC, PP, PPs, and PE, listing nominal width (Ø NW), outer diameter (Ø D), and length (L) for various sizes.

Catalog excerpts

COLASIT AG Plastic construction CH-3700 Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61 Edition 2011 / Subject to alteration Copyright by COLASIT AG Spiez Standard ventilation components round 90° Branch saddle Diameter 63, 75, 90, 110, 125,140,160,180, 200, 225, 250, 280, 315, 355, 400, 450, 500, 560, 600, 630, 710, 800, 900, 1000, 1120, 1250 Material PVC / PP / PPs / PE / PPs-el L = according to specification Ø ducting = according to specification

Open the catalog to page 9

Standard ventilation components round-10

COLASIT AG Plastic construction CH-3700 Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61 Edition 2011 / Subject to alteration Copyright by COLASIT AG Spiez Standard ventilation components round 45° Branch saddle Diameter 63, 75, 90, 110, 125,140,160,180, 200, 225, 250, 280, 315, 355, 400, 450, 500, 560, 600, 630, 710, 800, 900, 1000, 1120, 1250 Material PVC / PP / PPs / PE L = according to specification Ø ducting = according to specification

Open the catalog to page 10

Standard ventilation components round-19

COLASIT AG Plastic construction CH-3700 Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61 Edition 2011 / Subject to alteration Copyright by COLASIT AG Spiez Standard ventilation components round Pipe clip and fixing plate with ¾” sleeve Dimensional drawing No. 1.030 Material Steel, galvanised or stainless * available Ø NG Galvanised steel Stainless steel A2 Vibration absorber, galvanised ¾” sleeve 110 * * * * 125 * * * * 140 * * * * 160 * * * * 180 * * * * 200 * * * * 225 * * * * 250 * * * * 280 * * * * 315 * * * * 355 * * * * 400 * * * * 450 * * * * 500 * * * * 560 * * * * 630 * * * *...

Open the catalog to page 19

Standard ventilation components round-20

COLASIT AG Plastic construction CH-3700 Spiez Phone +41 (0)33 655 61 61 Fax +41 (0)33 654 81 61 Edition 2011 / Subject to alteration Copyright by COLASIT AG Spiez Standard ventilation components round Corrugated-sleeve, “Beck“ type II Dimensional drawing No. 1.023 Material soft PVC Ø NG 110 125 140 160 180 200 225 250 280 315 355 400

Open the catalog to page 20
