Small radial fan CKV 75

Product catalog summary

Overview: The document provides technical specifications and features of the CKV 75 small radial fan made of plastic, designed for direct drive applications.

Performance Specifications:

Flow Rate: Ranges from a minimum of 40 m³/h to a maximum of 240 m³/h.
Static Pressure: Ranges from a minimum of 35 Pa to a maximum of 450 Pa.
Efficiency: Maximum efficiency is 75%.
Inlet/Outlet Diameter: 75 mm.

Construction Details:

Housing: Made from self-supporting thermoformed plastic, available in PPs.
Impeller: Features 20 injection-moulded blades with torque transmission via an aluminium hub covered with plastic. It includes an adaptor for easy mounting and is available in PPs.

Drive and Motor:

Direct Drive: The impeller is directly mounted to the motor shaft.
Motor: Three-phase motor, available in one or multi-stage configurations, with a flange motor design.

Accessories:

PVC sleeve with stainless fixing bands.
Frequency converter available in IP 66, IP 54, and IP 20.
Dimensionally stable console, powder-coated.

Additional Information:

Edition: 2008
Subject to alteration.
Copyright by COLASIT AG Spiez.

Catalog excerpts

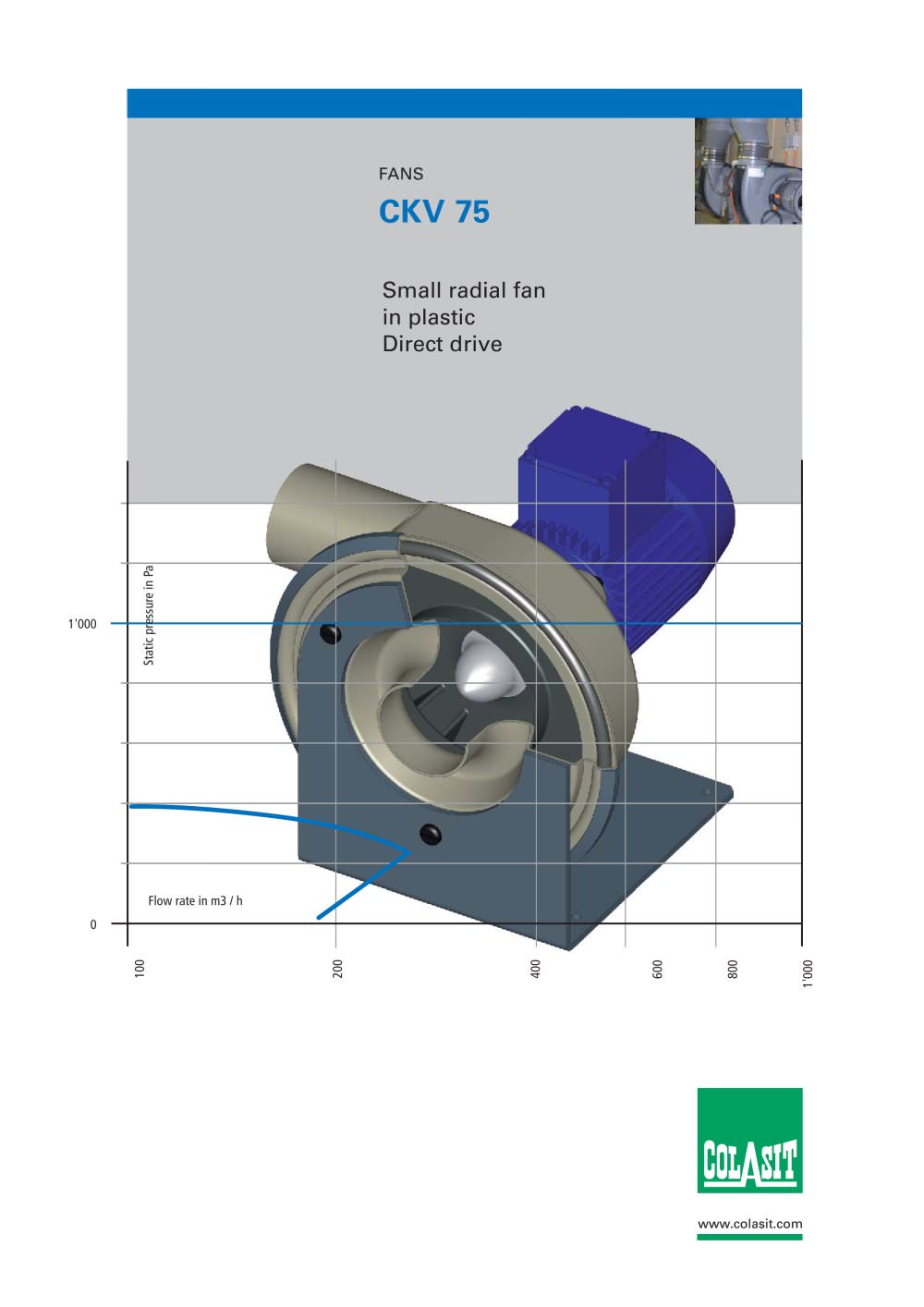

FANS CKV 75 Small radial fan in plastic Direct drive 1'000 0 100 200 400 600 800 1'000 an Static pressure in Pa Flow rate in m3 / h

Open the catalog to page 1

Small radial fan in plastic CKV 75 Performance Flow rate: min. 40m3/h to max. 240 m3/h Static pressure: min. 35 Pa to max. 450 Pa Efficiency: max. 75 % Inlet / Outlet-Ø: 75mm Housing - Self-supporting plastic construction - Thermoformed - available in: PPs Impeller - Injection-moulded - 20 blades - Torque transmission achieved by an aluminium hub, covered with plastic - Adaptor for easy impeller mounting - available in: PPs Drive Direct drive: - Impeller is mounted directly to the motor shaft Motor: - Three-phase motor - one / multi-stage - Flange motor Accessories - PVC sleeve with fixing bands,...

Open the catalog to page 2
