Small compact fan CCV 75

Product catalog summary

Specifications:
The CCV 75 is a small, compact fan made of plastic with a direct drive system. It features a performance flow rate ranging from a minimum of 80 m3/h to a maximum of 340 m3/h, and a static pressure from 100 Pa to 800 Pa. The fan's efficiency can reach up to 75%. The inlet and outlet diameter is 75mm.

Housing:
The fan's housing is a self-supporting plastic construction, thermoformed, and available in PPs and PPs-el materials.

Impeller:
The impeller is injection-moulded with 20 blades and uses an aluminium hub covered with plastic for transmission. It includes an adaptor for easy torque transmission and moulding, available in PPs and PP-el.

Drive:
The fan uses a direct drive system with the impeller mounted directly to the motor shaft. It is equipped with standard three-phase motors, which can be one or multi-stage, and can be foot- or flange-mounted.

EX-Protection:
The fan is constructed in compliance with ATEX standards and is available for zone 1 and 2.

Accessories:
Accessories include motor-mounted options with IP 66, IP 54, or IP 20 protection, and support in stainless steel.

Additional Information:
A hub seal is available upon request. The document is from the 2008 edition and is subject to alteration. Copyright by COLASIT AG Spiez.

Catalog excerpts

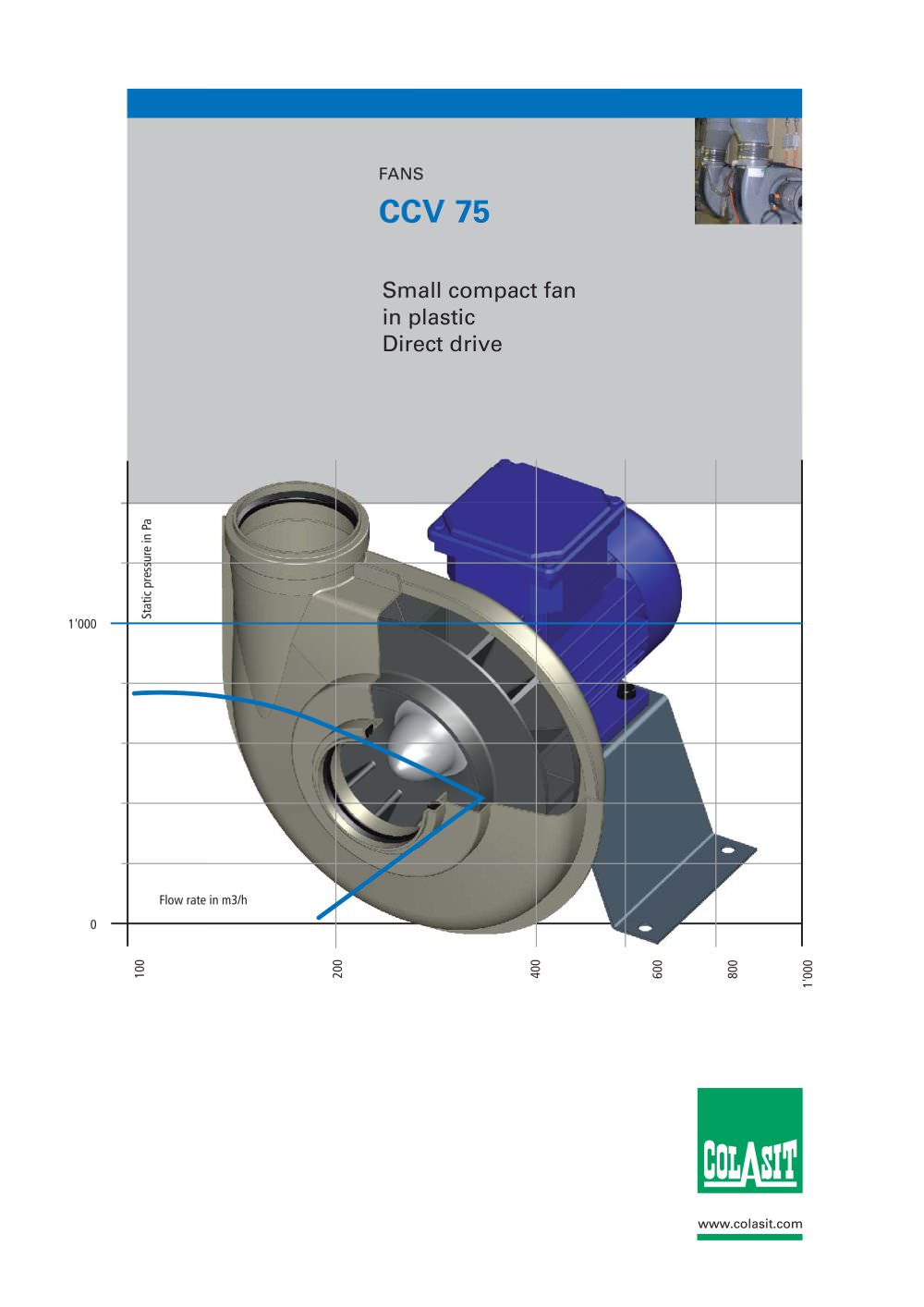

FANS CCV 75 Small compact fan in plastic Direct drive 1'000 0 100 Static pressure in Pa 200 400 600 800 1'000 Flow rate in m3/h ct

Open the catalog to page 1

Small compact fan in plastic CCV 75 Performance Flow rate: min. 80m3/h to max. 340 m3/h Static pressure: min. 100 Pa to max. 800 Pa Efficiency: max. 75 % Inlet / Outlet Ø: 75mm Housing - Self-supporting plastic construction - Thermoformed - Available in: PPs, PPs-el Impeller - Injection-moulded - 20 blades - Transmission achieved by an aluminium hub, covered with plastic - Adaptor for easy torque transmission + moulding - Available: PPs, PP-el Drive Direct drive: - Impeller mounted directly to the motor shaft Motor: - Standard three-phase motors - one / multi-stage - Foot- / flange motors EX-Protection...
