Medium pressure radial fan CMVeco 125 - 400

Product catalog summary

Overview: The CMVeco 125-400 is a medium pressure radial fan made of plastic, suitable for various industrial applications. It offers both direct and V-belt drive options.

Performance Specifications:

Flow Rate: Ranges from 200 m³/h to 13,000 m³/h.
Static Pressure: Between 100 Pa and 2,600 Pa.
Efficiency: Up to 75%.
Inlet/Outlet Diameters: Available in 125, 160, 200, 250, 315, and 400 mm.

Housing:

Self-supporting thermoformed design available in materials such as PPs, PPs white, PPs-el, PE, PVC, and PVDF.
Six different outlet positions.

Impeller:

Injection-molded with 20 forward-curved blades.
Features an aluminum hub covered with plastic for torque transmission.
Available in PPs, PPs-el, and PVDF.

Support and Drive:

Direct Drive: Impeller mounted directly on the motor shaft.
V-Belt Drive: Power transmitted via a v-belt with a simple tensioning system.
Motor: Three-phase, available in one or multi-stage, with flange or foot mounting options.

EX-Protection: Constructed for ATEX zones 1 and 2.

Hub Seal: Includes standard hub seals, V-Ring-seals, and back plates.

Accessories:

PVC sleeve with fixing bands.
Drain and vibration absorber for ground or ceiling installation.
Connection pieces, ceiling or wall brackets, and splinter protection.
Motor and v-belt covers for outdoor installation.
Frequency converters available in IP 66, IP 54, and IP 20.

Additional Information: The document is from the 2009 edition and is subject to alterations. Copyright by COLASIT AG Spiez.

Catalog excerpts

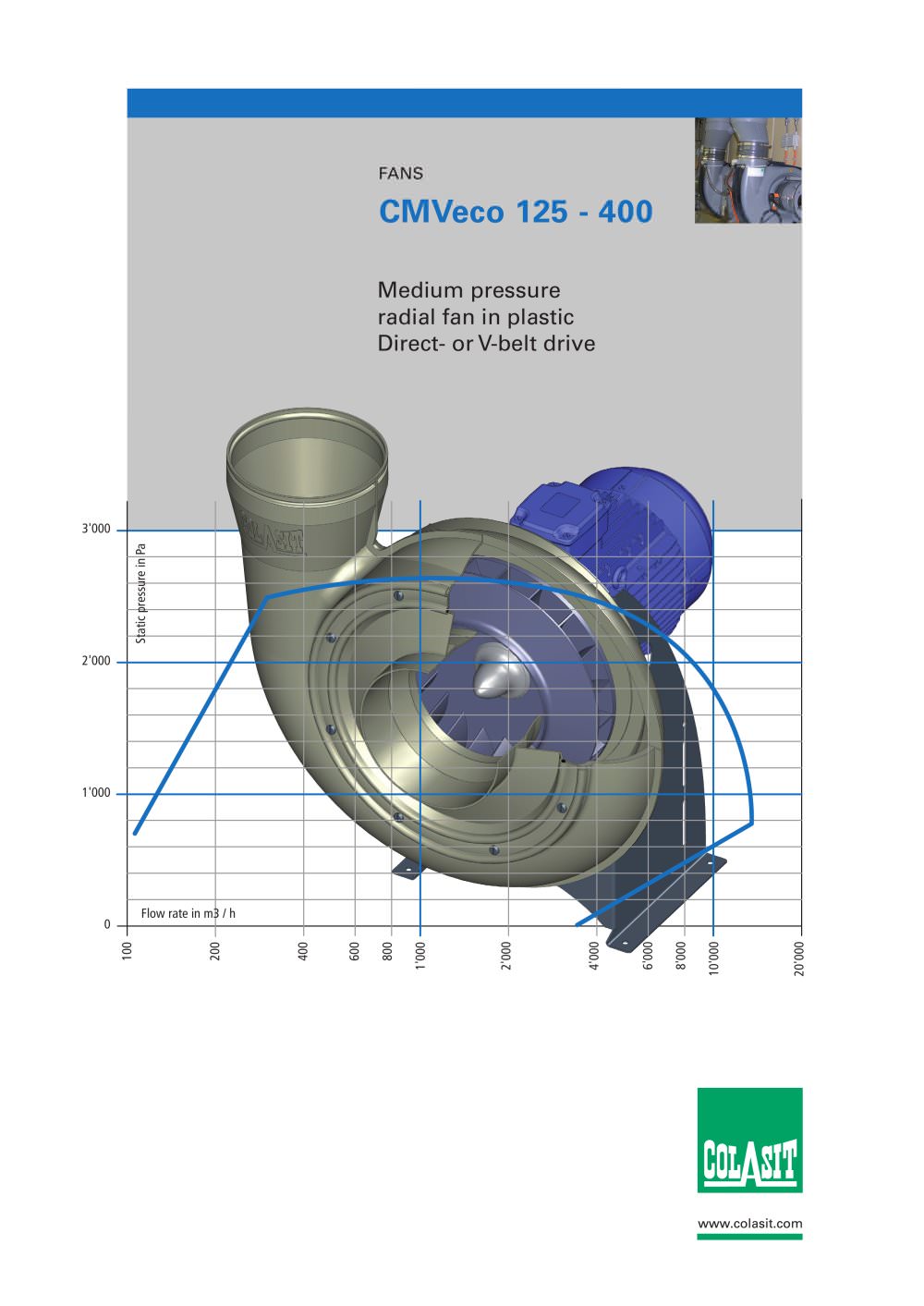

Medium pressure radial fan CMVeco 125 - 400-1

CMVeco 125 - 400 FANS Medium pressure radial fan in plastic Direct- or V-belt drive 3'000 2'000 1'000 0 100 200 400 600 800 1'000 2'000 4'000 6'000 8'000 10'000 20'000 Static pressure in Pa Flow rate in m3 / h

Open the catalog to page 1

Medium pressure radial fan CMVeco 125 - 400-2

Medium pressure radial fan in plastic CMVeco 125 – 400 Performance Flow rate: min. 200m3/h to max. 13'000 m3/h Static pressure: min. 100 Pa to max. 2'600 Pa Efficiency: max. 75 % Inlet / Outlet-Ø: 125, 160, 200, 250, 315, 400 mm Housing - Self-supporting design - Thermoformed (Twin-Sheet) - Available in: PPs, PPs white, PPs-el, PE, PVC, PVDF - 6 different outlet positions Impeller - Injection-molded - 20 forward-curved streamlined blades - Torque transmission achieved by aluminium hub, covered with plastic - Adaptor for easy impeller mounting - Available in: PPs, PPs-el, PVDF Support Direct and...

Open the catalog to page 2
