Medium pressure radial fan CMV 450 - 1250

Product catalog summary

Overview: The CMV 450 - 1250 is a medium pressure radial fan made from plastic, suitable for both direct and V-belt drive systems. It is designed for industrial applications requiring efficient air movement.

Performance Specifications:

Flow Rate: Ranges from 3,000 m³/h to 130,000 m³/h.
Static Pressure: Between 300 Pa and 1,900 Pa.
Efficiency: Maximum of 70%.
Inlet Diameters: Available in sizes from 450 mm to 1250 mm.

Construction:

Housing: Made from self-supporting plastic, available in materials such as PP, PPs, PPs-el, PE, PVC, and PVDF, with six different outlet positions.
Impeller: Features 20 forward-curved blades, dynamically and statically balanced, available in PPs, PPs-el, and PVDF.
Support: Metal construction, galvanized or stainless steel, depending on the model size.

Drive Options:

Direct Drive: Impeller mounted directly on the motor shaft.
V-belt Drive: Power transmitted via V-belt, with heavy-duty bearings supporting the impeller shaft.
Motor: Three-phase, available in one or multi-stage configurations.

Safety and Protection:

EX-Protection: Models CMV 450 – 800 are ATEX certified for zones 1 and 2.
Hub Seal: Options include standard hub seals, lip seals, and sealing gas systems.

Accessories: Includes PVC sleeves, counterflanges, vibration absorbers, weather-proof motor covers, inspection holes, and frequency converters with various IP ratings.

Additional Information: The document notes that specifications are subject to change and are copyrighted by COLASIT AG Spiez, edition 2008.

Catalog excerpts

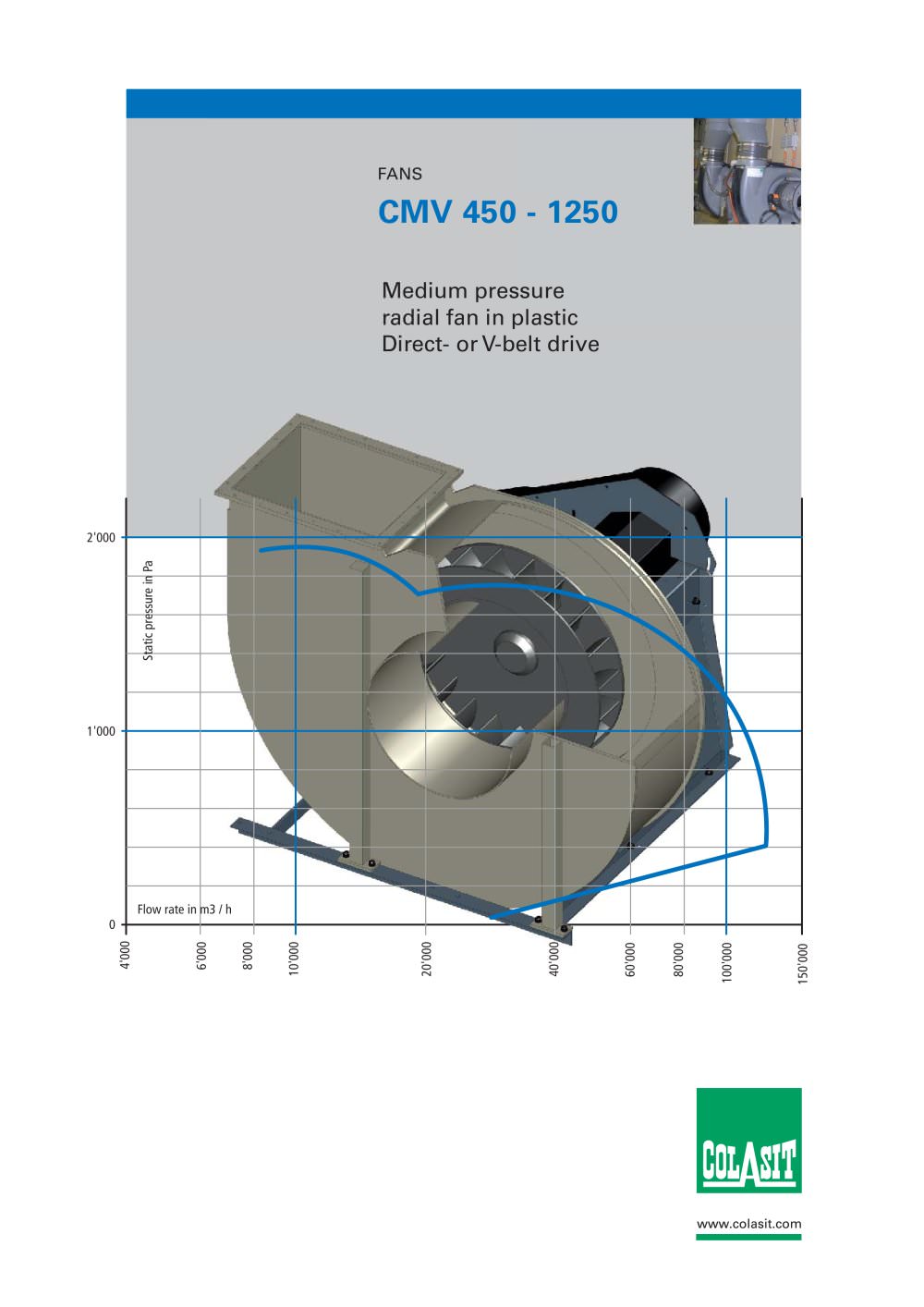

Medium pressure radial fan CMV 450 - 1250-1

FANS CMV 450 - 1250 Medium pressure radial fan in plastic Direct- or V-belt drive sure 4'000 6'000 8'000 10'000 20'000 40'000 60'000 80'000 100'000 2'000 1'000 0 150'000 Static pressure in Pa Flow rate in m3 / h

Open the catalog to page 1

Medium pressure radial fan CMV 450 - 1250-2

Medium pressure radial fan in plastic CMV 450 - 1250 Performance Flow rate: min. 3000 m3/h to max. 130'000 m3/h Static pressure: min. 300 Pa to max. 1'900 Pa Efficiency: max. 70 % Inlet-Ø: 450, 500, 560, 630, 710, 800, 900, 1000, 1120, 1250 mm Housing - Self-supporting plastic design, welded - Available in: PP, PPs, PPs-el, PE, PVC, PVDF - 6 different outlet positions Impeller - 20 forward-curved blades - Tested on an overspeed test stand - transmission via standard taper lock system - Balanced dynamically and statically in two ranges, balancing quality Q 6.3 - available in: PPs, PPs-el, PVDF...

Open the catalog to page 2
