Medium pressure radial fan CMMV 450 - 1250

Product catalog summary

Overview: The document provides technical specifications and features of the CMMV 450 - 1250 medium pressure radial fan made of plastic. It includes details on performance, construction, drive options, and additional accessories.

Specifications:

Performance: Flow rate ranges from 3,000 m3/h to 130,000 m3/h with static pressure between 300 Pa and 4,200 Pa. Maximum efficiency is 70%.
Inlet Diameter: Available in sizes from 450mm to 1250mm.

Construction:

Housing: Made from self-supporting plastic, available in materials like PP, PPs, PPs-el, PE, PVC, and PVDF, with six different outlet positions.
Impeller: Features 12 forward-curved blades, dynamically and statically balanced, available in PP, PPs-el, and PVDF.
Support: Sturdy metal construction, galvanized or stainless steel for models up to 800, and pot-galvanized profile construction for models 900 and higher.

Drive Options:

Direct Drive: Impeller mounted directly onto the motor shaft.
V-belt Drive: Power transmission via V-belt with heavy-duty self-aligning ball or roller bearings.
Motor: Three-phase motor, available in one or multi-stage, with foot motor design.

EX-Protection: Models CMMV 450 – 800 are available in ATEX for zone 1 + 2.

Hub Seal Options: Includes standard hub seals, lip seals (simple or double), back absorption, sealing gas, and back plates.

Accessories: Options include PVC sleeves, counterflange, drain, vibration absorber, splinter protection, weather-proof motor cover, inspection hole, and frequency converter with various IP ratings.

Additional Information: The document is from the 2008 edition and is subject to alterations. Copyright by COLASIT AG Spiez.

Catalog excerpts

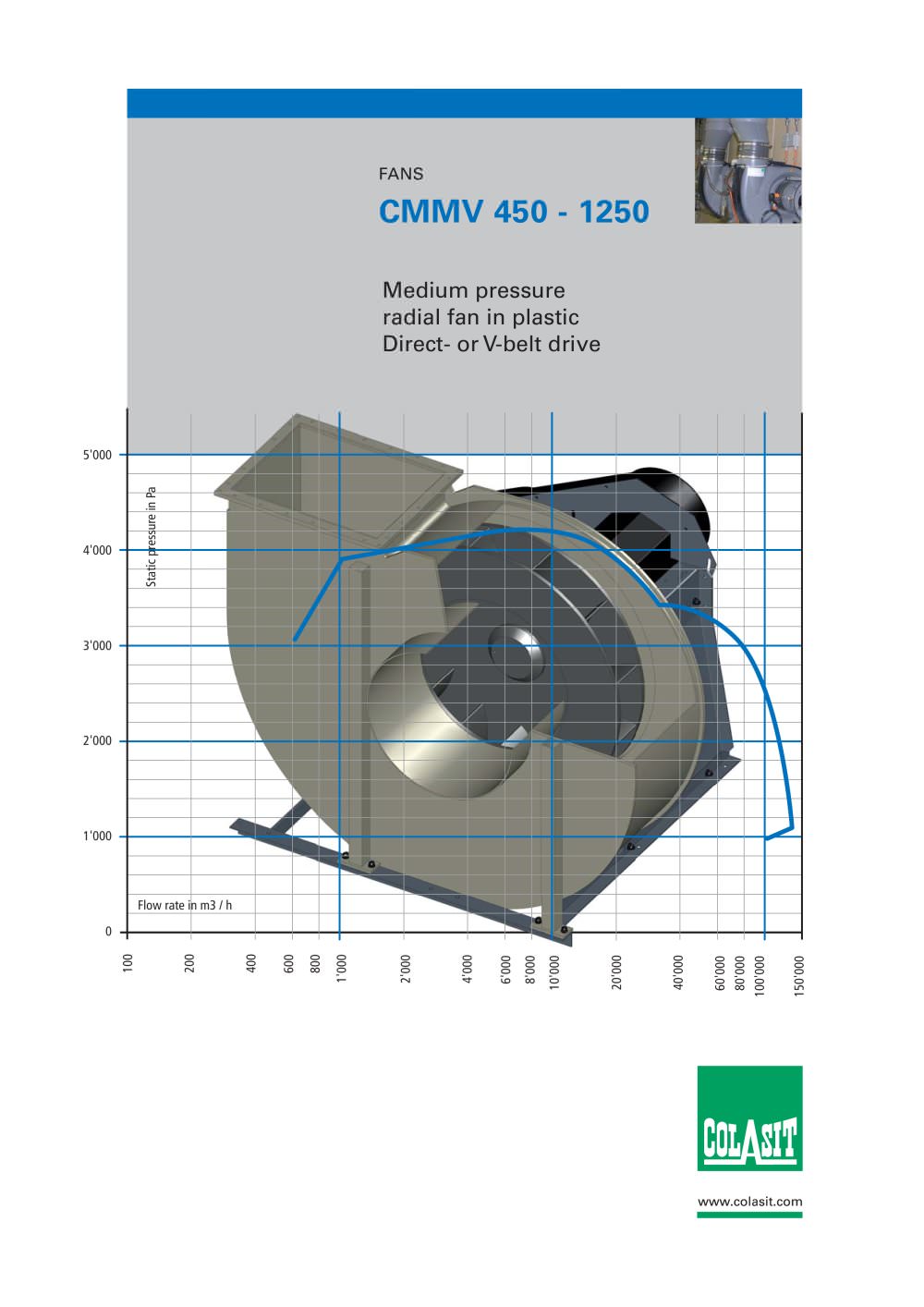

Medium pressure radial fan CMMV 450 - 1250-2

Medium pressure radial fan in plastic CMMV 450 - 1250 Performance Flow rate: min. 3000 m3/h to max. 130'000 m3/h Static pressure: min. 300 Pa to max. 4’200 Pa Efficiency: max. 70 % Inlet-Ø : 450, 500, 560, 630, 710, 800, 900, 1000, 1120, 1250mm Housing - Self-supporting plastic design, welded - Available in: PP, PPs, PPs-el, PE, PVC, PVDF - 6 different outlet positions Impeller - 12 forward curved blades - Tested on an overspeed test stand above nominal rate - Torque transmission via standard taper lock system - Balanced dynamically and statically in two ranges, balancing quality Q 6.3 - Available...
