High efficiency medium pressure radial fan CMHV 450 - 1250

Product catalog summary

Overview: The CMHV 450 - 1250 is a high-efficiency, medium-pressure radial fan made from plastic, suitable for both direct and V-belt drive systems. It is designed for industrial applications requiring robust performance and durability.

Performance Specifications:

Flow Rate: Ranges from a minimum of 2,900 m³/h to a maximum of 100,000 m³/h.
Static Pressure: Varies from 200 Pa to 3,000 Pa.
Efficiency: Maximum efficiency is 76%.
Inlet Diameters: Available in sizes ranging from 450 mm to 1250 mm.

Construction Details:

Housing: Made from self-supporting plastic, available in materials such as PP, PPs, PPs-el, PE, PVC, and PVDF, with six different outlet positions.
Impeller: Features a high-efficiency design with eight backward-curved blades, mechanically welded, and dynamically and statically balanced to quality Q 6.3. Available in PP-glass fibre reinforced material.
Support: Constructed from sturdy metal, galvanized or stainless steel, with hot-dip galvanized profile construction for sizes 900 and above.

Drive Options:

Direct Drive: Impeller mounted directly to the motor shaft.
V-belt Drive: Power transmitted via V-belt, with impeller shaft supported by heavy-duty self-aligning ball or roller bearings.
Motor: Three-phase motor, available in one or multi-stage configurations, with a foot motor design.

Sealing and Accessories:

Hub Seal: Includes standard hub seals, lip seals (simple or double), back absorption, sealing gas, and back plates.
Accessories: Options include PVC sleeves, counterflange, drain, vibration absorbers, splinter protection, weather-proof motor cover, inspection hole, and frequency converters with IP ratings of 66, 54, or 20.

Additional Information: The document is from the 2012 edition and is subject to alterations. All rights are reserved by COLASIT AG Spiez.

Catalog excerpts

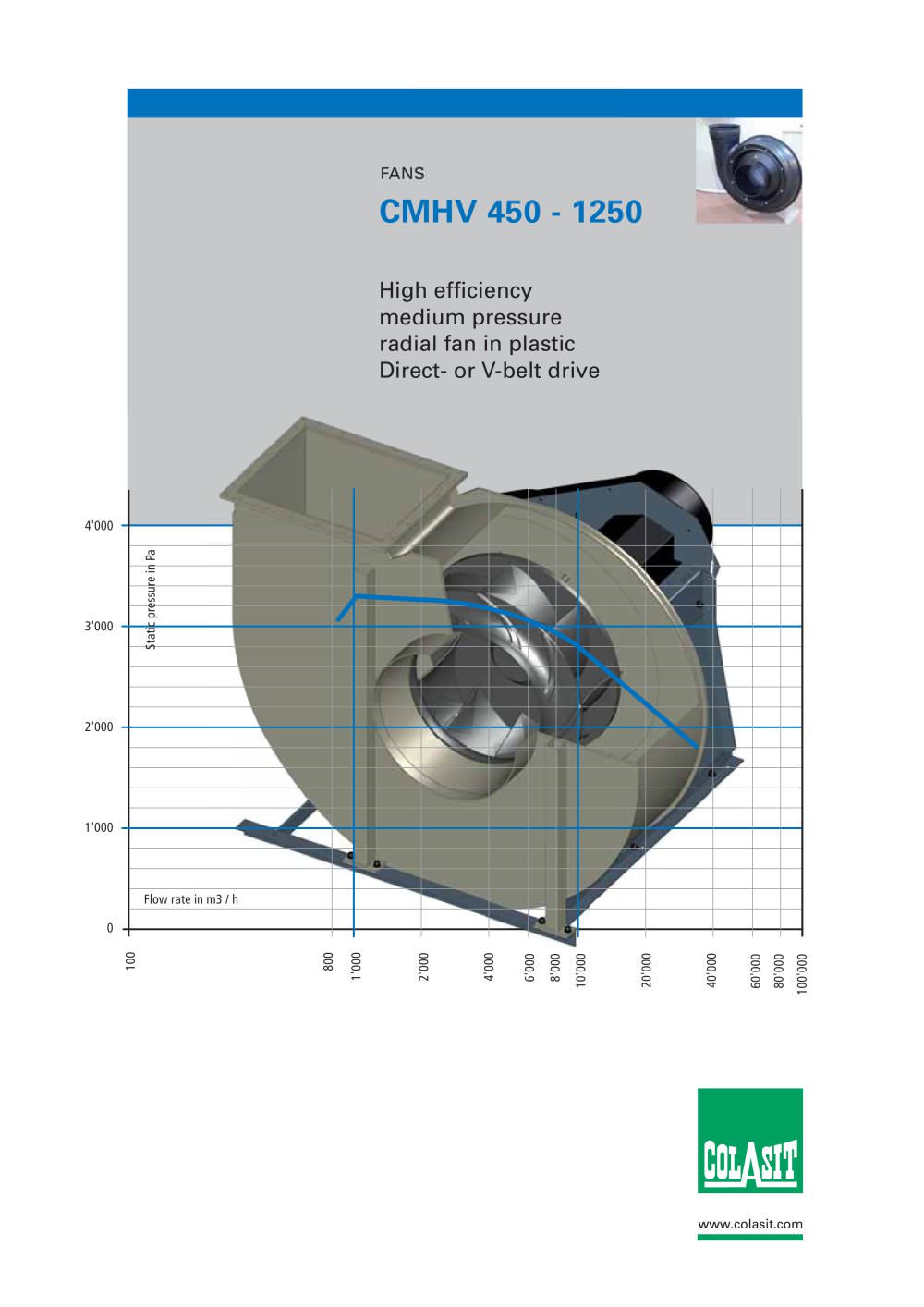

High efficiency medium pressure radial fan CMHV 450 - 1250-1

CMHV 450 - 1250 High efficiency medium pressure radial fan in plastic Direct- or V-belt drive

Open the catalog to page 1

High efficiency medium pressure radial fan CMHV 450 - 1250-2

High efficiency medium pressure radial fan in plastic Flow rate: Static pressure: Efficiency: Inlet-Ø: - Self-supporting plastic construction, welded - Available in: PP, PPs, PPs-el, PE, PVC, PVDF - 6 different outlet positions - High efficency impeller (Patent angemeldet) - 8 backward curved blades - Mechanically welded - Tested on overspeed test stand above nominal rate - Torque transmission via standard taper lock system - Balanced dynamically and statically in two ranges - Balancing quality Q 6.3 - Available in: PP-glass fibre reinforced - Sturdy metal construction up to size 800 - galvanized...

Open the catalog to page 2
