Cross flow scrubber RHE
Product catalog summary
Application
The Cross Flow Scrubber RHE in plastic is designed for the purification of highly polluted exhaust air with acidic or alkaline contamination. It is primarily used in industries such as food, pharmaceuticals, chemicals, biochemical, surface treatment, solar technology, semiconductor, clean rooms, waste management, sewage treatment, composting, and drying processes.
The Cross Flow Scrubber RHE in plastic is designed for the purification of highly polluted exhaust air with acidic or alkaline contamination. It is primarily used in industries such as food, pharmaceuticals, chemicals, biochemical, surface treatment, solar technology, semiconductor, clean rooms, waste management, sewage treatment, composting, and drying processes.
Principle
The scrubber operates by dosing a circulating washing fluid into the horizontal exhaust air flow. This process involves rinsing water-soluble impurities through the addition of alkalis or acids, with a tank provided for pollutant collection.
The scrubber operates by dosing a circulating washing fluid into the horizontal exhaust air flow. This process involves rinsing water-soluble impurities through the addition of alkalis or acids, with a tank provided for pollutant collection.
Features
- Efficiency: Up to 99%
- Air flow: Standard up to 45,000 m³/h, with higher volumes available on request
- Gas temperature range: -30 to +120 °C, depending on material
- Working pressure: +/- 1,500 Pa, depending on material
- Efficiency: Up to 99%
- Air flow: Standard up to 45,000 m³/h, with higher volumes available on request
- Gas temperature range: -30 to +120 °C, depending on material
- Working pressure: +/- 1,500 Pa, depending on material
Construction
The scrubber is constructed from corrosion-resistant plastics such as PP, PPs, PE, PVC, PVDF, and GFK. It includes a packing inside the column to ensure sufficient surface area between the gas and fluid phase, and a mist eliminator to prevent liquid discharge after the cleaning phase.
The scrubber is constructed from corrosion-resistant plastics such as PP, PPs, PE, PVC, PVDF, and GFK. It includes a packing inside the column to ensure sufficient surface area between the gas and fluid phase, and a mist eliminator to prevent liquid discharge after the cleaning phase.
EX-proof
The scrubber is available for ATEX zones 1 and 2, ensuring safety in explosive environments.
The scrubber is available for ATEX zones 1 and 2, ensuring safety in explosive environments.
Accessories / Options
- pH-reading and conductivity measuring
- Chemical dosing unit and dosing tank
- Automatic shedding of pollutants
- Outdoor installation capability
- Heating systems
- Sloping base
- pH-reading and conductivity measuring
- Chemical dosing unit and dosing tank
- Automatic shedding of pollutants
- Outdoor installation capability
- Heating systems
- Sloping base
Dimensioning
The scrubber can be individually dimensioned according to specific needs.
The scrubber can be individually dimensioned according to specific needs.
Version
This document refers to the 2009 version and is subject to change. Copyright by COLASIT AG Spiez.
This document refers to the 2009 version and is subject to change. Copyright by COLASIT AG Spiez.
See more
Catalog excerpts
DLASIT www.colasit.com

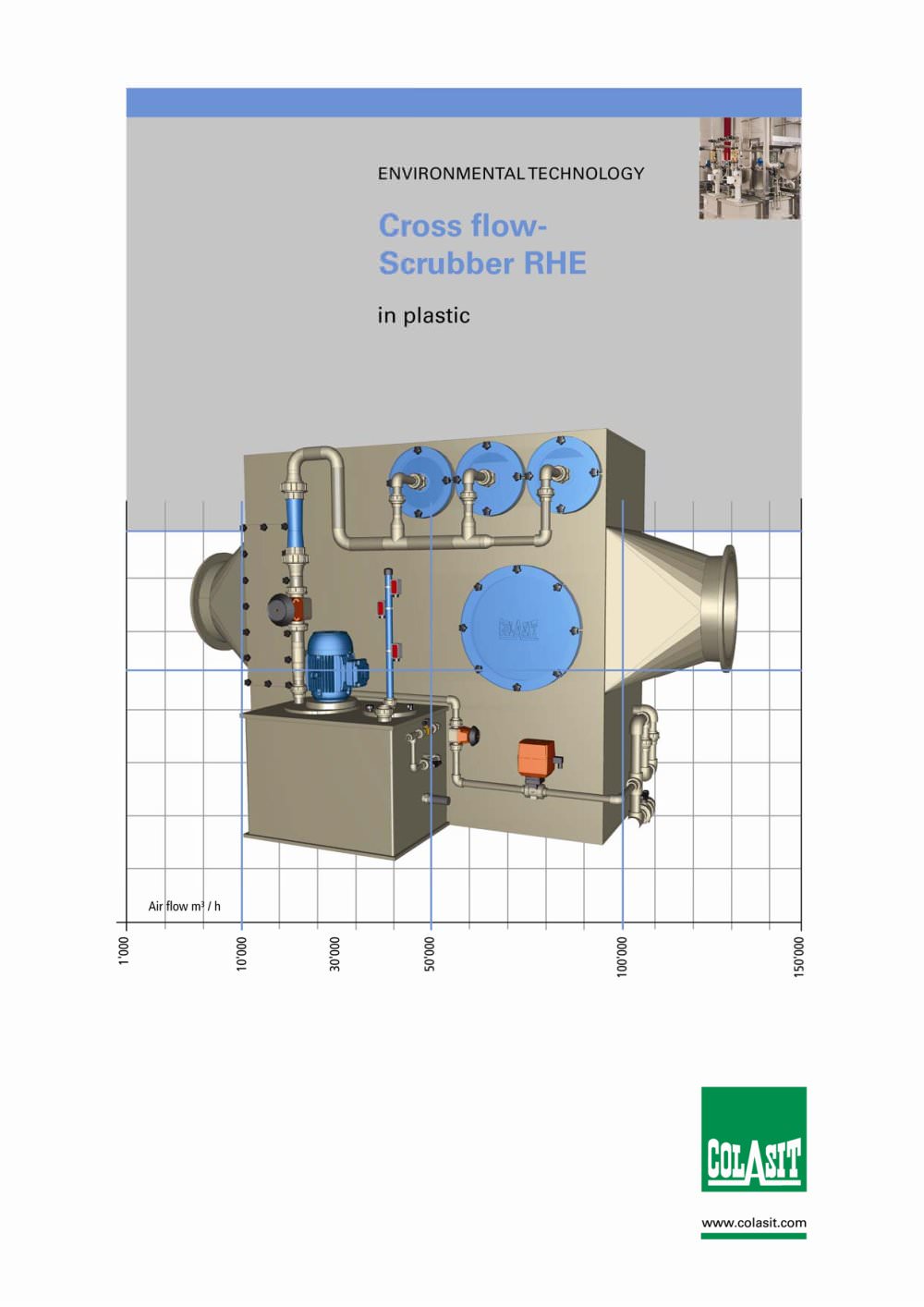

Open the catalog to page 1
Cross flow SCRUBBER RHE in plastic Application Purification of highly polluted exhaust air with acidic or alkaline contamination. Mainly used in: - Food industry - Pharma, chemical and biochemical industry - Surface treatment and solar technology - Semiconductor and clean room - Waste, sewage treatment, composting - Drying process Principle Dosing of circulating washing fluid into the horizontal exhaust air flow. Rinsing of water-soluble impurities by the addition of alkalis or acids. Tank for pollutants. Features Efficiency: up to 99 % Air flow: standard up to 45'000 m3/h (higher air volumes...
