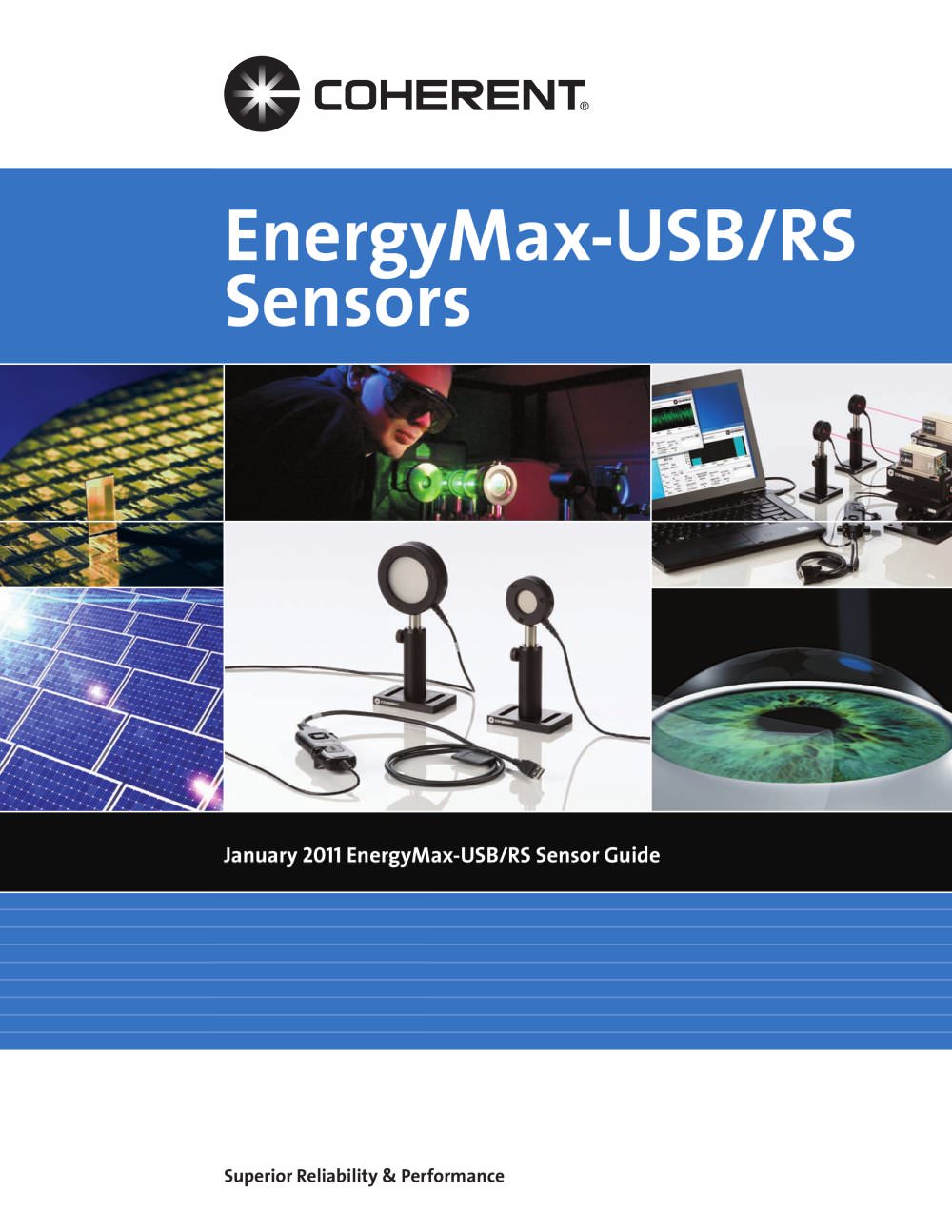

EnergyMax-USB/RS Sensors January 2011 EnergyMax-USB/RS Sensor Guide Superior Reliability & Performance

Open the catalog to page 1

T echnical SupportOperationalExcellenceSuperior CustomerServiceWarrantyOn-Time DeliveryC24 ProgramProduct Reliability For over 40 years, Coherent has been supplying you with the best laser measurement and beam diagnostic equipment available. We realize that while technical specifications greatly influence your purchasing decisions, you also must consider many other important criteria. In a recent customer survey we found that Product Reliability, Speed of Responsiveness, and Technical Support are the three top criteria when choosing a laser test and measurement supplier. That’s why we place...

Open the catalog to page 2

• Toll Free: (800) 343-4912 • Tel: (408) 764-4042 • Fax: (503) 454-5727 3 Product Overview EnergyMax-USB/RS Sensors Coherent has expanded their meterless laser measurement concept with a new range of energy sensors in which all meter electronics are miniaturized and integrated within the sensor head cable. Specifically, Coherent’s entire range of high performance EnergyMax sensors are now available in this form factor with either RS-232 or USB 2.0 connectivity. This product range enables measurement of the energy per pulse or average power of pulsed lasers from the nanojoule to the...

Open the catalog to page 3

4 Superior Reliability & Performance • www.Coherent.com • LMC.sales@coherent.com Main Product Features • Able to measure every pulse up to 10 kHz and stream this data over the host port (USB only). RS-232 capable of measuring every pulse up to 10 Khz and streaming data over host port at a rate of 1 kHz. • EnergyMax-USB provides direct USB high speed 2.0 connection to PC. Power provided via USB connection. • EnergyMax-RS provides RS-232 connectivity. Power input provided via +4-20 VDC input. • Fast 14-bit A/D converter supports measurement accuracy similar to that found in Coherent’s...

Open the catalog to page 4

• Toll Free: (800) 343-4912 • Tel: (408) 764-4042 • Fax: (503) 454-5727 5 Coherent EnergyMax sensors enable laser pulse energy measurement over a broad range of wavelengths, repetition rates, pulse energies and beam diameters. With their unique combination of superior performance and user-friendly convenience, EnergyMax sensors are your best choice no matter what your particular laser energy measurement need. EnergyMax sensors are highly linear in terms of repetition rate, laser pulse width, and measured energy. They are also accurate across a broad range of wavelengths due to onboard...

Open the catalog to page 5

6 Superior Reliability & Performance • www.Coherent.com • LMC.sales@coherent.com All pyroelectric EnergyMax sensors incorporate a diffuse coating to minimize specular reflections and eliminate spurious beams that can re-enter the laser cavity. In addition, all EnergyMax sensors include onboard electronics that contain built-in wavelength compensation factors. Enter the wavelength of the laser being measured into the software and this will automatically compensate for the sensor output. The chart below plots the typical absorption percentage of each coating. W avelength (ìm) 0.1 20 10 1 0.1...

Open the catalog to page 6

• Toll Free: (800) 343-4912 • Tel: (408) 764-4042 • Fax: (503) 454-5727 7 Overall measurement accuracy is a combination of calibration uncertainty (found in the sensor specification tables) and the wavelength compensation accuracy (found in the “Wavelength Compensation Accuracy” table, below). The combined accuracy is based upon practices outlined in the National Institute of Standards Guidelines for Evaluating and Expressing Uncertainty (NIST Technical Note 1297, 1994 Edition). The combined accuracy of the measurement is calculated by using the law of propagation of uncertainty using the...

Open the catalog to page 7

8 Superior Reliability & Performance • www.Coherent.com • LMC.sales@coherent.com Introduction and Selection Charts EnergyMax-USB/RS Sensors Use the following chart to identify sensors that operate within the energy range you intend to measure. Selection charts on the following pages of this guide will help you select more exactly the best sensor for your application. See page 16 for typical dynamic range curves of the Quantum EnergyMax Sensor. Model Energy Range 100 nJ 1 ìJ 10 ìJ 100 ìJ 1 mJ 10 mJ 100 mJ 1J 10J J-50MB-HE 1.6 mJ to 2J J-50MB-LE 400 ìJ to 500 mJ J-25MB-HE 850 ìJ to 1J...

Open the catalog to page 8

• Toll Free: (800) 343-4912 • Tel: (408) 764-4042 • Fax: (503) 454-5727 9 Introduction and Selection Charts EnergyMax-USB/RS Sensors EnergyMax sensors are based upon pyroelectric technology and can therefore measure lasers at high repetition rates. The maximum repetition rate is primarily dependent upon the thermal resistance of the coating and the maximum pulse width the sensor is designed to measure. Refer to the summary table on page 10 for maximum laser pulse width limitations. Model Rep. Rate (pps) 1 10 100 1000 10,000 J-10SI-HE up to 10,000 J-50MB-HE & -LE up to 300 J-25MB-HE & -LE up...

Open the catalog to page 9

• Toll Free: (800) 343-4912 • Tel: (408) 764-4042 • Fax: (503) 454-5727 11 Model J-50MB-HE J-50MB-LE J-25MB-HE J-25MB-LE J-10MB-HE J-10MB-LE Energy Range 1.6 mJ 400 ìJ 850 ìJ 50 ìJ 12 ìJ 500 nJ to 2J to 500 mJ to 1J to 50 mJ to 20 mJ to 600 ìJ Noise Equivalent Energy <160 ìJ <40 ìJ <85 ìJ <5 ìJ <1.2 ìJ <50 nJ Wavelength Range (ìm) 0.19 to 12 Active Area Diameter (mm) 50 50 25 25 10 10 Maximum Average Power (W) 10 10 5 5 4 4 Maximum Pulse Width (ìs) 57 17 Maximum Repetition Rate (pps) 300 300 1000 1000 1000 1000 Maximum Energy Density (mJ/cm2) 500 (at 1064 nm, 10 ns) Detector Coating...

Open the catalog to page 11

12 Superior Reliability & Performance • www.Coherent.com • LMC.sales@coherent.com Model J-50MT-10KHZ J-25MT-10KHZ J-10MT-10KHZ Energy Range 400 ìJ to 1J 90 ìJ to 100 mJ 300 nJ to 200 ìJ Noise Equivalent Energy <40 ìJ <9 ìJ <30 nJ Wavelength Range (ìm) 0.19 to 2.1 Active Area Diameter (mm) 50 25 10 Maximum Average Power (W) 20 10 1 Maximum Pulse Width (ìs) 1.7 Maximum Repetition Rate (pps) 10,000 Maximum Energy Density (mJ/cm2) 500 (at 1064 nm, 10 ns) 50 (at 1064 nm, 10 ns) Detector Coating Diffuse Metallic Diffuser No Calibration Wavelength (nm) 1064 Calibration Uncertainty (%) ±2 Energy...
