NRT Igniter Firing System
4Pages

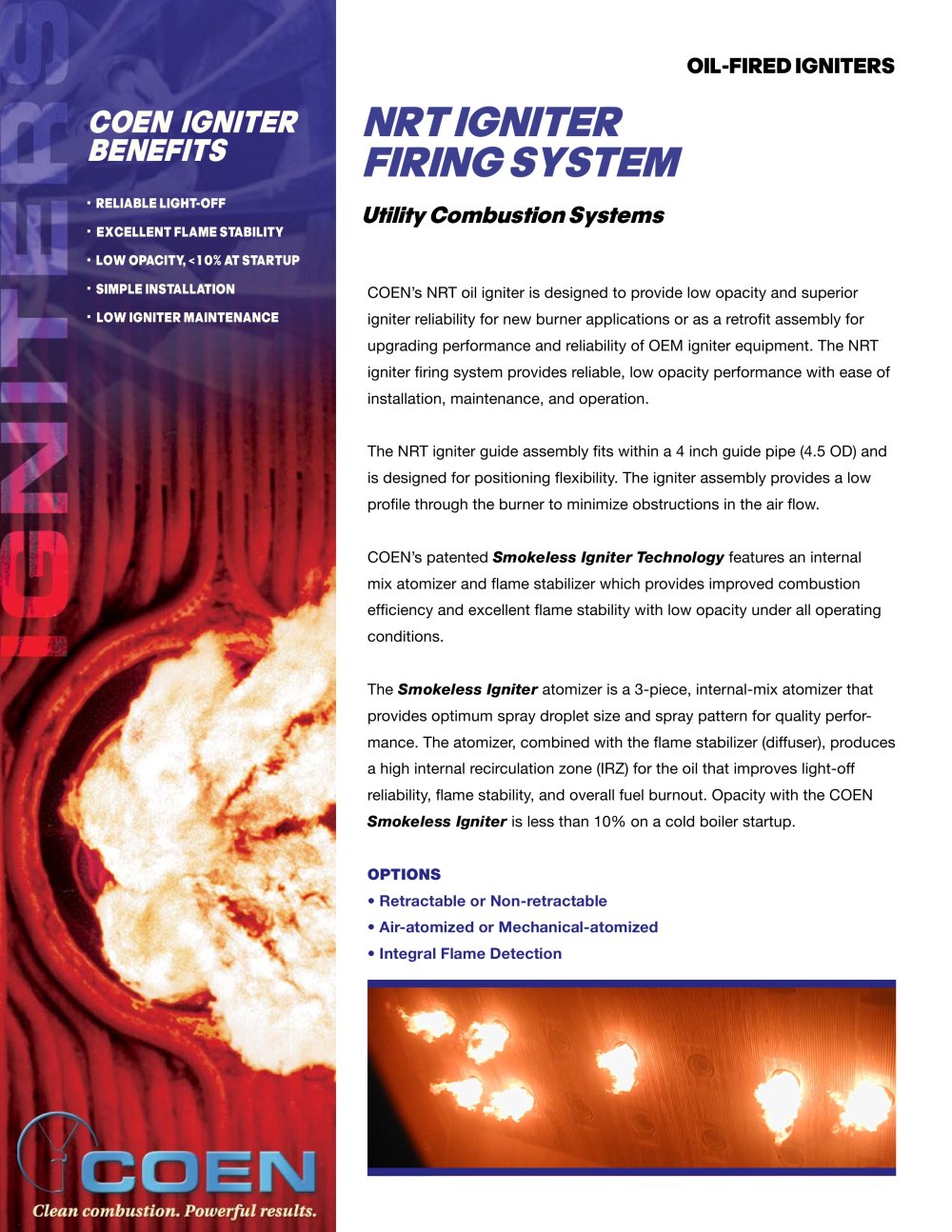

COENs NRT oil igniter is designed to provide low opacity and superior igniter reliability for new burner applications or as a retrofit assembly for upgrading performance and reliability of OEM igniter equipment. The NRT igniter firing system provides reliable, low opacity performance with ease of installation, maintenance, and operation. The NRT igniter guide assembly fits within a 4 inch guide pipe (4.5 OD) and is designed for positioning flexibility. The igniter assembly provides a low profile through the burner to minimize obstructions in the air flow. COENҒs patented Smokeless Igniter is less than 10% on a cold boiler startup. > Smokeless Igniter Technology features an internal mix atomizer and flame stabilizer which provides improved combustion efficiency and excellent flame stability with low opacity under all operating conditions. The Smokeless Igniter atomizer is a 3-piece, internal-mix atomizer that provides optimum spray droplet size and spray pattern for quality perfor- mance. The atomizer, combined with the flame stabilizer (diffuser), produces a high internal recirculation zone (IRZ) for the oil that improves light-off reliability, flame stability, and overall fuel burnout. Opacity with the COEN OPTIONS U Retractable or Non-retractable Air-atomized or Mechanical-atomized Օ Integral Flame Detection >

The primary components of the NRT igniter are the sta-tionary guide pipe assembly, igniter oil gun, Smokeless Igniter atomizer, and the flame stabilizer (diffuser). The NRT igniter oil gun locks in place with a cam-lock type fit- ting for tight lockdown, sealing, and easy removal of the oil gun. The oil gun is equipped with quick disconnects for easy connection of oil and air to the oil gun. The oil side uses a double shutoff disconnect as a safeguard to keep oil from flowing out of the oil gun or hose when it is disconnected. The air side uses a single shutoff discon- nect to eliminate air...

Flame Detectors For igniter and main flame detection, COEN offers our state-of-the-art flame detector. The is a microprocessor-based programmable digital flame scan- ner that uses the latest solid state and signal processing technology. The unitized design features an All In OneӔ configuration with an integrated viewing head and signal processor, which eliminates the traditional flame scanner signal processing unit (amplifier) and amplifier cabinet. High Energy Electric Igniter The mounts directly to the burner back plate (no fiber-optic extensions are required), which provides for...

COEN Power: 24 VDC nominal, 2.9 VA (120 mA), 20-28 VDC operationalInputs: Two digital remote file selects Relay Output: One normally open voltage free (dry) flame relay contactAnalog Output: 4-20 mA (current source) Display: Internal scanner temperatureCommunications: RS485, 19.2 KB, 127 scanners per loop, up to 5,000 ft (1,500 m)Response Time: 1-4 seconds adjustable (FFRT, FON, marginal flame)Models: NEMA 4X, Class 1 Div 1 & 2, Group B, C, & D, ATEXApprovals: FM, UL, CSA, CE, ATEX, APAVE, CBWarranty: Two (2) years Software: Included (all upgrades free) COEN 12 Joule High Energy Electric...
