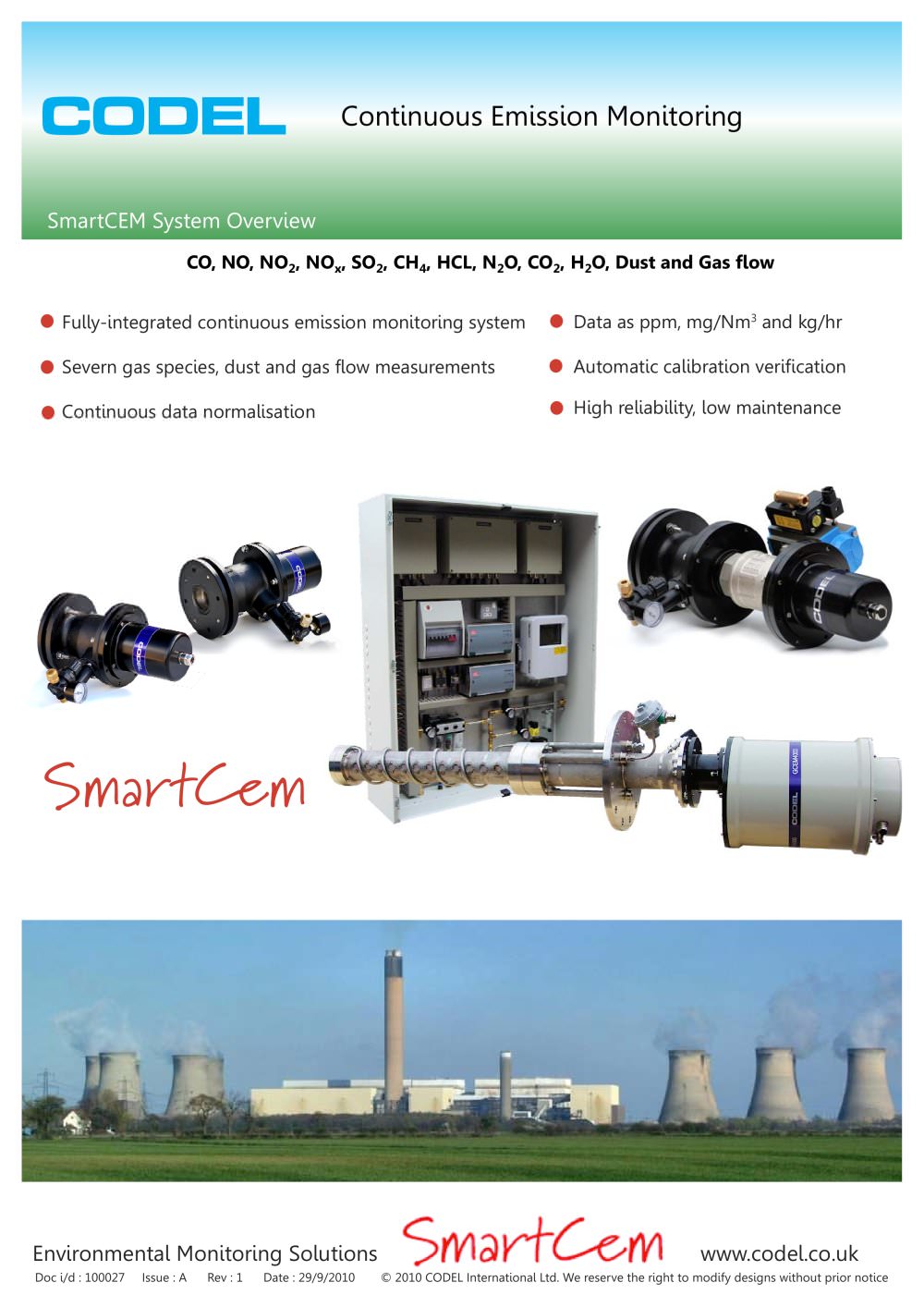

Environmental Monitoring Solutions www.codel.co.uk CODEL Doc i/d : 100027 Issue : A Rev : 1 Date : 29/9/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice CO, NO, NO2, NOx, SO2, CH4, HCL, N2O, CO2, H2O, Dust and Gas flow SmartCEM System Overview Continuous Emission Monitoring Data as ppm, mg/Nm3 and kg/hr Automatic calibration verification High reliability, low maintenance Fully-integrated continuous emission monitoring system Severn gas species, dust and gas flow measurements Continuous data normalisation SmartCem

SmartCEM is the ultimate solution for continuous monitoring of flue gas emissions. It is a fully integrated monitoring concept from the basic analysers and their calibration verification packages through to digital communications, data logging and automatic reporting. At the heart of this concept is the SmartCEM station which contains all the analysers and monitors to provide comprehensive stack emission monitoring. The SmartCEM Station Control Unit (SCU) provides power to and communicates with the analysers and monitors within that station. Data from up to 32 SmartCEM stations is...

Environmental Monitoring Solutions www.codel.co.uk Doc i/d : 100027 Issue : A Rev : 1 Date : 29/9/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice SmartCEM System Arrangement VCEM5000 Flow Monitor VCEM5000 Flow Monitor DCEM2000 Dust Monitor GCEM4000 Gas Analyser DCEM2000 Dust Monitor DCEM Processor Unit VCEM Processor Unit Station Control Unit (SCU) CEMS Control Panel Central Data Controller (CDC) Internet connection to CODEL support Control Room PC with SmartCEM Software

SmartCEM Software GSM Unit Environmental Monitoring Solutions www.codel.co.uk Doc i/d : 100027 Issue : A Rev : 1 Date : 29/9/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice Detailed and customisable reports to meet Regulatory Agency requirements (including LCPD, WID) User configurable real-time and historical graphing facilities for data analysis Data export to popular applications such as Excel etc Multi-user networking capability Real-time normalisation of data Data storage on PC hard drive of at least 10 years Easy installation and set-up...
