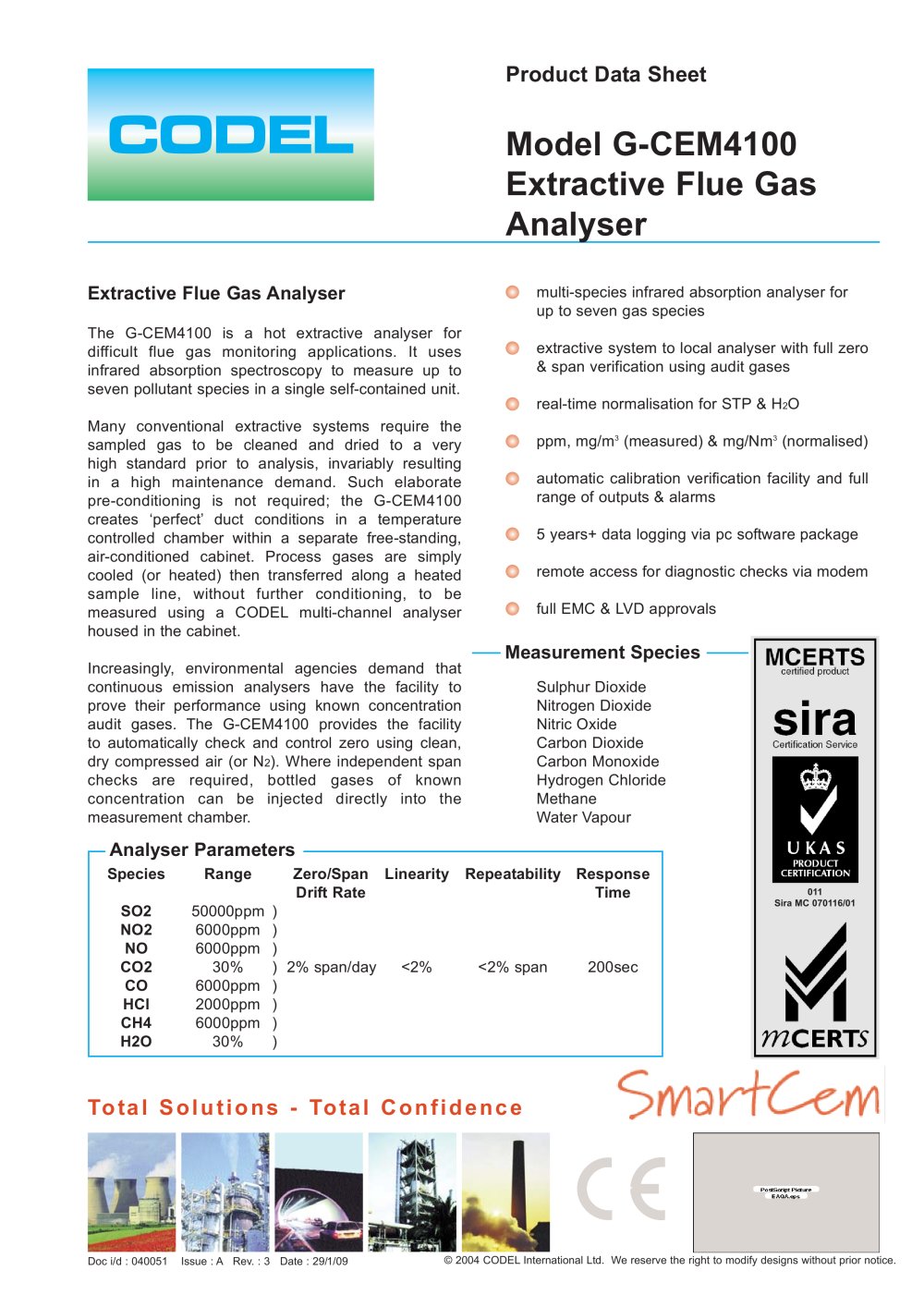

GCEM4100 Extractive Multi-channel Gas Analyser
2Pages

Extractive Flue Gas Analyser The G-CEM4100 is a hot extractive analyser for difficult flue gas monitoring applications. It uses infrared absorption spectroscopy to measure up to seven pollutant species in a single self-contained unit. Many conventional extractive systems require the sampled gas to be cleaned and dried to a very high standard prior to analysis, invariably resulting in a high maintenance demand. Such elaborate pre-conditioning is not required; the G-CEM4100 creates ‘perfect’ duct conditions in a temperature controlled chamber within a separate free-standing, air-conditioned cabinet. Process gases are simply cooled (or heated) then transferred along a heated sample line, without further conditioning, to be measured using a CODEL multi-channel analyser housed in the cabinet. Increasingly, environmental agencies demand that continuous emission analysers have the facility to prove their performance using known concentration audit gases. The G-CEM4100 provides the facility to automatically check and control zero using clean, dry compressed air (or N2). Where independent span checks are required, bottled gases of known concentration can be injected directly into the measurement chamber. multi-species infrared absorption analyser for up to seven gas species extractive system to local analyser with full zero & span verification using audit gases real-time normalisation for STP & H2O ppm, mg/m3 (measured) & mg/Nm3 (normalised) automatic calibration verification facility and full range of outputs & alarms 5 years+ data logging via pc software package remote access for diagnostic checks via modem full EMC & LVD approvals Model G-CEM4100 Extractive Flue Gas Analyser Product Data Sheet Total Solutions - Total Confidence Doc i/d : 040051 Issue : A Rev. : 3 Date : 29/1/09 © 2004 CODEL International Ltd. We reserve the right to modify designs without prior notice. Measurement Species Species SO2 NO2 NO CO2 CO HCl CH4 H2O Range 50000ppm 6000ppm 6000ppm 30% 6000ppm 2000ppm 6000ppm 30% Zero/Span Drift Rate ) ) ) ) 2% span/day ) ) ) ) Linearity <2% Repeatability <2% span Response Time 200sec Analyser Parameters 011 Sira MC 070116/01 Sulphur Dioxide Nitrogen Dioxide Nitric Oxide Carbon Dioxide Carbon Monoxide Hydrogen Chloride Methane Water Vapour CODEL

Input & Outputs Analogue : 1 x 4-20mA for remote O2 Inputs measurement : 1 x 4-20mA for process gas temperature measurement Outputs : analogue : up to 8 x 4-20mA, 200V common mode isolation, max. load 500Ù, fully configurable for span, zero and response time : logic : up to 8 x volt-free contacts SPCO rated at 50V/1A Power : cabinet : 110/240V AC, 50/60Hz, Requirements single phase, 600VA total : sample line : 110/240V AC, 50/60Hz, single phase, 150VA per metre Compressed : clean, oil-free compressed air (or N2) Air (or N2) dried to -20oC min., 4 bar min. Requirements pressure, 0.5...
