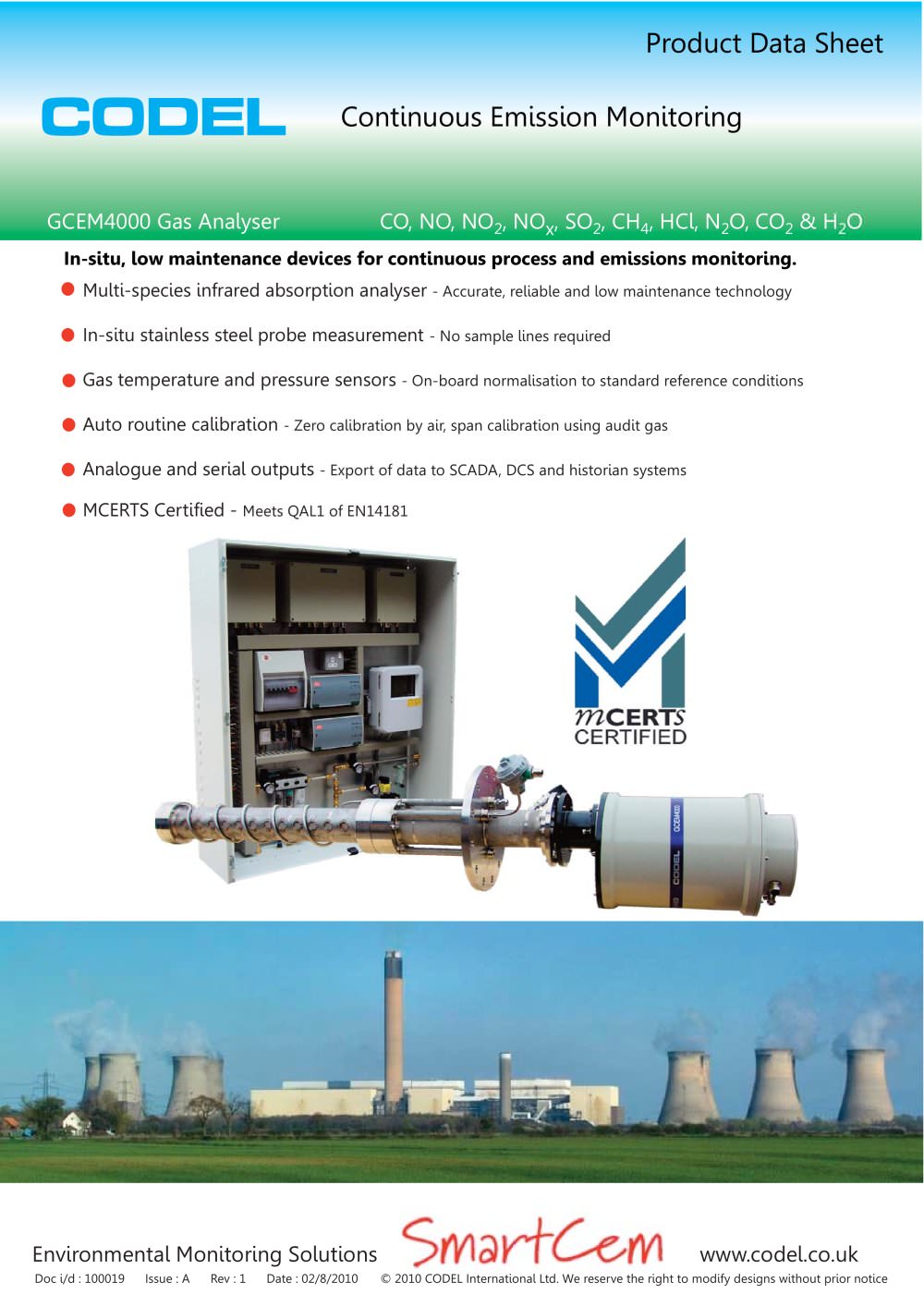

Environmental Monitoring Solutions www.codel.co.uk CODEL Doc i/d : 100019 Issue : A Rev : 1 Date : 02/8/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice Multi-species infrared absorption analyser - Accurate, reliable and low maintenance technology In-situ stainless steel probe measurement - No sample lines required Gas temperature and pressure sensors - On-board normalisation to standard reference conditions Auto routine calibration - Zero calibration by air, span calibration using audit gas Analogue and serial outputs - Export of data to SCADA, DCS and historian systems MCERTS Certified - Meets QAL1 of EN14181 In-situ, low maintenance devices for continuous process and emissions monitoring. GCEM4000 Gas Analyser CO, NO, NO2, NOx, SO2, CH4, HCl, N2O, CO2 & H2O Product Data Sheet Continuous Emission Monitoring

The GCEM4000 in-situ multi-gas analyser is CODEL’s industry-proven continuous emissions monitor. Three decades of development, knowledge and practical experience have been utilised to produce this advanced-technology gas analyser which gives complete flexibility of use on process or emissions applications whilst delivering superb accuracy and repeatability at a very competitive price. The multi gas analyser uses an infra-red detector to measure hot exhaust gases without sampling or modification inside a porous probe positioned directly in the gas stream. The 316 stainless steel probe has...

GCEM4000 Multi-Channel Gas Analyser - System Arrangement Environmental Monitoring Solutions www.codel.co.uk Doc i/d : 100019 Issue : A Rev : 1 Date : 02/8/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice GCEM4000 Gas Analyser - Options Central Data Controller (CDC) CODEL SmartCEM Software 1. Plug-in 4-20mA Input PCB 2. Plug-in Contact Input PCB 3. RS484 PCB for Modbus Output Clean and dry compressed air Span gas in Span / Zero gas out Instrument air supply 4 Wire data comms bus Probe Power in Signals out Weather cover control

Environmental Monitoring Solutions www.codel.co.uk Probe (wt. 65kg) Sensor Unit with Active Weather Cover (wt. 55kg) Overall Dimensions - 1.8m Probe Overall Dimensions - 1.0m Probe Overall Dimensions - Site Flange Probe (wt. 50kg) Doc i/d : 100019 Issue : A Rev : 1 Date : 02/8/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice Probe (wt. 80kg) Overall Dimensions - 2.2m Probe 30mm Min 160mm Note: All dimensions are in mm Note: All dimensions are in mm Note: All dimensions are in mm 220mm 340mm BS4504 PN16 DN200 Mild steel site flange 1000 Min 70...

Standard CEMS Control Panel Dimensions Standard Cems Control Panel 300 800 1000 The GCEM4000 CEMS Control Panel houses all auxiliary equipment necessary for the correct function of the analyser. These include: power; input/output connections; purge air supplies; gas calibration pneumatics and the Station Control Unit (SCU). The epoxy-coated, mild steel enclosure is designed for outdoor use and sealed to IP55 or IP66 . It is perfectly suited for installation at the stack alongside the GCEM4000 Analyser. Site power is connected via a power isolator and distributed to various functions within...

SmartCEM Software GSM Unit Environmental Monitoring Solutions www.codel.co.uk Doc i/d : 100019 Issue : A Rev : 1 Date : 02/8/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice Detailed and customisable reports to meet Regulatory Agency requirements (including LCPD, WID) User configurable real-time and historical graphing facilities for data analysis Data export to popular applications such as Excel etc Multi-user networking capability Real-time normalisation of data Satisfies EN14181 QAL3 requirements Data storage on PC hard drive of at least 10...

GCEM4000 Multi-Channel Gas Analyser - Technical Specification Sensor Unit Probe Compliances CEMS Control Panel Services Gas Species Options Maximum 7 gases from: CO, NO, NO2, NOx, N2O, SO2, HCl, CH4 and CO2 Gas temperature, pressure and H2O for data normalisation are standard. Measuring units ppm, mg/Nm³, mg/m³ , % Response Time Less than 200 Seconds (T90)- MCERTS Specification Gas Temperature Standard probe - dewpoint to 300°C High-temp probe - dewpoint to 400°C (Other temperatures available on request) Calibration Automatic and manual zero/span verification Gas Species CO, NO, NO2, NOx,...
