DCEM2000/2100 Dual-pass Optical Dust / Opacity
7Pages

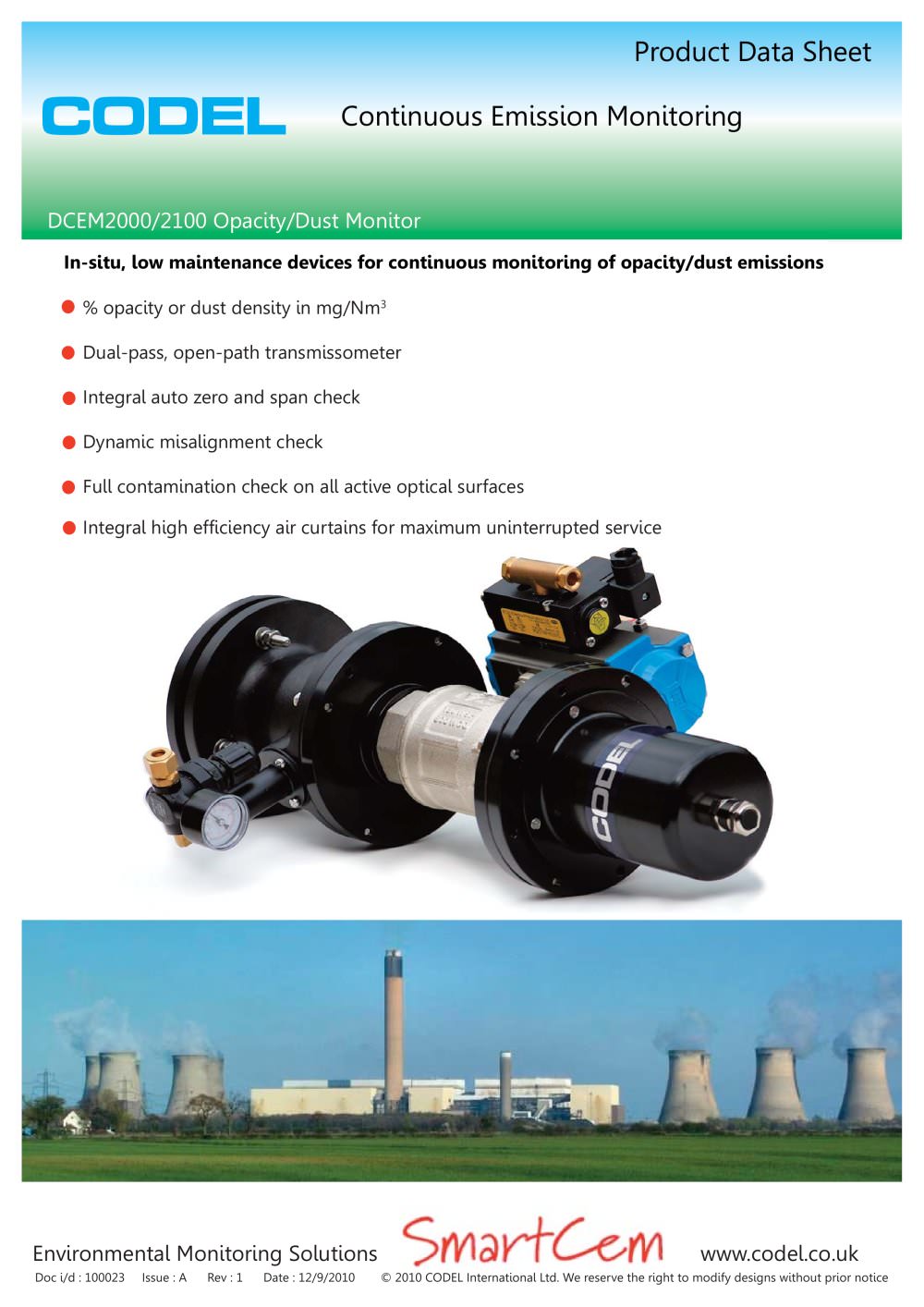

Environmental Monitoring Solutions www.codel.co.uk CODEL Doc i/d : 100023 Issue : A Rev : 1 Date : 12/9/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice % opacity or dust density in mg/Nm3 Dual-pass, open-path transmissometer Integral auto zero and span check Dynamic misalignment check Full contamination check on all active optical surfaces Integral high efficiency air curtains for maximum uninterrupted service In-situ, low maintenance devices for continuous monitoring of opacity/dust emissions DCEM2000/2100 Opacity/Dust Monitor Product Data Sheet Continuous Emission Monitoring

The DCEM2000 and DCEM2100 provide a continuous measurement of opacity or dust concentration in flue gases by continuously measuring the transmissivity of visible light across a process duct or stack. Its dual-pass optical arrangement is based on twin transmissometers measuring in opposing directions through the same section of the gas stream, providing not only an accurate average of the dust loading, but also providing a unique dynamic assessment of any misalignment errors due to stack movement. The measurement of opacity or particulate (dust) emissions from a process stack by measuring...

DCEM2000 Dust/Opacity Monitor - SmartCEM Integrated System Arrangement Environmental Monitoring Solutions www.codel.co.uk Doc i/d : 100023 Issue : A Rev : 1 Date : 12/9/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice Transceiver Transceiver 48V Power Data transfer Purge air in Purge air in Signal Processor Unit (SPU) DCEM2100 Dust/Opacity Monitor - Stand Alone System Arrangement Data Display Unit (DDU) Purge air in Purge air in Signal Processor Unit (SPU) Mains Power In Inputs Outputs Power Supply Unit (SPU) Data transfer to remote DDU...

Environmental Monitoring Solutions www.codel.co.uk Doc i/d : 100023 Issue : A Rev : 1 Date : 12/9/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice Overall Dimensions - Transceivers and Site Flanges 510 355 Transceiver (wt. 14kg) Overall Dimensions - Signal Processor (SPU) & Power Supply (PSU) Note: All dimensions are in mm Note: All dimensions are in mm Data Display Unit (DDU) (wt. 3kg) 160 160 110 230 200 110 Signal Processor Unit (SPU) (wt. 4kg) Overall Dimensions - Data Display Unit (DDU) 200 Power Supply Unit (PSU) (wt. 4kg) 230 15 Ø76...

DCEM2000/2100 Operating Principle Environmental Monitoring Solutions www.codel.co.uk Doc i/d : 100023 Issue : A Rev : 1 Date : 12/9/2010 © 2010 CODEL International Ltd. We reserve the right to modify designs without prior notice Particles emitted from industrial processes include smoke, soot, ash and carried-over process materials. All of these particles are visible and they can be measured by looking at how much they absorb and scatter visible light. The CODEL DCEM2000/2100 utilises two separate transceivers – each measuring across the same path. The LED light sources are turned on...

DCEM2100 Dust / Opacity Monitor - Technical Specification Transceiver Unit Compliances Ser vices Operating Principle Dual-pass transmissometer Measuring units % opacity, mg/m3, mg/Nm3 Light Source Modulated high-intensity LED at 637nm (or 580nm) wavelength * Light Detection Continuous measurement of transmitted and received light intensities Optical Path Length 0.5 to 15m Accuracy +/- 0.2% opacity Measuring Range Fully selectable in % opacity and mg/m3 Resolution 0.1% opacity Drift <1% opacity per month Averaging 4 rolling averages selectable from 10 seconds to 30 days Calibration Auto zero...

DCEM2000 Dust / Opacity Monitor - Technical Specification Transceiver Unit Compliances Services Operating Principle Dual-pass transmissometer Measuring units % opacity, mg/m3, mg/Nm3 Light Source Modulated high-intensity LED at 637nm (or 580nm) wavelength * Light Detection Continuous measurement of transmitted and received light intensities Optical Path Length 0.5 to 15m Accuracy +/- 0.2% opacity Measuring Range Fully selectable in % opacity and mg/m3 Resolution 0.1% opacity Drift <1% opacity per month Averaging 4 rolling averages selectable from 10 seconds to 30 days Calibration Auto zero...
