DCEM1001 Single-pass Optical Dust / Opacity Monitor

Product catalog summary

Overview: The D-CEM1000/1001 Opacity Monitors are designed for measuring opacity, extinction, or dust density in industrial environments. They consist of a visible light transmitter and receiver with digital data processing capabilities.

Key Features:

Displays data in opacity, extinction, or dust density (mg/m³ or mg/Nm³).
Includes four analogue inputs for normalization data: temperature, oxygen, pressure, and water vapour (D-CEM1001 model).
Simple installation, high reliability, and low maintenance.
Minimized lens contamination through high-efficiency air purges.

Power and Construction:

Power supply: 76V to 265V AC at 50/60Hz, 20VA.
Construction: Epoxy-coated aluminium, IP67 rated.
Operating temperature: -20°C to +70°C.

Inputs and Outputs:

Analogue outputs: 2 x 4-20mA current outputs, isolated, 500Ω load max.
Logic outputs: 2 x volt-free SPCO contacts, configurable as alarm contacts.
Inputs: 4 x 4-20mA for normalization data (D-CEM1001 only).

Measurement Specifications:

Operating principle: Single pass transmissometer.
Light source: Modulated high-intensity LED at 637nm wavelength.
Span: Selectable in % opacity, extinction, mg/m³, and mg/Nm³.
Averaging: 4 rolling averages selectable from 10 seconds to 30 days.
Accuracy: ±0.2% opacity.
Drift: Less than 1% opacity per month.
Resolution: 0.1% opacity.
Optical path length: 0.5 - 15m.

Compliance:

EMC: Compliant with 89/336/EEC directive.
Low Voltage: Compliant with 73/23/EEC directive.

Additional Options:

Heated flanges to prevent condensation on lenses.

Contact Information: CODEL International Ltd., Station Building, Station Road, Bakewell, Derbyshire DE45 1GE, England. Tel: +44 (0) 1629 814 351, Fax: +44 (0) 8700 566 307, Email: [email protected], Website: www.codel.co.uk

Catalog excerpts

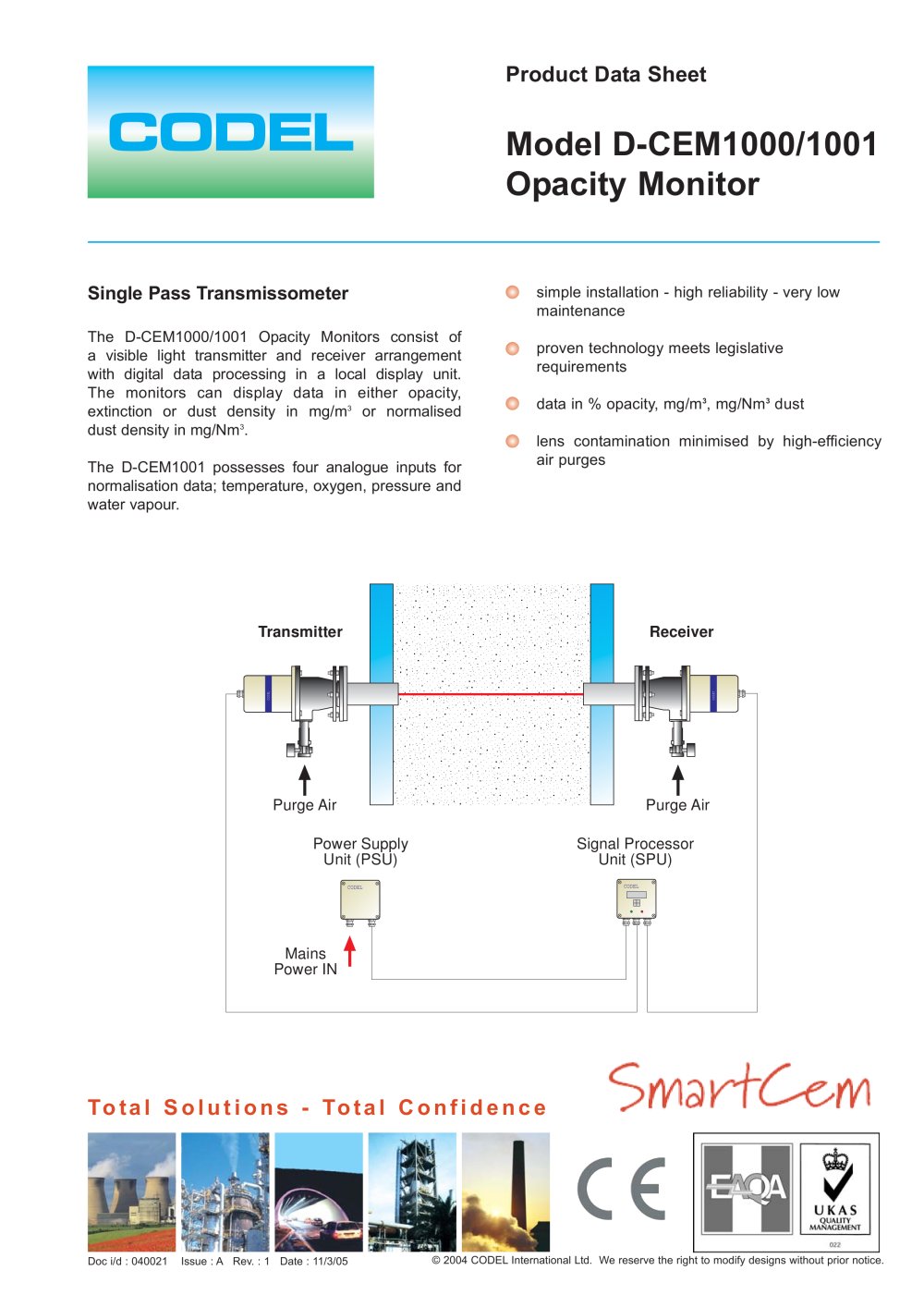

DCEM1001 Single-pass Optical Dust / Opacity Monitor-1

Single Pass Transmissometer The D-CEM1000/1001 Opacity Monitors consist of a visible light transmitter and receiver arrangement with digital data processing in a local display unit. The monitors can display data in either opacity, extinction or dust density in mg/m3 or normalised dust density in mg/Nm3. The D-CEM1001 possesses four analogue inputs for normalisation data; temperature, oxygen, pressure and water vapour. Power Supply Unit (PSU) Signal Processor Unit (SPU) Transmitter Receiver Purge Air Purge Air Mains Power IN CODEL CODEL CODEL CODEL simple installation - high reliability - very low maintenance proven technology meets legislative requirements data in % opacity, mg/m3, mg/Nm3 dust lens contamination minimised by high-efficiency air purges Total Solutions - Total Confidence Model D-CEM1000/1001 Opacity Monitor Product Data Sheet Doc i/d : 040021 Issue : A Rev. : 1 Date : 11/3/05 © 2004 CODEL International Ltd. We reserve the right to modify designs without prior notice. CODEL

Open the catalog to page 1

DCEM1001 Single-pass Optical Dust / Opacity Monitor-2

Input & Outputs Analogue - 2 x 4-20mA current outputs, Outputs isolated, 500Ù load max., fully configurable from keypad Logic - 2 x volt-free SPCO contacts, 50V, Outputs 1A max., configurable as alarm contacts - 1 x volt-free SPCO contact, 50V, 1A max. for data valid Inputs - 4 x 4-20mA inputs for (D-CEM1001 normalisation data - temperature, only) oxygen, pressure & water vapour General Display - 32-character alpha-numeric back-lit LCD Keypad - 4-key soft-touch entry Construction - epoxy-coated aluminium to IP67 Ambient - -20oC to +70oC Temperature Power - 76V to 265V AC @ 50/60Hz, 20VA Air Purge...

Open the catalog to page 2
