BUCKET line

BUCKET line
1 / 3 PagesView full catalog

BUCKET line

Product catalog summary
Advanced Systems with Remote Control and Cloud Production Analysis
Dosing Group: The system allows for the installation of multi-head dispensing systems. It includes a dosing group with a pump and an automatic weighing system with a scale, capable of handling weights up to 2.5 Kg, 5 Kg, 10 Kg, and 30 Kg. Stainless steel dispensing nozzles have a maximum diameter of 30 mm, suitable for products at temperatures up to 120°.
Capping Group: Features an automatic lid placing and applying system with a pressure screwing station.
Container Size: Maximum width of 300 mm and height of 350 mm.
Production Speed: Varies based on product and format, with capabilities of up to 500 pcs/h with a single 2 kg format dosing station and up to 1,000 pcs/h with a double dosing station for the same format.
Optional Features: Includes a destacker for loading buckets at the line's start, an increased loading belt with linear or curved construction, an intermediate hopper for product collection up to 500 kg, integration with a labeling machine, and remote assistance.
Machine Dimensions: Length: 5,000 mm, Height: 1,800 mm, Depth: 1,200 mm.
See more

Catalog excerpts

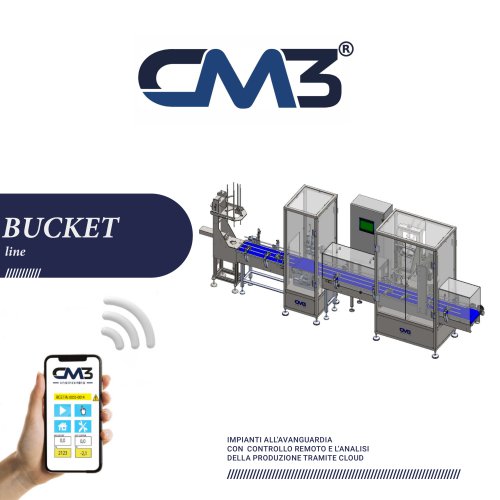

BUCKET line-1

BUCKET line IMPIANTI ALL’AVANGUARDIA CON CONTROLLO REMOTO E L’ANALISI DELLA PRODUZIONE TRAMITE CLOUD

 Open the catalog to page 1
BUCKET line-2

Tensione di alimentazione / Supply Frequenza / Frequency Potenza nominale Zfjmml P°wer Corrente assorbita / Power Peso / Weight GRUPPO DI DOSAGGIO: vi e la possibility d'installare sistemi erogatori a piu teste - Gruppo di dosaggio con pompa e sistema di pesatura automatico con bilancia - Ugelli erogatori in acciaio inox 0 max. 30 mm per passaggio prodotto totale - Sistema di dosaggio idoneo a gestire prodotti in temperatura fino a 120° GRUPPO TAPPATURA: sistema automatico di posa e applica coperchi con stazione di avvitatura a pressione DIMENSION CONTENITORE: larghezza max. 300 mm altezza max....

 Open the catalog to page 2
