Dixie Road Securement Brochure

Product catalog summary

Introduction
Dixie Industries, part of Columbus McKinnon Corporation, specializes in load securement products, focusing on load binders and chains. This document outlines product specifications, safety warnings, and features of their offerings.

Safety Warnings
Improper use or maintenance of tie-down equipment can result in serious injury or death. Key safety practices include inspecting equipment before use, avoiding overloading, and not using handle extenders. Operators should adhere to DOT Federal Motor Carrier Safety Regulations and ensure binders are applied in a straight line.

Product Specifications
Dixie Industries highlights the advantages of forged parts over cast parts, emphasizing the use of certified pure alloy steel for greater strength and early warning signs before failure. A chart is included to indicate the minimum number of chains required to secure loads as per Federal Motor Carrier Safety Administration regulations.

Chain and Binder Specifications
The document details various chain grades (CM Grade 30, 43, 70, 80, and 100) and their working load limits. It also describes the design and testing of ratchet binders, which are proof tested for quality assurance, and are designed for superior ergonomics and durability.

Product Features
Dixie Industries offers a range of chain assemblies with riveted clevis hooks and eye hooks, listing specific part numbers, grades, sizes, and working load limits. Custom chain assembly options are also available.

Conclusion
Dixie Industries is committed to manufacturing high-quality, forged load securement products in the USA, designed to meet stringent safety and performance standards, providing reliable solutions for load securement needs.

Overview
The document provides comprehensive information about Dixie Industries' chain products and accessories, emphasizing compliance with various standards and manufacturing excellence in the USA. It highlights the company's commitment to quality and quick delivery through its distribution centers.

Product Specifications

Grade 43 Chains: Made from high-strength steel, meeting FMCSA, CVSA, NACM, and ASTM requirements. They are welded and clevis assemblies, UV-resistant, and proof-tested.
Grade 70 Chains: Thermally heat-treated for superior strength with a 4:1 design factor, made to order with a lead time of three days or less, featuring a gold finish for easy recognition.
Grade 80 and 100 Chains: Made from high-quality alloy steel, recommended for heavy equipment, featuring a 4:1 design factor, environmentally friendly, and made to order with a three-day lead time.

Innovations and Features

Forged Ratchet Binders: Designed for strength and traceability, featuring fully articulated hooks and a unique tongue design to prevent jamming.
EZ PRO® Cam Block: Patented design for low-energy cam release, providing a consistent release point and high visibility.
DIXI-LOCTM: A lockable feature that secures the binder in a closed position, preventing accidental opening during transport.

Chain Assemblies and Accessories
The document lists various chain assemblies, including G80 and G100 chains with specific working load limits and weights. It also details accessories like compression units and special assemblies for specific applications.

Compliance and Standards
All products meet or exceed CVSA Cargo Securement Guidelines and FMCSA standards, ensuring reliability and safety in use.

Conclusion
Dixie Industries emphasizes its innovative designs, high manufacturing standards, and commitment to quality, establishing itself as a leader in the chain and binder industry.

Catalog excerpts

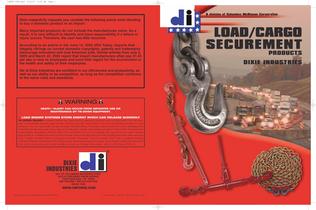

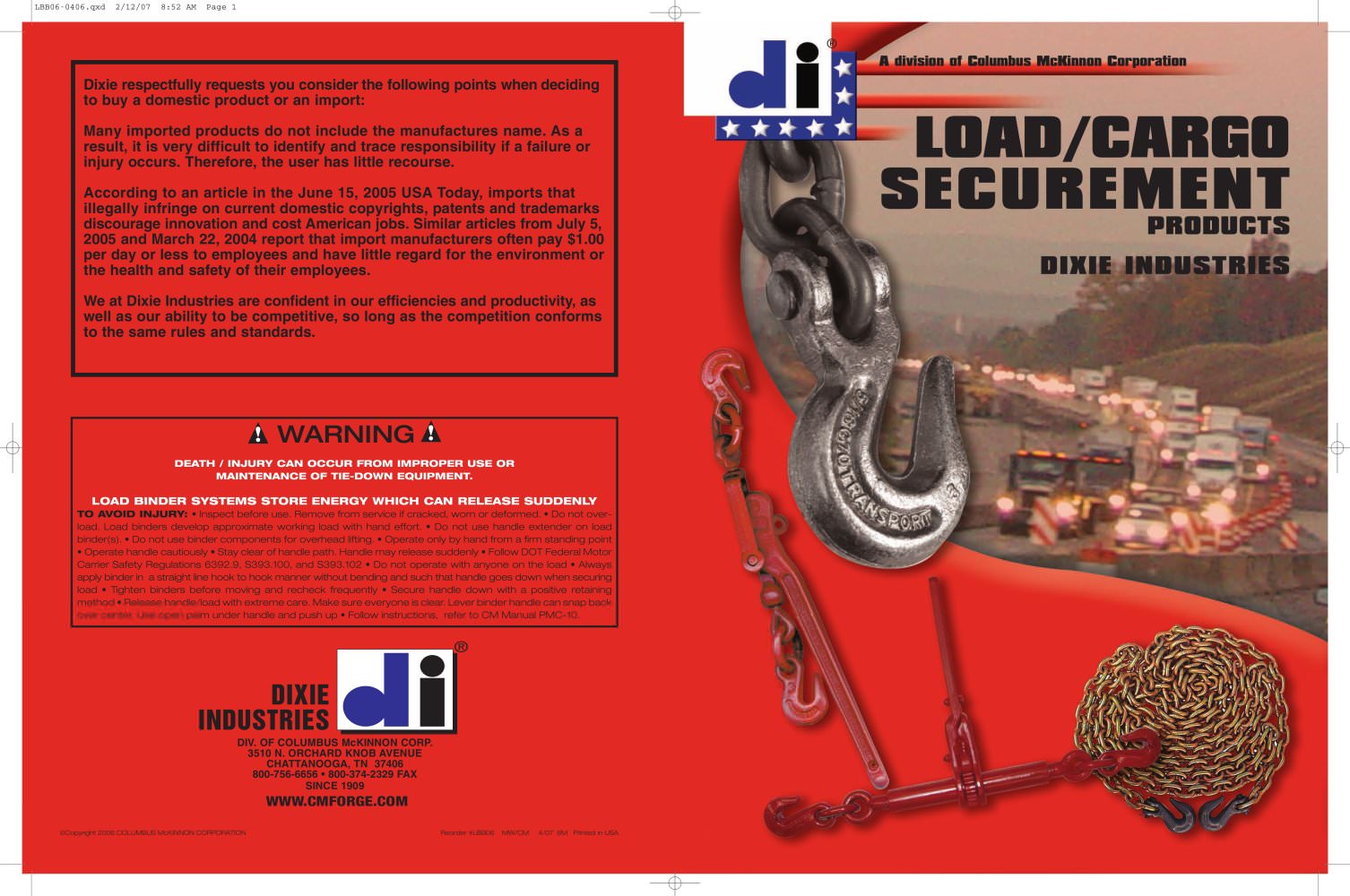

DEATH / INJURY CAN OCCUR FROM IMPROPER USE OR MAINTENANCE OF TIE-DOWN EQUIPMENT. > TO AVOID INJURY: ΕInspect before use. Remove from service if cracked, worn or deformed. Do not over-load. Load binders develop approximate working load with hand effort. Օ Do not use handle extender on load binder(s). Do not use binder components for overhead lifting. Օ Operate only by hand from a firm standing point Operate handle cautiously Օ Stay clear of handle path. Handle may release suddenly Follow DOT Federal Motor Carrier Safety Regulations 6392.9, S393.100, and S393.102 Օ Do not operate with anyone on the load Always apply binder in a straight line hook to hook manner without bending and such that handle goes down when securing load Օ Tighten binders before moving and recheck frequently Secure handle down with a positive retaining method Օ Release handle/load with extreme care. Make sure everyone is clear. Lever binder handle can snap back over center. Use open palm under handle and push up Follow instructions, refer to CM Manual PMC-10. > թCopyright 2006 COLUMBUS McKINNON CORPORATIONReorder #LBB06 MW/CM 4/07 6M Printed in USA size="-2">

Open the catalog to page 1

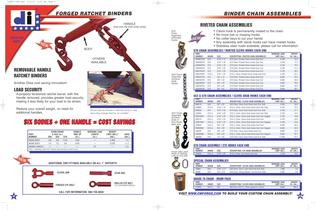

PARTWORKING LOADWEIGHT NUMBERGRADESIZEDESCRIPTION / RIVETED HOOK ASSEMBLIESLIMIT (lbs.)EA. (lbs.) 638281CRVG705/16 x 14ԒG70 Chain, Riveted Clevis Hooks Each End4,70015.2638282CRVG705/16 x 16ԒG70 Chain, Riveted Clevis Hooks Each End4,70017.2 638283CRVG705/16 x 18ԒG70 Chain, Riveted Clevis Hooks Each End4,70019.2 638284CRVG705/16 x 20ԒG70 Chain, Riveted Clevis Hooks Each End4,70021.2 > 638279CRVG705/16 x 25ԒG70 Chain, Riveted Clevis Hooks Each End4,70026.2 639079CRVG70 LL5/16 x 25ԒG70 LL Chain, Riveted Clevis Hooks Each End4,70023.2 > 638291CRVG703/8 x 14ԒG70 Chain, Riveted Clevis Hooks Each End6,60023.5...

Open the catalog to page 4

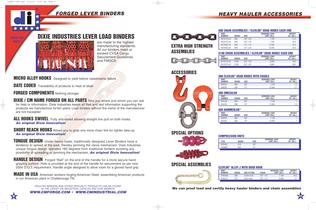

PARTWORKING LOADWEIGHT NUMBERGRADESIZELIMIT (lbs.)EA. (lbs.) 607037CL20G803/8 x 20Ԓ7,10031.5607037CL25G803/8 x 25Ԓ7,10038.0 > PARTWORKING LOADWEIGHT NUMBERGRADESIZELIMIT (lbs.)EA. (lbs.) 607337CL20G1003/8Δ x 208,80032.0 607337CL25G1003/8Ҕ x 258,80038.5 > Ү PARTWORKING LOADWEIGHT NUMBERGRADESIZELIMIT (lbs.)EA. (lbs.) > PARTWORKING LOADWEIGHT NUMBERGRADESIZELIMIT (lbs.)EA. (lbs.) > WORKING LOADWEIGHT TYPEGRADE SIZELIMIT (lbs.)EA. (lbs.) SPRINGG703/8Ԕ--RUBBERG801/2-- > NUMBERGRADEEND FITTINGCHAINLIMIT (lbs.)EA. (lbs.) >

Open the catalog to page 6
