Pont Levis

Product catalog summary
Specifications:
  • Load Capacity: 10,000 kg
  • Weight: 500 kg
  • Length: 4,500 mm
  • Width: 2,000 mm
  • Loading Height: Minimum 900 mm, Maximum 1,500 mm
Features:
  • Equipped with iron and rubber track shoes for roller loading
  • Hydraulic loading platform made of aluminum and composite steel
Hydraulic Control:
  • Manual hydraulic control allows easy lifting of the platform
  • Equipped with a micrometric oil discharge screw for smooth positioning on the truck bed without impacts
See more

Catalog excerpts

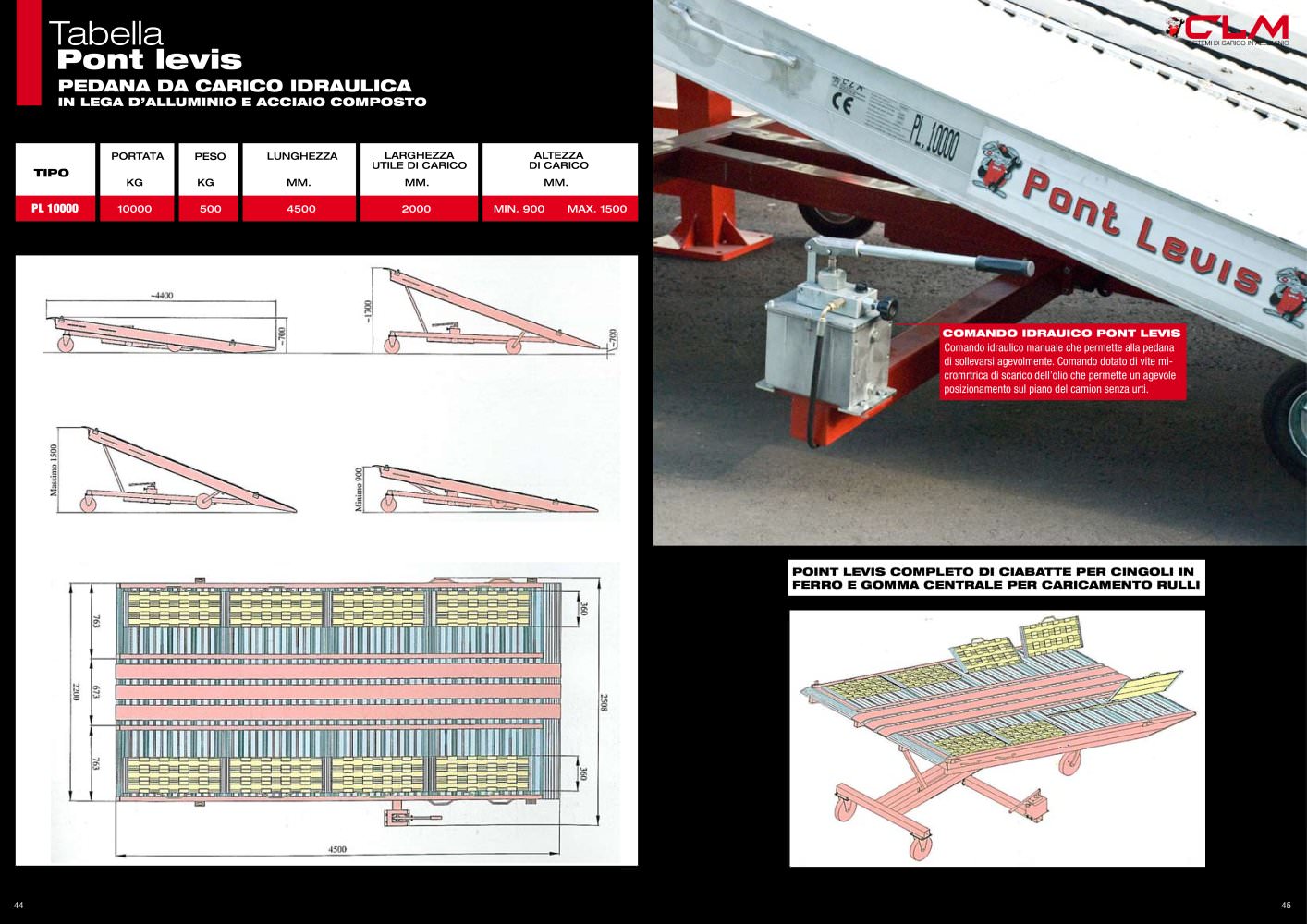

Pont Levis -1

PORTATAPESOLUNGHEZZALARGHEZZAUTILE DI CARICOALTEZZA DI CARICO >

 Open the catalog to page 1
