Load Line
Product catalog summary
Load Line Platform Types
This section presents specifications for different types of load line platforms, focusing on platforms with loading ramps.
Key Specifications
- Platform Model: PC 4000/12000 (Standard Version)
- Length: 2400 mm
- Width: 1300 mm
- Usable Width: 600 mm
- Loading Height: 4300 mm
- Walkway Width: 750 mm
- Load Capacity: 12000 kg
Summary
The table details a standard load line platform equipped with a loading ramp, designed to handle heavy loads up to 12,000 kg. The platform dimensions and loading height are specified to ensure compatibility with loading operations, while the walkway width provides safe access.
See more
Catalog excerpts

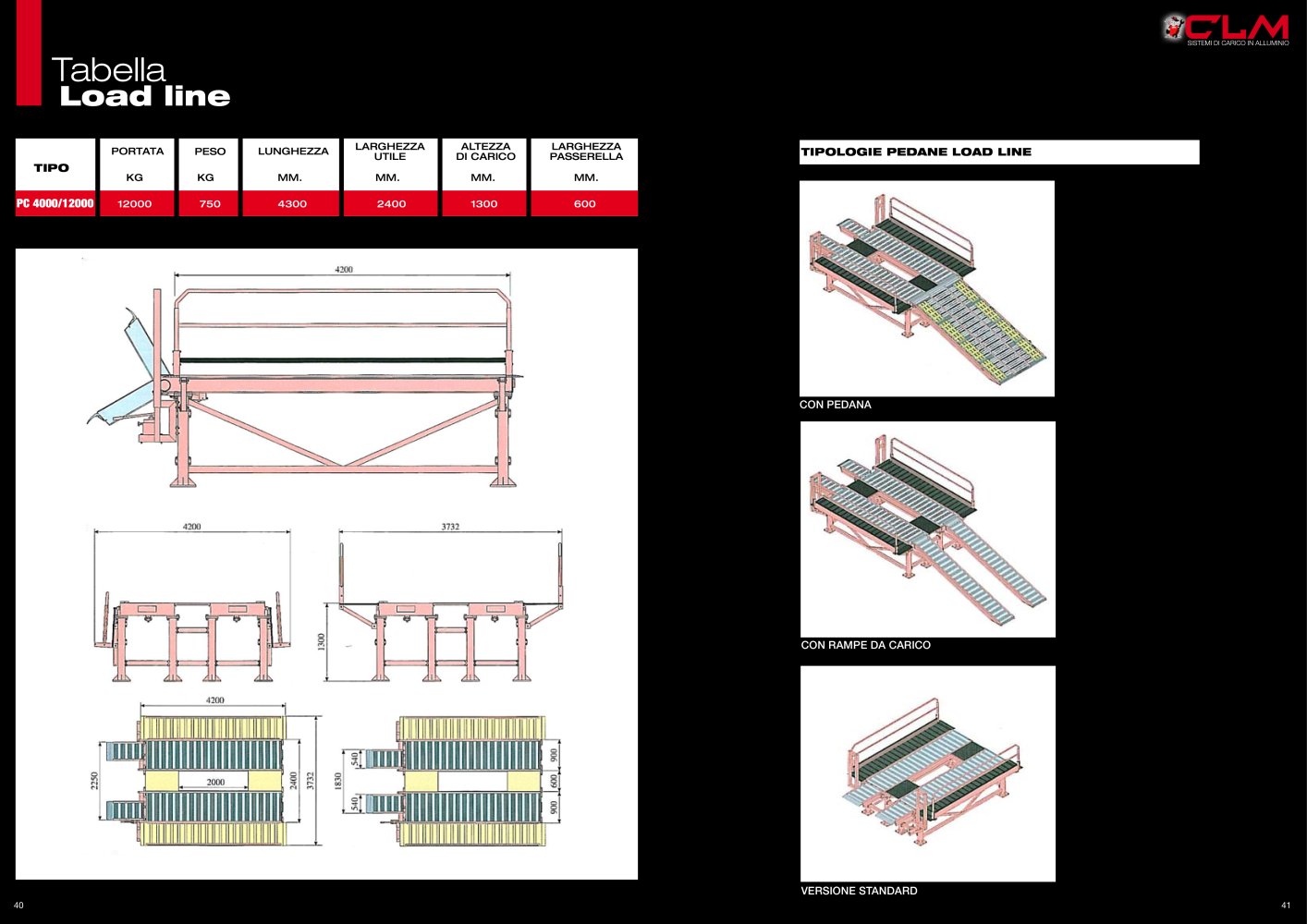

PORTATAPESOLUNGHEZZALARGHEZZAUTILEALTEZZA DI CARICOLARGHEZZA PASSERELLA >
