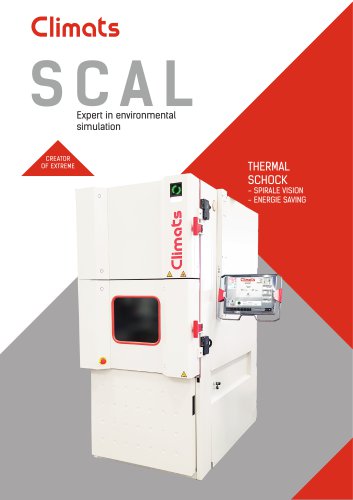

SCAL Expert in environmental simulation THERMAL SCHOCK - SPIRALE VISION - ENERGIE SAVING

S C A L THERMAL SHOCK 2 or 3 zones, vertical or horizontal The climatic thermal shocks have been designed and developed to meet the strictest test standards with extreme thermal conditions from from 70 to 1500 dm3, 7 FAMILIES OF THERMAL SHOCK The transfer between cabinets is carried out in less than 10 seconds and the samples are subjected to thermal shocks as many times as necessary because the entire SCAL line has a standard fitting of automatic defrosting. The baskets for the vertical shocks are moved using their own linear cylinders fitted with a brake for precise and protected positioning,...

All of our environmental test chambers are controlled by the software Spirale In compliance with European regulations, user safety and sample safety is serially optimised using an emergency stop located on the front face and a mode selection switch (ESS/Shock), locked by a key. All our equipments protect users when the door is opened by blocking the basket transfer. Spirale Vision allows you to control all your equipments. As standard supply you have: ► an extra wide touch screen (15"), Production: simple, clear and functional Standard: a multi-purpose level Laboratory: oriented towards advanced...

S C A L THERMAL SHOCK EQUIPMENT COMMON TO ALL OUR LINES : STANDARD Software Spirale Vision + Energy Saving Cold cabinet calibration points 10 points (-70/-60/-40/-10/20/40/60/100/125/150 °C) Homogeneity from +/-0.5 to +/-2 °C Hot cabinet calibration points Programming (3 different modes) Standard Shock Guaranteed segment time shock (wait for) Energy saving shock ESS (Environmental Stress Screening) Air sensor/basket sensor/product sensor Automatic defrosting « Use in manual mode » function Function indications on the door, on the front face « Mains/On/Fault » Automatic door locking coupled to...

2 CABINETS SINGEL BASKET The core line SCAL CTR The central series in the line. Meets the majority of laboratory tests. Basket volume Max cold cabinet temperature (°C) Min/Max hot cabinet temperature (°C) Maximum authorised load on the basket (kg) Number of cabinets Available power at 20 °C (kW) Cold cabinet volume (litre) Min cold cabinet temperature (°C) Basket volume (litre) Cold cabinet size W x D x H (mm) Technical data Maximum recovery time in thermal shock mode (min) (basket sensor) from +150 °C to -65 °C when empty from +150 °C to -65 °C with a 10 kg load from +150 °C to -65 °C with a...

Intermediate cabinet (surrounding temp. of +5 to +20 °C standard) is either inert, ventilated or cooled. Maximum recovery time in thermal shock mode (min) (basket sensor) from +150 °C to -65 °C when empty 7 from +150 °C to -65 °C with a 10 kg load 10 from +150 °C to -65 °C with a 40 kg load 14 from +150 °C to -40 °C when empty 5 from +150 °C to -40 °C with a 10 kg load 7 from +150 °C to -40 °C with a 40 kg load 10 ESS mode in cold cabinet from +150 °C to -60 °C (°C/min) Speed according to standard IEC 60068-3-5 10 Actual point to point speed 9 Performances indicated with a water condenser (air...

SCAL CTK Developed for high capacity laboratory tests. Basket volume SCAL CTH2 The only line to offer such high capacity thermal shocks. Especially used in the automotive industry. BASKET HIGH CAPACITY Basket volume SCAL CTY For tests requiring a passage to ambiant temperature. Basket volume SCAL CTH3 Its original design, with two trolleys one inside the other, guarantees a perfect seal. Basket volume PASSAGE to SURROUNDING TEMP. SCAL CTZ Double basket thermal shocks are used to double the test volume capacity. Basket volume SCAL CTHZ The horizontal version, with 3 cabinets and 2 baskets, doubles...

Europe Asie Amérique Afrique 06/2021 - specications modiable without notice, not contractually binding. At the core of the Climats development strategy, Export relies on a wide-ranging network of intercontinental distributors. Our partners market and service Climats equipment all over the world; they are fully skilled in our technology and fully committed to a long-term relationship. Technopole Bordeaux Montesquieu - 2-4 Allée Jacques Latrille - CS 50067 - 33650 MARTILLAC Tél. +33 (0)5 56 20 25 25 [email protected] - www.climats-tec.com Photo credits: © Adobe Stock - World map: designed...
