UNWRAPPER MACHINE

Product catalog summary
Description
This document describes the UN3 Unwrapper Machine developed by CLEVERTECH, designed to automatically feed seamers or conversion presses with metal ends packed in shrink-wrap plastic film. It can handle standard, sanitary, and easy open ends in various sizes. The machine features a single Leister cutting system that cuts the plastic film from both the top and ends of the stick. The ends are supported throughout the process to ensure stability. The machine includes an automatic release system for the film rollers and a pressure sensor to halt feeding in case of line issues. A vacuum system collects waste plastic film, and setup times are minimized. The machine is available in both dry (UN3) and wet (UN3 W) versions.
Technical Specifications
  • Ends Type: Standard, sanitary, easy open
  • Size Ends: 52mm to 153mm
  • Length of Sticks: 250mm to 800mm
  • Production Rate: 6 sticks/min
  • Utilities: 400V, 6Bar
  • Weight: 1000kg
  • Dimensions: 1990x2200x2115mm
Optional Features
  • Double Leister cutting system for improved cutting performance
  • Plastic shrinker unit to reduce volume
  • Device to detect reverse end presence
  • Extra large hopper to increase line autonomy
See more

Catalog excerpts

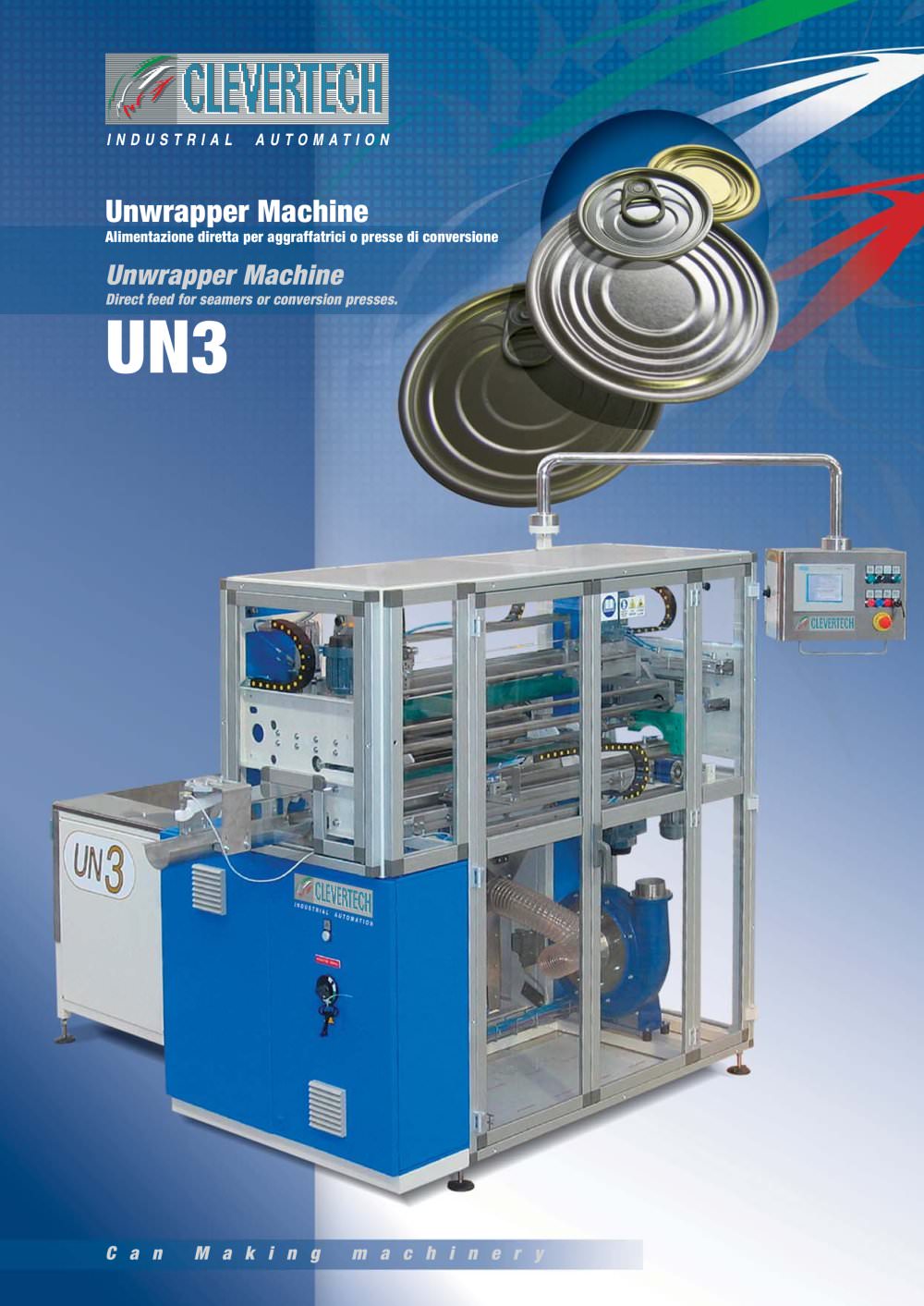

UNWRAPPER MACHINE-1

UN3 Unwrapper Machine Alimentazione diretta per aggraffatrici o presse di conversione Unwrapper Machine Direct feed for seamers or conversion presses. C a n M a k i n g m a c h i n e r y

 Open the catalog to page 1
UNWRAPPER MACHINE-2

Unwrapper Machine UN3 Alimentazione diretta per aggraffatrici o presse di conversione DESCRIZIONE Questa nuova macchina è stata sviluppata da CLEVERTECH per alimentare automaticamente aggraffatrici o presse di conversione con coperchi imballati in film plastico termoretratto. La UN3 UNWRAPPER MACHINE può lavorare indifferentemente con coperchi standard, easy open e sanitari in diversi formati. La Unwrapper è dotata di una singola lama Leister che taglia il tubo coperchi sia sul lato superiore che alle due estremità. Durante la totalità delle movimentazioni il tubo coperchi è sempre mantenuto...

 Open the catalog to page 2
