ENDS HANDLING

Product catalog summary
Overview: The document provides a detailed description of various machinery and systems used in the can-making industry, specifically focusing on equipment for handling ends (can lids). It outlines the specifications, functionalities, and benefits of each system, emphasizing automation and efficiency improvements.
1. TS 12/13 Autoflow System: This system automates the loading and unloading of ends line machines, storing ends in metallic trays to create inter-operational magazines. It has been in use for over 15 years to enhance efficiency and reduce production costs. The system supports both static and dynamic configurations with a flow output of 6000 epm.
2. Seamers Feeding Line:
  • UN3 Unwrapper Machine: Automatically feeds seamers with metal ends packed in shrink wrap plastic film. It handles standard, sanitary, and easy-open ends of various sizes.
  • TS 13 Autofeeder: Feeds seamers with metal ends stored in trays, suitable for can producers as it simplifies handling without auxiliary packaging.
3. TS 12 Autopacker: Automates the unloading of ends lines and stores components in metallic trays, facilitating handling for can producers without the need for auxiliary packaging.
4. TS 14 Wrapping Machine: Automatically wraps ends with a micro-perforated plastic film, handling various end types and sizes. It ensures accurate counting of ends with a precision of ±1.
5. TS 28 Snake Palletiser: Automates the palletization of ends' sleeves using a plastic film in a snake arrangement for stability.
6. TS 06/09/02 Autopressa System: Automatically delivers scrolled strips from scroll shear to double die press, adaptable for integration with existing layouts.
Contact Information: CLEVERTECH S.r.l., Via Brodolini,18/A, 42020 Cadelbosco Sopra (Reggio Emilia) - Italy. Tel: +39 0522-911330, Fax: +39 0522-911201, Website: www.clevertech.it, Email: [email protected]
See more

Catalog excerpts

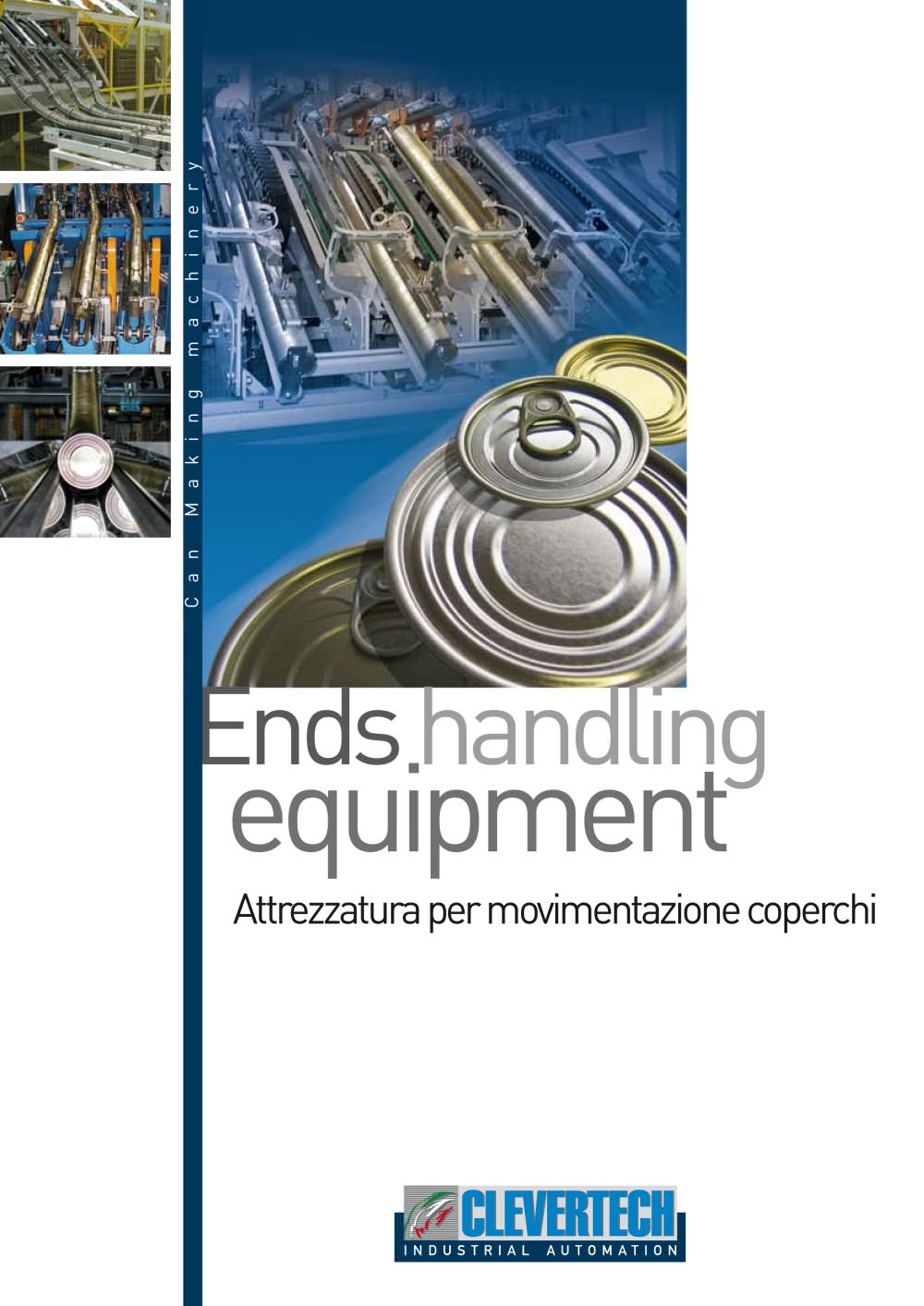

ENDS HANDLING-1

Ends handling equipment C a n M a k i n g m a c h i n e r y Attrezzatura per movimentazione coperchi

 Open the catalog to page 1
ENDS HANDLING-2

canmakingmachinery Autoflow Alimentatore de-alimentatore coperchi TS12/13 Il Sistema TS 12/13 Autoflow consente la dealimentazione e l’alimentazione in automatico delle macchine di processo nelle linee coperchi. Tale sistema consente inoltre di stoccare i coperchi all’interno di vassoi metallici per poter creare dei magazzini interoperazionali. Il sistema Autoflow è da più di 15 anni universalmente utilizzato per incrementare l’efficienza e ridurre i costi di produzione delle linee coperchi. Press feeding line STRIP STEAKER TS06 STRIPS PACK TRANSFER TS09 LOADER UNIT PRESS TS02 Scrool shear Press...

 Open the catalog to page 2
ENDS HANDLING-3

Unwrapper Machine Alimentazione diretta per aggraffatrici Autofeeder Alimentatore diretta per aggraffatrici UN 3 TS13 Seamers feeding line MACHINE MODEL MATERIALS ENDS DIAM SLEEVE LENGHT OUTPUT mm mm Packs/minute UN3 S Steel/alluminium 52-99 400-800 6 UN3 D Steel/alluminium 52-99 400-800 8 MACHINE MODEL MATERIALS ENDS DIAM STORAGE CAPACITY FLOW OUTPUT mm epm TS13 Steel/alluminium 52-99 Unlimited 6000 Il Sistema UN3 consente l’alimentazione automatica delle aggraffatrici con coperchi imballati in film plastico. La UN3 unwrapper machine può lavorare indifferentemente con coperchi standard, easy...

 Open the catalog to page 3
ENDS HANDLING-4

TS12 Autopacker Dealimentazione Automatica linee coperchi MACHINE MODEL MATERIALS ENDS DIAM SLEEVE LENGHT OUTPUT mm mm Packs/minute TS 14 BASE Steel/alluminium 52-99 250/800 6 TS 14 HS Steel/alluminium 52-99 250/800 8 TS 14 HS Steel/alluminium 52-99 250/800 9 MACHINE MODEL MATERIALS ENDS DIAM STORAGE CAPACITY FLOW OUTPUT mm epm TS12 Steel/alluminium 52-99 Unlimited 6000 Il Sistema TS 12 Autopacker consente la dealimentazione in automatico delle linee coperchi e lo stoccaggio dei componenti in appositi vassoi metallici. Tale sistema è particolarmente indicato per i produttori di barattoli in quanto...

 Open the catalog to page 4
ENDS HANDLING-5

Il sistema TS 28 Snake palletiser consente di eseguire in automatico la palettizzazione degli involucri di coperchi. Il processo di palettizzazione è realizzato per mezzo di un film plastico che viene posizionato tra gli involucri con la caratteristica disposizione snake che conferisce al pallet la necessaria stabilità. TS28 The TS 28 Snake palletiser allows to automatically palletise ends’ sleeves. The process of palletising is realized by a plastic film placed between sleeves in the typical “snake” arrangement that gives the necessary stability to the pallet. TS 06/09/02 Press feeding line...

 Open the catalog to page 5
ENDS HANDLING-6

C a n M a k i n g m a c h i n e r y CLEVERTECH S.r.l. Via Brodolini,18/A 42020 Cadelbosco Sopra (Reggio Emilia) - Italy Tel. +39 0522-911330 Fax +39 0522-911201 Web site : www.clevertech.it E-mail : [email protected]

 Open the catalog to page 6
