DC Truck Vibrators

Product catalog summary

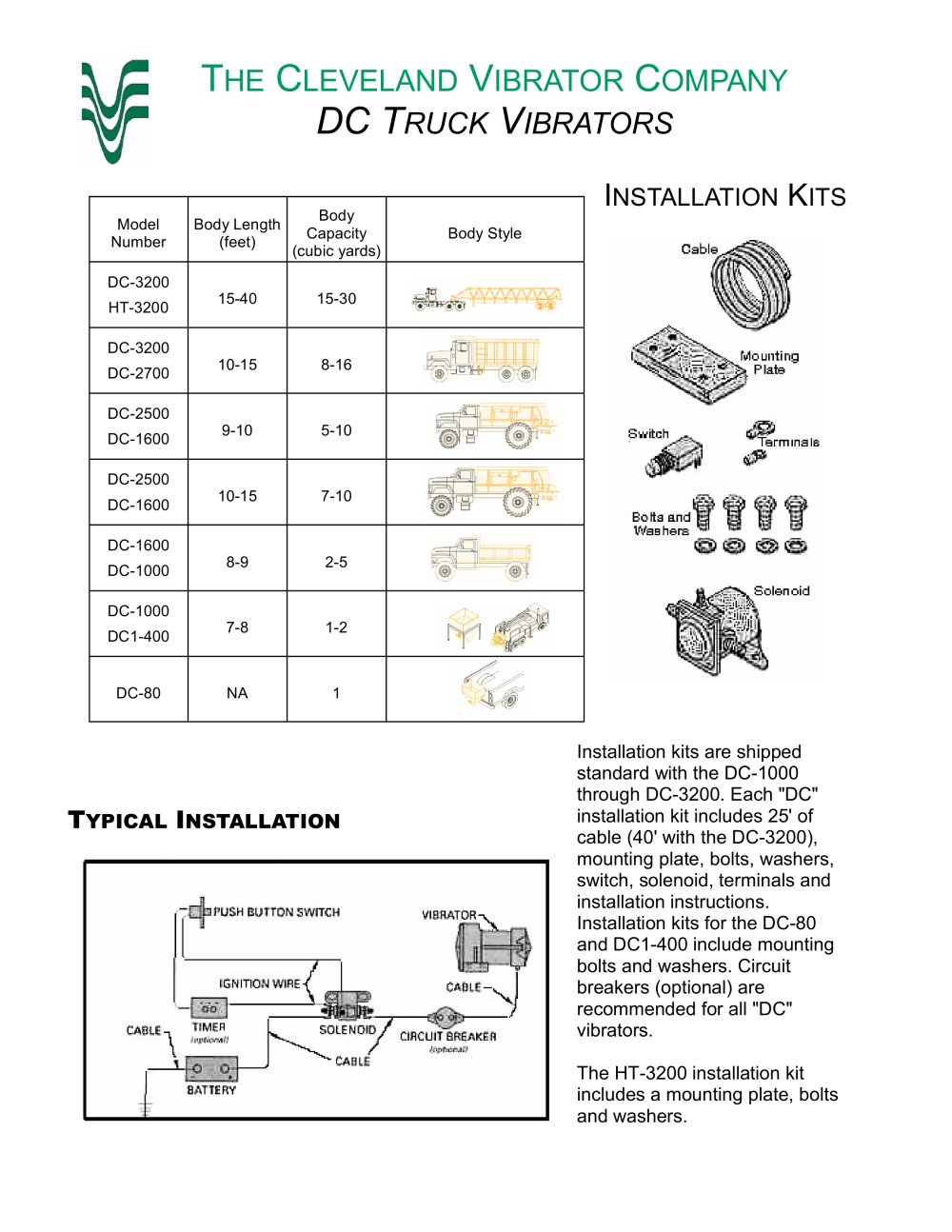

Overview: This document provides technical specifications and installation details for various models of truck vibrators manufactured by The Cleveland Vibrator Company. The models include DC-3200, DC-2700, DC-2500, DC-1600, DC-1100, DC-1000, DC1-400, DC-80, and HT-3200.

Specifications:

Body Length and Capacity: The body length ranges from 7 to 40 feet, and the capacity ranges from 1 to 30 cubic yards, depending on the model.
Performance: The vibrators operate at 12 V with varying amperage, maximum RPM, force, and offset weight. For example, the DC-3200 model operates at 85 amps, 4000 RPM, with a force of 3200 lbs and an offset weight of 7.0 in. lb.
Dimensions: Each model has specific dimensions for installation, including foot dimensions and bolt specifications.

Installation Kits:

Standard installation kits are provided with models DC-1000 through DC-3200, including cables, mounting plates, bolts, washers, switches, solenoids, terminals, and instructions.
Models DC-80 and DC1-400 include mounting bolts and washers only.
The HT-3200 kit includes a mounting plate, bolts, and washers.

Optional Equipment: Additional equipment such as cables, timer enclosures, circuit breakers, and continuous duty kits are available upon request.

Contact Information: For further inquiries, contact The Cleveland Vibrator Company at their Cleveland, OH address or through their provided phone numbers and email.
