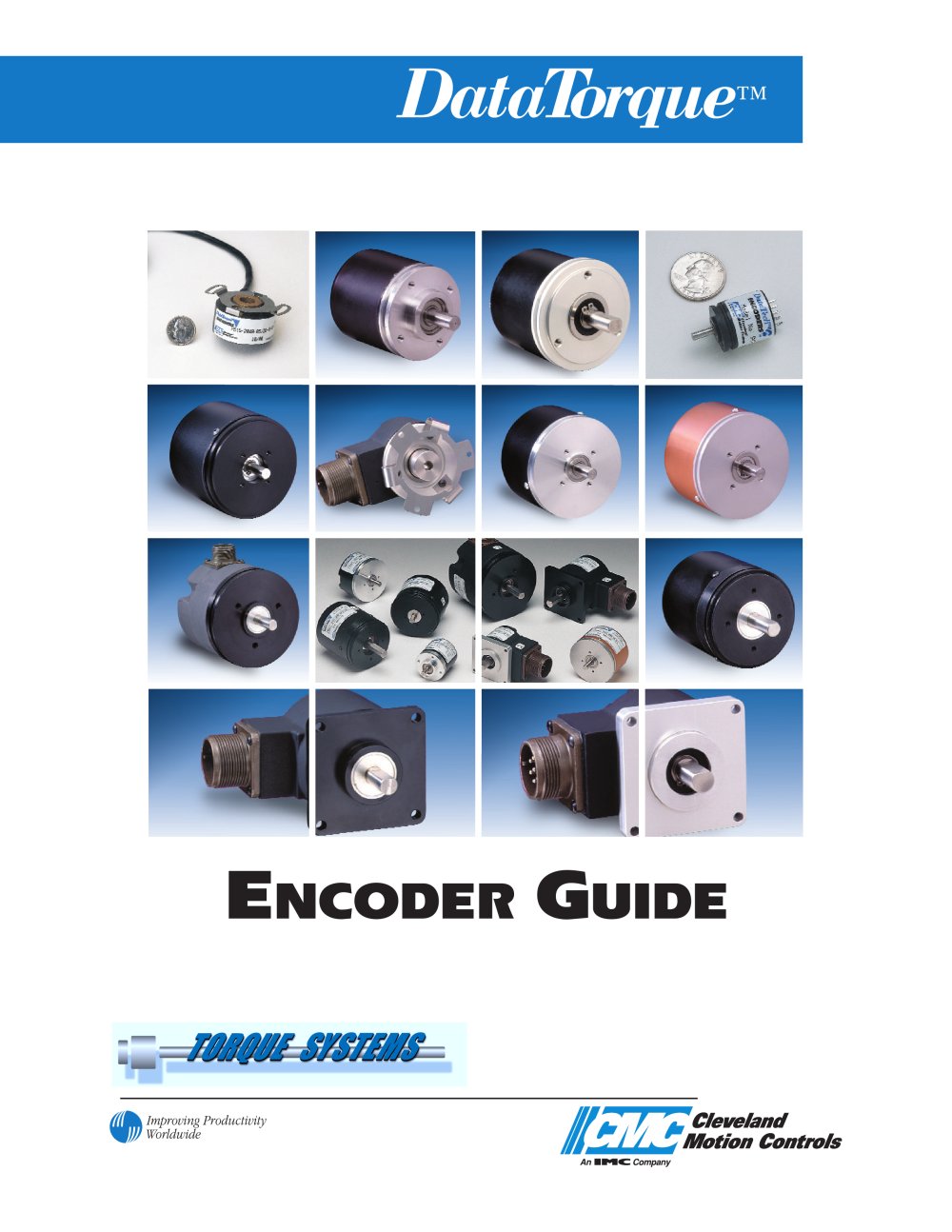

Encoder Product Guide

Product catalog summary

Overview: The Encoder Guide provides detailed specifications and options for a range of rotary incremental encoders offered by CMC Torque Systems. These encoders are designed for various industrial applications, offering solutions for position and control requirements.

Encoder Specifications:

HS15 Hollow Shaft Encoder: Resolution up to 5000 CPR, input voltage 5 to 26 VDC, outputs A, B & Z, line driver option, frequency 500 KHz, bore size 0.25 in. to 10 mm.
SM16 Shaft Encoder: Resolution up to 2500 CPR, input voltage 5 to 24 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, shaft loading 10 lbs, CE compliant, IP65 rating.
SM7 Hollow Shaft Encoder: Resolution up to 2048 CPR, input voltage 5 to 26 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, miniature precision.
SM15 Shaft Encoder: Resolution up to 2500 CPR, input voltage 5 to 24 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, CE compliant, light industrial use.
SM23 Shaft Encoder: Resolution up to 2500 CPR, input voltage 5, 12 & 15 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, shaft loading 10 lbs, multi-purpose.
RS23 Shaft Encoder: Resolution up to 2500 CPR, input voltage 5, 12 & 15 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, CE compliant, instrument grade.
DT20 Shaft Encoder: Resolution up to 2500 CPR, input voltage 5 to 24 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, shaft loading up to 80 lbs, IP65 rating, CE compliant, heavy industrial use.
FM20 Flexmount Encoder: Resolution up to 2500 CPR, input voltage 5 & 24 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, hub bore 0.25 in. to 0.5 in., IP65 rating, CE compliant, heavy industrial use.
DT25 Shaft Encoder: Resolution up to 5400 CPR, input voltage 5, 12 & 15 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, servo or face mounting, CE compliant, heavy industrial use.
OC25/OS25 Shaft Encoder: Resolution up to 5400 CPR, input voltage 5, 12 & 15 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, servo or face mounting, industrial use.
ON25 Shaft Encoder: Resolution up to 5400 CPR, input voltage 5, 12 & 15 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, servo or face mounting, heavy industrial use.
ON35 Shaft Encoder: Resolution up to 5400 CPR, input voltage 5, 12 & 15 VDC, outputs A, B & Z, line driver option, frequency 200 KHz, shaft loading 35 lbs, servo or face mounting, heavy-duty industrial use.

General Recommendations: The guide suggests consulting with Sales & Applications Specialists to ensure the selection of the appropriate encoder for specific application requirements. It also emphasizes the importance of referencing specific data sheets for complete details on each encoder model.

Contact Information: For further inquiries, customers are encouraged to contact CMC Torque Systems via phone or visit their website.

Catalog excerpts

.187.0932.30 ٕ SM23 Shaft Encoder Resolution to 2500CPR Օ Input Voltage 5, 12 & 15VDC Output A, B & Z Օ Option of Line Driver Frequency 200KHz Օ Shaft Loading 10 lbs. Multi-purpose > .690.689.042.2497.24952.112 2.017.62#4-40 UNC-2B x 3/16 DEEPEQUALLY SPACED ON A 1.000 DBC .187.093#4-40 SCREW TERMINALS#4-40 SCREW TERMINALS2.30 Օ RS23 Shaft Encoder Resolution to 2500 CPR Օ Input Voltage 5, 12 & 15VDC Output A, B & Z Օ Option of Line Driver Frequency 200KHz Օ CE Compliant Instrument Grade > .690.689.042.2497.24952.112 2.25.62#4-40 UNC-2B x 3/16 DEEPEQUALLY SPACED ON A 1.000 DBC 2 1345678910 213456...

Open the catalog to page 3

.201 DIA4 PLACES, ON A 2.920 DIA. B.C. FLANGE MOUNT > .047 .750.25 +.0000 .0002.3747 > O A .002 2.502.94 > .001 -A- FACE MOUNT OPTION +.0000֖.00021.2500 .87.300 > #10-32UNF-2B X .180 DP3 HOLES EQUAL SPACED ON 1.875 DIA. B.C. 2.502.94 2.50REF 1.752.54 MAX > .937 NOMINALOPTIONAL CONNECTOR LOCATION SERVO MOUNT .3002.31 .100.110 > 2.31302.3120DIA DIAOS25 = .515OC25 = .3270.500 FACE MOUNTING: #4-40 NC-2BTHRD x .187 DP .4 PLACES EQUALLY SPACED 90ҋ ON A 1.00ڔ DBC 2.50 DIAOS25 = 2.41OC25 = 2.19.2497.24960.0930.1870.28 #10-32UNF x.38 DEEP(3) PLACES EQUALLY SPACED 120Ջ APART ON A 1.875 DBC

Open the catalog to page 4
