Overview: Jerguson® Gage and Valve is a leading supplier of level gaging products, offering a wide range of liquid level gage glasses, magnetic gages, and accessories. Their products are used in various applications, from historical vehicles to modern nuclear aircraft carriers. Jerguson provides a comprehensive selection of both traditional glass and magnetic-type gages, ensuring solutions are tailored to customer needs.

Liquid Level Indication & Control: Jerguson offers a variety of technologies for level measurement, including Tuning Fork Frequency Shift, Ultrasonic Gap, Displacer, Non-Contact Ultrasonics, and Capacitance Technologies. These technologies cater to nearly any type of level application, supported by in-depth application knowledge and custom-engineered solutions.

Product Specifications:

Transparent Glass: Provides reliable, accurate liquid level indication with features like recessed gasket surfaces and shrouded covers. It meets ASME/ANSI/NACE standards and is suitable for pressures from 300# ANSI to 10,000 psi and temperatures from cryogenic to 800F.
Magnetic Level Gages: Offers indirect reading with no glass contact, reducing emissions. Suitable for critical service applications with a variety of materials and mounting configurations.
Reflex Glass: Provides bi-color liquid level indication with low maintenance and similar specifications to transparent glass.

Switches and Transmitters:

RS-2 Point Level Switch: Hermetically sealed with continuous 1 Amp @ 130 VDC/VAC, UL/CUL/CE/ATEX approved.
SAS-16 Point Level Switch: Snap action latching switch with high reliability and resistance to vibration, rated 16 Amps @ 120 VAC.
Reed Switch Transmitter: Low-cost loop powered for remote indication, UL/CUL approved.
Magnetostrictive Transmitter: Loop powered with HART Protocol Standard, FM approved, and easy calibration.

Advanced Features:

EPL-100 Illuminator: High-intensity, maintenance-free LED illuminator for transparent and level gages, FM approved.
LevelStar Indicator: Bi-Color LED Indicator for Magnicator II® line, providing superior visibility and reliability.

After Market Services: PLANT-OP Centers provide professional service, repair, and sales facilities specializing in level indication and control, supported by Clark-Reliance.

Agency Approvals: Products are designed to meet customer specifications and conform to established quality standards, with approvals from FM, CSA, CE, ATEX, and PED.

Catalog excerpts

Instrumentation and Controls Group >

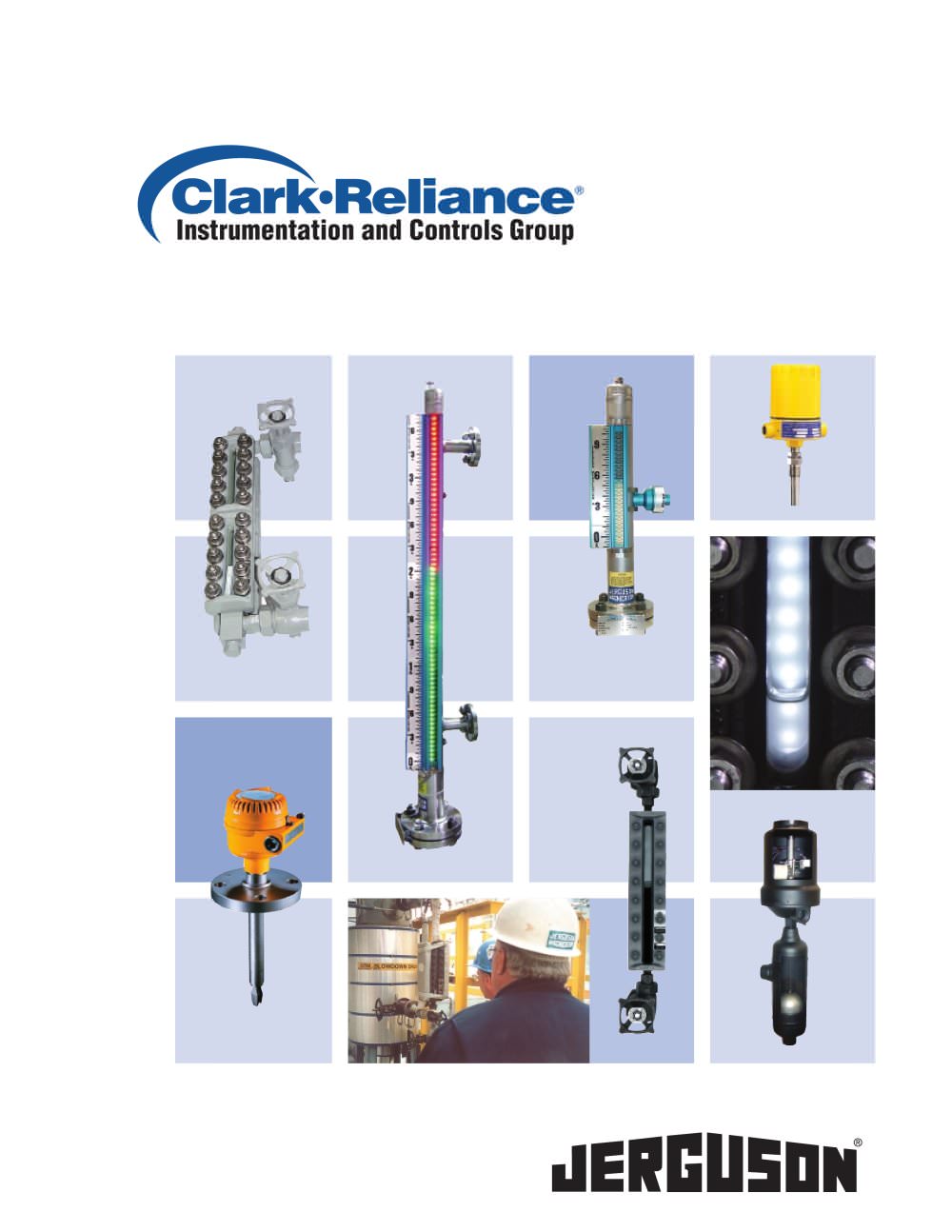

Open the catalog to page 1

LIQUID LEVEL INDICATION & CONTROL > LEVEL & FLOW INSTRUMENTATION > SIGHT FLOW INDICATORS BOILER INSTRUMENTATION >

Open the catalog to page 2

Features: Recessed Gasket Surface Օ Shrouded Covers Features: Meets ASME/ANSI/NACE Standards Օ No glass in contact with process Complete line of safety shut off valves available Օ Reduced fugitive emissions Meets ASME/ANSI B31.1/B31.3 Capabilities: Օ Sch. 40 Chamber Standard Construction Pressures from 300# ANSI to 10,000 psi Օ Temperatures from cryogenic to 800F Capabilities: Large Volume Chambers Available Օ Critical Service Applications Available with a wide variety of connection Օ Wide variety of materials available configurations Օ Wide variety of mounting configurations and Custom Engineered...

Open the catalog to page 3

CLARK RELIANCE CORPORATION 16633 FOLTZ INDUSTRIAL PARKWAY STRONGSVILLE, OHIO 44149 U.S.A.PHONE +1 (440) 572-1500 Օ FAX +1 (440) [email protected] www.clark-reliance.com >
