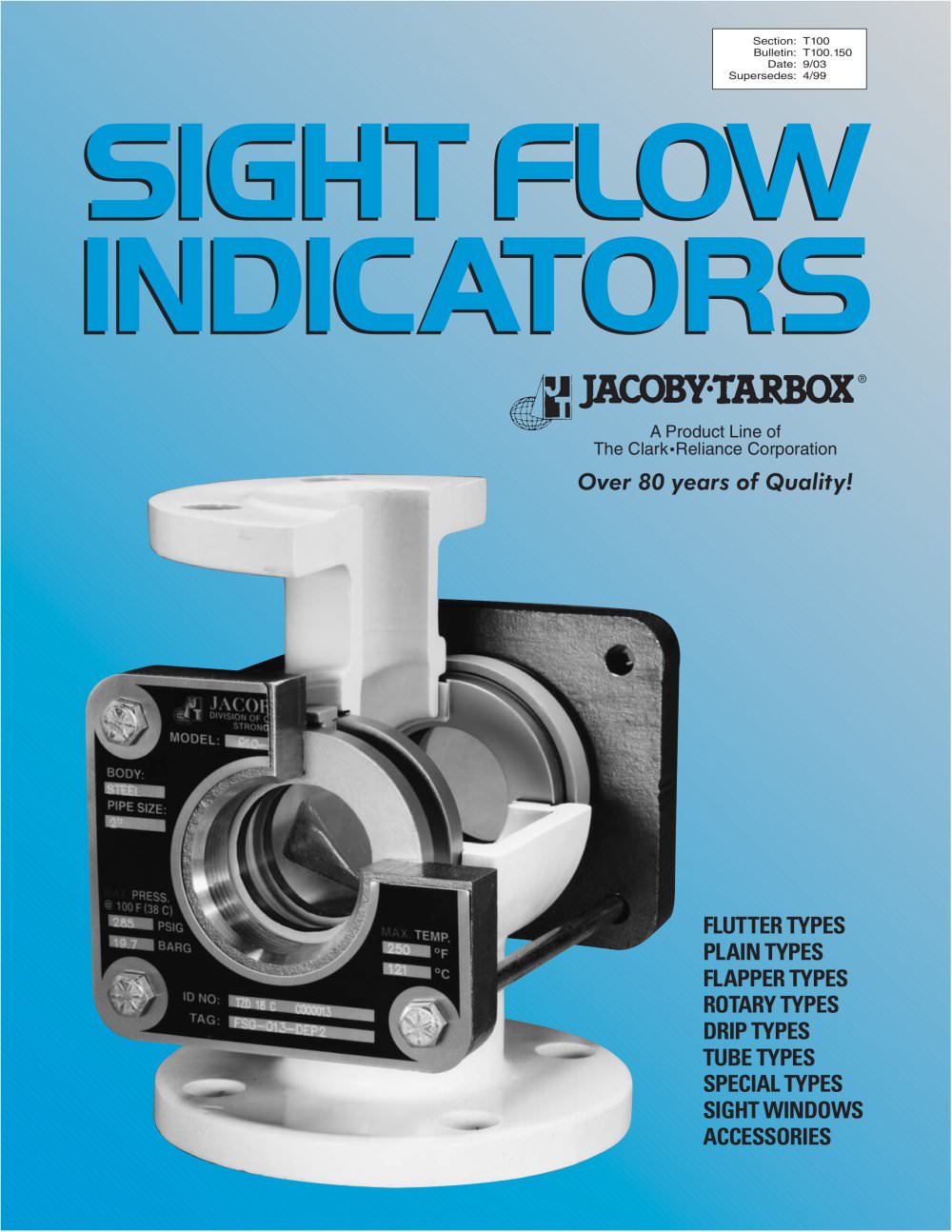

Catalog T100-T150

Product catalog summary

Overview: Jacoby-Tarbox Sight Flow Indicators, produced by The Clark-Reliance Corporation, are versatile devices suitable for a range of applications, from standard to extreme conditions. They come in various styles and sizes, with options for different connection types and pressure ratings.

Types of Indicators:

Flutter Types: Designed for low volume flow applications.
Plain Types: Compatible with any flow direction.
Flapper Types: Best for horizontal or upward vertical flow.
Rotary Types: Suitable for any flow direction, particularly for dark solutions.
Drip Types: Ideal for downward vertical flow, commonly used in distillation systems.
Tube Types: Offer maximum visibility for low pressure vertical or horizontal flow.
Special Types: Include jacketed models for temperature control and sanitary models for sterile processing lines.

Materials and Construction: Indicators are constructed from materials such as stainless steel, alloy, carbon steel, and PVC. They may include corrosion-resistant linings and various window materials like borosilicate glass or UniGlas for enhanced durability.

Pressure Ratings: Available for low, medium, and high-pressure applications, with ratings ranging from full vacuum to 3000 PSIG. They are classified as nominal or full ASME rated.

Accessories and Enhancements:

LED Tank Lights: Phaeton Series Tank Lights provide bright, energy-efficient illumination.
Window Shields: Protect windows from corrosive substances using materials such as Kel-F, Mica, and PFA.
Gasketing Options: Various materials ensure compatibility with different fluids and conditions.

Special Features:

UniGlas Windows: Offer superior impact resistance and safety.
Dual Glass Windows: Enhance safety for hazardous fluid systems.
Security Sight Windows: Provide additional protection against mechanical and environmental stresses.

Catalog excerpts

ROTARY STYLE TUBE STYLEDRIP STYLEFLAPPER STYLE SPECIALBALL STYLE >

Open the catalog to page 2

Low Pressure to 150 PSIG Medium Pressure 150 Class Full ASME Rated > 830-F: Nominal Pressure Rated 830-FD (Tube/Drip): Nominal Pressure Rated830-FL (Extra Length): Nominal Pressure Rated830-FDL (Extra Length): Nominal Pressure Rated F-608SJA: Drip F-910SJA: FlapperF-910SJA(NF): Plain (No-Flapper) > Style 100-S-FLTRwith threaded endconnections Style 90-D Anglewith flangedend connections Style 90-F Anglewith flangedend connections Style 4000-SCylindrical SheathedTube with threadedend connectionsStyle 860-FCylindrical SheathedTube with flangedend connections Medium Pressure to 150 PSIG 90: Nominal...

Open the catalog to page 4

Style W-5000Weld NeckSight Window Style S-5100Threaded SightWindow Style 5200 WeldPad Sight Window Style 5200-PVQPressure VesselSight Window,RoundStyle 5300Pressure VesselSight Window,Obround ή High Pressure to 600 PSIG 5005-DW, Nominal Pressure Rated High Pressure 5005-DWA, Full ASME Rated > High Pressure to 600 PSIG*Nominal Pressure Rated 5200-PVQ: Round, Flat Pad5200-PVQCYL: Round, Cylindrical Pad5200-PVQSPH: Round, Spherical Pad 5300-PVQ: Obround, Flat Pad 5300-PVQCYL: Obround, Cylindrical Pad 5300-PVQSPH: Obround, Spherical Pad Medium Pressure to 150 PSIGNominal Pressure Rated W-5000: Weld...

Open the catalog to page 6
