Specification sheet Clark GTX 16-20s

Specification sheet Clark GTX 16-20s

Product catalog summary

Specifications:
The document provides detailed specifications for the GTX16/18/20s electric forklifts by CLARK Europe GmbH. These forklifts have a load capacity of 1,600 kg, 1,800 kg, and 2,000 kg respectively. The forklifts are equipped with AC drive motors and feature superelastic tires (SE). The technical data is subject to standard tolerances and may vary with different configurations or under different conditions.

Dimensions:
The document includes detailed tables of dimensions for various mast configurations, including standard, triplex, and HI-LO masts. Key dimensions such as lift height, mast height, and free lift are provided for each configuration.

Technical Data:
The technical data section outlines the specifications for the standard-equipped forklift with a standard free-view mast. It includes information on weight, axle load, tire size, and motor performance. The forklifts are powered by 48V AC motors, providing robust performance and low maintenance costs.

Driver's Compartment:
The driver's compartment is ergonomically designed with features such as an adjustable steering column, a comfortable seat, and an intuitive control layout. The compartment includes a TFT-LCD display for real-time operational data and programmable operating modes for different work situations.

Motor, Drive, and Control:
The forklifts feature two AC drive motors with 4.4 kW each, providing excellent acceleration and push force. The ZAPI DUAL-AC control system is integrated into the counterweight and features modern MOSFET and CAN-Bus technology for efficient operation.

Braking System:
The forklifts are equipped with three independent braking systems: electric brakes, service brakes, and parking brakes. The electric brakes are regenerative, returning energy to the battery during braking, which extends battery life and reduces energy costs.

Steering System:
The forklifts have a dual-wheel steering axle for improved stability and maneuverability. The steering system adjusts the speed and direction of the front wheels based on the steering angle to minimize tire wear.

Hydraulic System:
The hydraulic system features an independent, electrically driven pump with AC technology, ensuring energy-efficient operation. The system includes a full-flow return filtration and a steel hydraulic tank for effective heat dissipation.

Mast:
The free-view masts are available in standard, HI-LO, and triplex configurations, providing high strength and durability. The masts include features such as tilt cylinders with pendulum bearings and an integrated tilt lock valve for safety.

Additional Equipment:
Standard equipment includes work lights, an acoustic reverse alarm, and a rear combination light. Optional equipment includes pneumatic tires, side battery exchange, and various attachments.

Safety:
The GTX series is CE-certified and complies with all European safety standards for industrial trucks.

Catalog excerpts

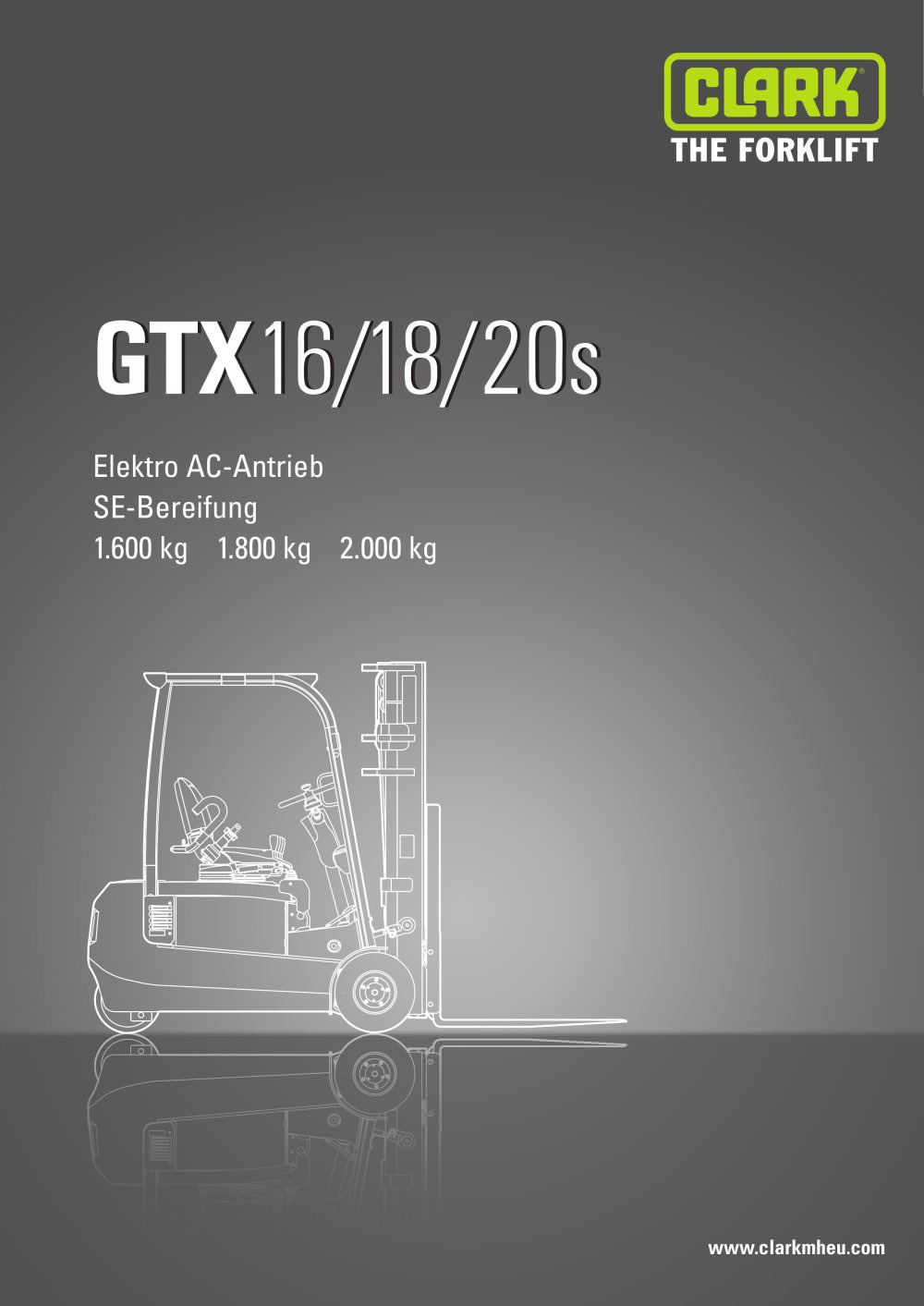

www.clarkmheu.com Elektro AC-Antrieb SE-Bereifung 1.600 kg 1.800 kg 2.000 kg GTX16/18/20s

Open the catalog to page 1

ABMESSUNGEN Die zugehörigen Werte finden Sie unter entsprechenden Zeilennummern in der Tabelle „Technische Daten“ GTX16/18/20s b12 l6

Open the catalog to page 2

TECHNISCHE DATEN Alle aufgeführten Daten gelten für den serienmäßig augestatteten Stapler mit Standard-Freisicht-Hubgerüst. Wird der Stapler mit Sonderausrüstung oder anderen Hubgerüsten versehen, so können sich die Werte ändern. Die Angaben gelten unter normalen Einsatzbedingungen. *1 Weitere Hubhöhen finden Sie in der Hubgerüstübersicht *2 Bei einem Reibungsbeiwert von ì=0,6 bei 1,6 km/h Sonstige Antrieb Leistungsdaten Grundabmessungen Räder, Fahrwerk Gewicht Kennzeichen Technische Daten nach VDI 2198 CLARK CLARK CLARK GTX16 GTX18 GTX20s Elec-48V Elec-48V Elec-48V Sitz Sitz Sitz 1600 1800 2000...

Open the catalog to page 4

Zwei starke AC Fahrmotoren in Parallelfrontantrieb, eine sehr robuste Bauweise ohne unnötige Plastikbauteile und ein extrem kurzer Radstand kennzeichnen die GTX Baureihe der CLARK Europe GmbH. Durch ein stabiles „Build to last“ Hubgerüst und einen durchdachten Fahrerarbeitsplatz ist sie für viele Einsätze geeignet. Fahrerplatz Der Fahrer erreicht seinen ergonomisch gestalteten Arbeitsplatz über eine große, tief angesetzte Lochblech-Trittstufe. Ein Haltegriff am vorderen Holm der Einstiegsseite erleichtert das Auf- und Absteigen. Der Gummi-Bodenbelag im Fußraum gewährleistet Trittsicherheit. Die...

Open the catalog to page 5

CLARK Europe GmbH Neckarstraße 37 D - 45478 Mülheim an der Ruhr Tel. +49 208 377336 0 Fax +49 208 377336 36 email: [email protected] www.clarkmheu.com
