Data sheet CLARK-GEN2 C15-20s

Data sheet CLARK-GEN2 C15-20s

Product catalog summary

Overview
The document outlines the specifications and features of the CLARK C15/18/20s series forklifts, suitable for various material handling tasks. These forklifts are available with Diesel or LPG engines and can be fitted with either pneumatic or solid tires.

Specifications
The forklifts have a load capacity of 1.5 to 2.0 tons and a load center distance of 500 mm. They feature a wheelbase of 1400 mm and service weights of 2785 kg, 3009 kg, and 3156 kg for the C15, C18, and C20s models, respectively. The LPG models use a Mitsubishi 4G63 engine, while the Diesel models use a Yanmar 4TNV88 engine.

Dimensions
The forklifts have a lift height of 3085 mm and an overall length ranging from 3266 mm to 3353 mm. The width is 1070 mm, with a turning radius between 2073 mm and 2154 mm.

Performance
These forklifts can reach travel speeds of up to 18.4 km/h and lift speeds of 0.61 m/s. They are equipped with hydraulic brakes and a robust transaxle system for efficient power transmission.

Operator Comfort and Control
The operator compartment is designed for comfort, featuring a spacious layout, adjustable seat, and tilt steering column. The instrument panel includes a full LED/digital display with engine monitoring and diagnostics.

Engine and Accessories
The LPG engine is a 2.0-liter Mitsubishi model, and the Diesel engine is a 2.2-liter Yanmar model, both designed for low maintenance and long service life. The forklifts include a high-capacity air cleaner and automatic dirt ejector.

Transaxle
The CLARK Model TA-12 transaxle features a single-speed, full reversing, powershift design with a high ratio torque converter and full-floating drive axles, offering smooth operation.

Brakes
The forklifts feature self-energizing, hydraulic-actuated drum and shoe type service brakes with a two-pedal system. The brakes are asbestos-free and easily accessible for maintenance.

Hydraulics
A single gear-driven pump provides hydraulic fluid for functions and steering, with a priority-demand steering system to conserve energy.

Steering
The steering system is full hydrostatic with a tilt wheel, ensuring durability and ease of service.

Upright
High visibility uprights are available in standard, Hi-Lo, and triple stage, featuring hydraulic cushioning and safety features.

Additional Features
The forklifts include a single auxiliary valve, headlights, and a high load backrest. Maintenance is simplified with a one-piece hood and removable floorplate.

Available Equipment
Options include auxiliary valves, sideshifters, hydraulic controls, lighting, mirrors, and seat options.

Catalog excerpts

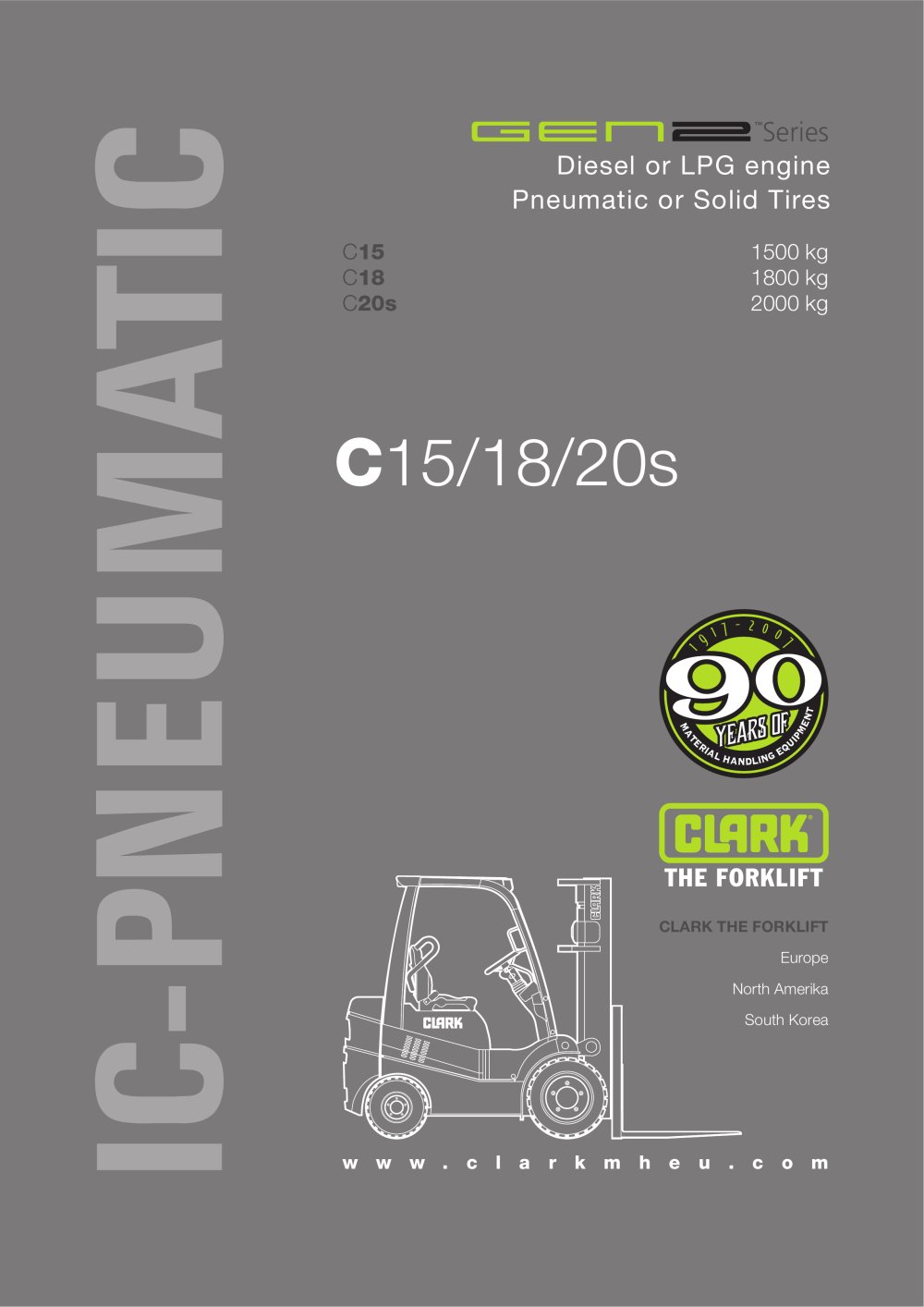

CLARK THE FORKLIFT EuropeNorth AmerikaSouth Korea IC-PNEUMATIC www.clarkmheu.com size="-1">

Open the catalog to page 1

Available Equipment Various auxilliary valves and hose adaptations, sideshifters, hydraulic control options, stop/tail/backup lights, rear work light, turn signal lights, strobes, backup alarm, mirrors, convenience console, various seat options, air cleaner safety element, and pre-cleaner. Additional Features Single auxiliary valve, two headlights mounted on the overhead guard, and a 48 high load backrest. The auxiliary hydraulic flow can be easily adjusted at the main valve to suit various attachments. With the one-piece hood and quickly removable floorplate, all routine maintenance checkpoints...

Open the catalog to page 6
