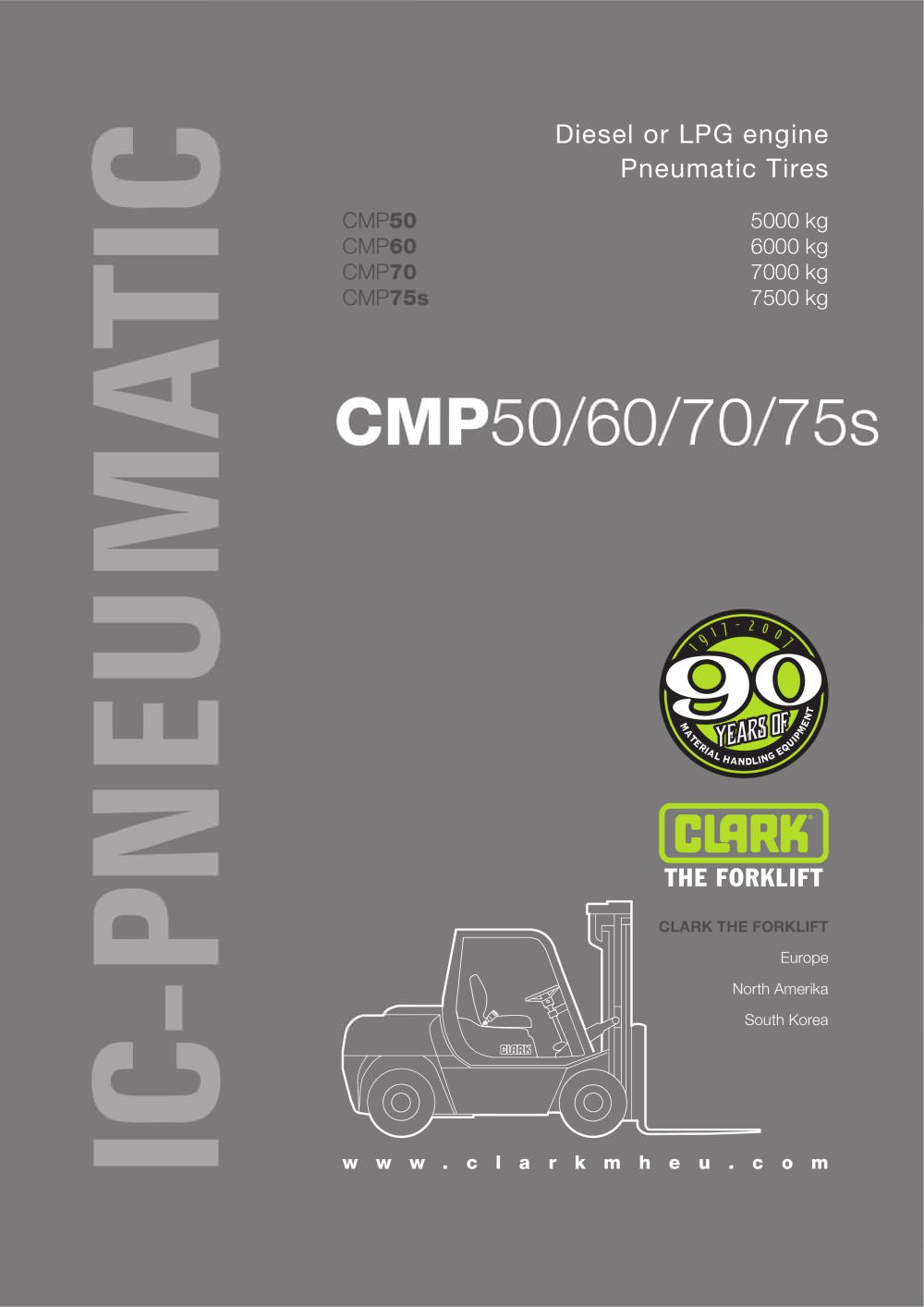

Data sheet Clark-CMP50-75s

Product catalog summary

Overview: The CLARK CMP 50/60/70/75s series are robust pneumatic tire trucks designed for demanding applications like building materials handling and warehousing. They feature diesel or LPG engines and CLARK-Hurth 3-speed powershift transmissions.

Specifications: These trucks have load capacities from 5000 kg to 7500 kg with a load center distance of 600 mm. They are powered by a Perkins 1004.42 Series diesel engine, known for low smoke emissions and fuel efficiency. The service weight ranges from 8350 kg to 9725 kg.

Dimensions: The trucks have a wheelbase of 2200 mm, with varying overall lengths and widths. Detailed measurements for lift heights and dimensions are provided in the upright table metrics.

Performance: Capable of reaching travel speeds up to 25.6 km/h and lift speeds up to 0.47 m/s, these trucks are built to handle maximum loads under severe conditions. Features include an oil cooler for transmission longevity and a heavy-duty ZF planetary drive axle for enhanced tractive effort.

Operator Control & Comfort: The operator cell is designed to minimize vibration and noise. Features include a two-pedal inchbrake system, adjustable seat, and high visibility upright and overhead guard. The operator display provides various performance indicators and gauges.

Brakes & Steering: Equipped with hydraulic-operated service brakes and a disc/caliper-type parking brake, the steering system includes a heavy fabricated steer axle with an integral double-acting steer cylinder.

Additional Features: The trucks feature a clamshell hood for easy service access and a removable single-piece floor panel. The transmission includes hydraulic modulation and cushioning for smooth operation.

Steering System: The steering system uses single-piece steer knuckles with tapered roller bearings for durability and low maintenance. It operates hydrostatically, reducing mechanical links and eliminating kick-back, with 'silent block' cushion mounts for shock absorption.

Hydraulic System: Powered by a single transmission-driven pump, the hydraulic system includes a full-flow filter for continuous filtration. The hydraulic tank is integrated with the frame for heat dissipation, with a capacity of 29 U.S. gallons (110 liters).

Upright Assembly: Designed for high visibility, the upright assembly features an interlocking rail/nested roller design for strength and tolerance to unbalanced loads. It includes a negative rail drop for easy roller adjustment and hydraulic counterbalance valves for safe operation.

Additional Features/Available Equipment: Standard features include high visibility CLARK Green color, recessed towpin, built-in lift eyes, and various lights and signals. Optional equipment includes an integral sideshifter, steel cab with heater, and additional safety and operational features.

Contact Information: For more information, contact CLARK Europe GmbH at Neckarstraße 37, D - 45478 Mülheim an der Ruhr, Tel. +49 208 377336 0, Fax +49 208 377336 36, email: [email protected], or visit www.clarkmheu.com.
