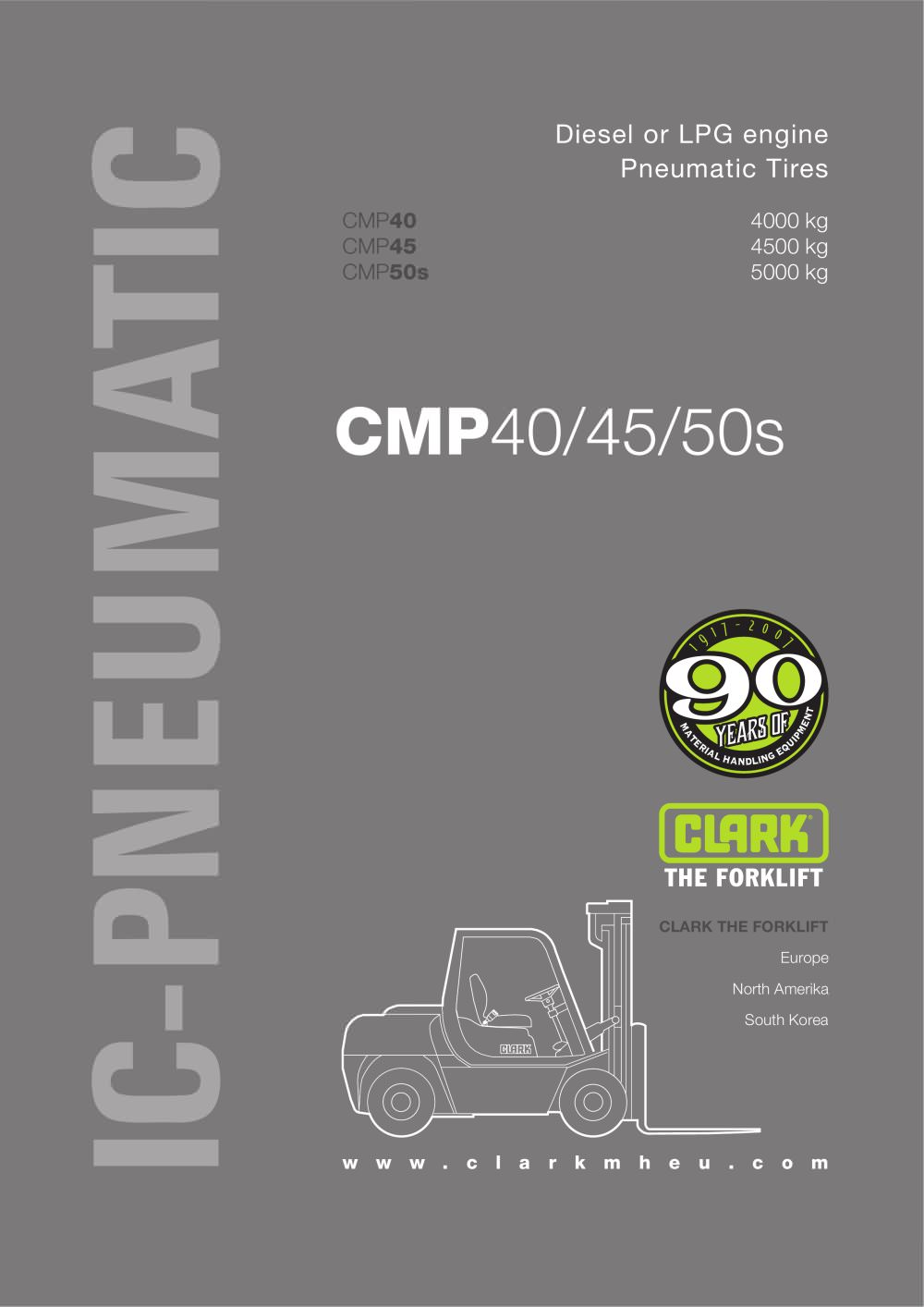

Data sheet CLARK-CMP40-50s

Product catalog summary

Overview: The document outlines the specifications and features of the CLARK CMP 40/45/50s series pneumatic tire trucks, suitable for indoor and outdoor use in manufacturing, warehousing, and distribution. These trucks come with diesel or LPG engines and offer load capacities ranging from 4000 kg to 5000 kg.

Specifications: The trucks feature 2-speed powershift transaxles and can be equipped with single or dual drive tires. They support load capacities for standard upright positions with standard fork carriages and forks, with a maximum lifting height of 3680 mm. Detailed tables provide dimensions and capacities for various mast configurations, including 2-stage and 3-stage masts.

Operator Control & Comfort: The trucks include an isolated operator cell to minimize vibration and noise, ergonomic controls to reduce fatigue, and an adjustable seat for different operator sizes. Safety features include a seat system with lateral restraints and a non-cinching seat belt.

Engine and Performance: Powered by Perkins 1004.42, 4.0L 4-cylinder diesel engines, these trucks are noted for low smoke emissions and fuel efficiency. They include heavy-duty air cleaners and a cooling system with a 16.9-liter capacity. The transaxle offers electric shift control for smooth operation and extended life.

Brakes and Steering: Hydraulic-operated wet disc brakes provide excellent performance and longevity. The steering system features a heavy fabricated steer axle with hydrostatic operation, enhancing comfort by reducing mechanical links.

Hydraulic System: Driven directly by the engine crankshaft, the hydraulic system ensures reliability and separation from engine heat. It includes a full-flow filter in the hydraulic tank for continuous filtration, with a fluid capacity of 17.1 U.S. gallons (65 liters).

Upright Assembly: The upright assembly offers high visibility two-stage designs for maximum forward visibility, using an interlocking rail/nested roller design for strength and tolerance to unbalanced loads. Features include a negative rail drop for roller adjustment, shaft-type fork carriage with multiple rollers, and hydraulic counterbalance valves for safe operation.

Additional Features/Available Equipment: The trucks are colored in high visibility CLARK Green with a dark gray operator cell and upright, and bright white wheels. Standard features include a 48-inch high load backrest, headlights, tail lights, and turn signals. Optional equipment includes an integral sideshifter, steel cab with heater, rear work light, strobe light, audible alarm, mirrors, and auxiliary hydraulic functions.

Contact Information: For more information, contact CLARK Europe GmbH at Neckarstraße 37, D - 45478 Mülheim an der Ruhr, Tel. +49 208 377336 0, Fax +49 208 377336 36, email: [email protected], or visit www.clarkmheu.com.
