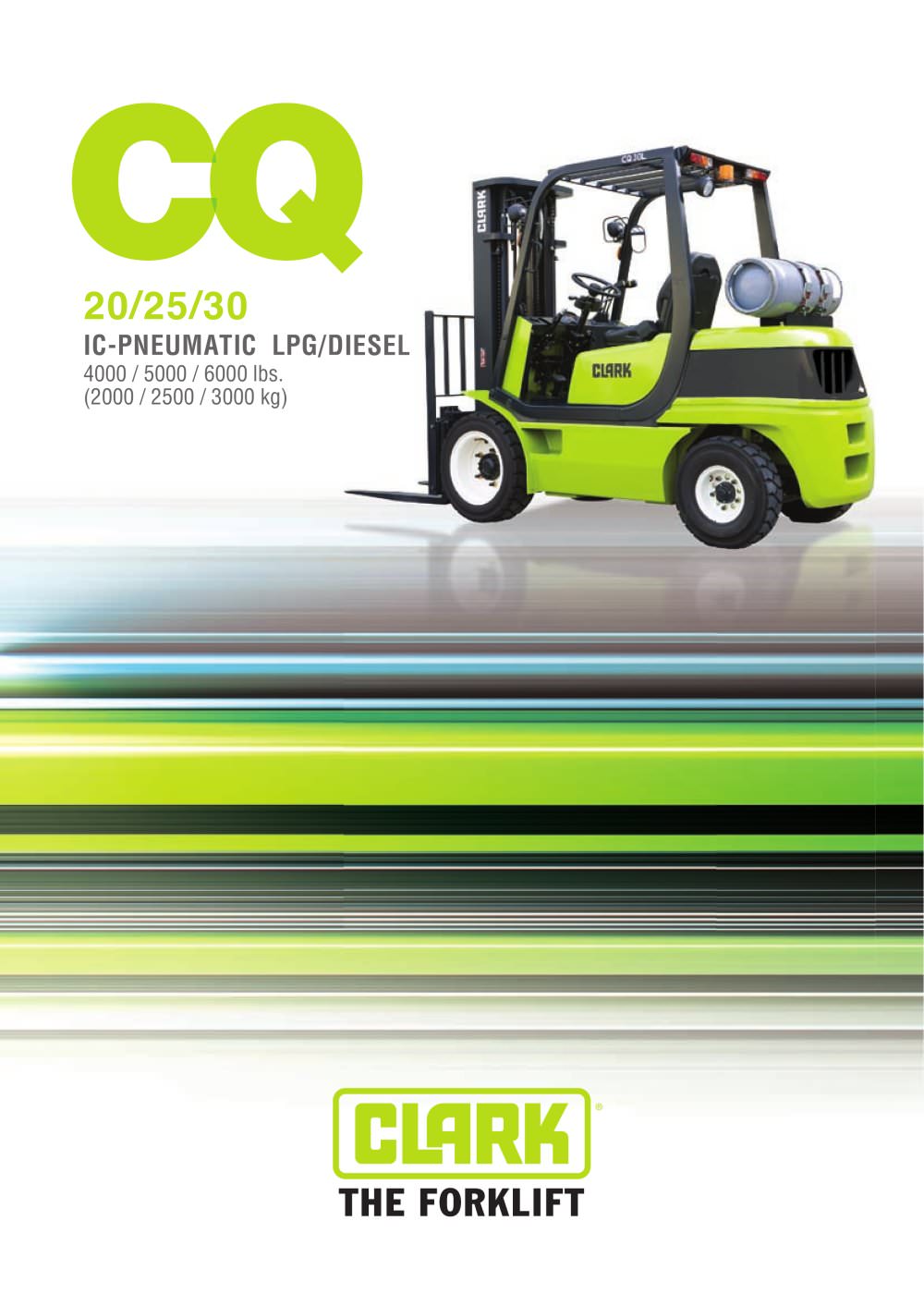

CLARK CQ 20-30

Product catalog summary

Overview
The document provides detailed specifications and features of the Clark CQ20-30 series forklifts, which are designed for dependability and ease of maintenance in various environments such as distribution, manufacturing, and warehousing. These forklifts are available in LPG and diesel variants with load capacities of 4000, 5000, and 6000 lbs (2000, 2500, and 3000 kg).

Specifications and Features

Visibility and Safety: The forklifts feature nested upright rails for maximum visibility and safety, with overhead guard safety bars aligned with the operator's line of sight.
Upright Rails: I-Beam style upright rails are 55% stiffer than conventional rails, enhancing resistance to side-to-side deflection and improving stability with elevated loads.
Operator Comfort: The operator compartment is spacious and supported on rubber isolators to reduce noise and vibration, ensuring a comfortable ride.
Steering and Maneuverability: Hydrostatic power steering with four turns lock-to-lock provides excellent maneuverability and control.
Engine Options: The forklifts are equipped with either a Mitsubishi 4G64 LPG engine or a Yanmar diesel engine, both known for durability, low emissions, and ease of maintenance.
Hydraulic System: Features a load-sensing flow control valve for steering, adjustable flow controls for tilt and auxiliary functions, and an upright mounted load lowering valve for controlled lowering.
Frame and Construction: A heavy-duty, welded, and formed steel plate design protects from impact damage and extends the truck's life.
Transaxle: Includes an integral axle and transmission with modulated shift protection and a common sump for cooling.
Steering Axle: Rugged design with double shear linkage pivot pins and a simple axle design with a double-ended cylinder for steering force.
Operator Compartment: Ergonomic seat with multiple adjustments, thick molded floor mat for reduced vibration, and cowl-mounted hydraulic controls for ease of use.

Available Equipment
The forklifts can be equipped with various optional features such as double auxiliary valves, hose adaptations, hydraulic control options, side shifters, strobe lights, rear work lights, reverse alarms, mirrors, suspension seats, operator cab with heater, and various tire options.

Conclusion
The Clark CQ20-30 series forklifts are designed to be highly maneuverable, easily serviceable, broadly flexible, and extremely dependable, making them suitable for a wide range of industrial applications.
