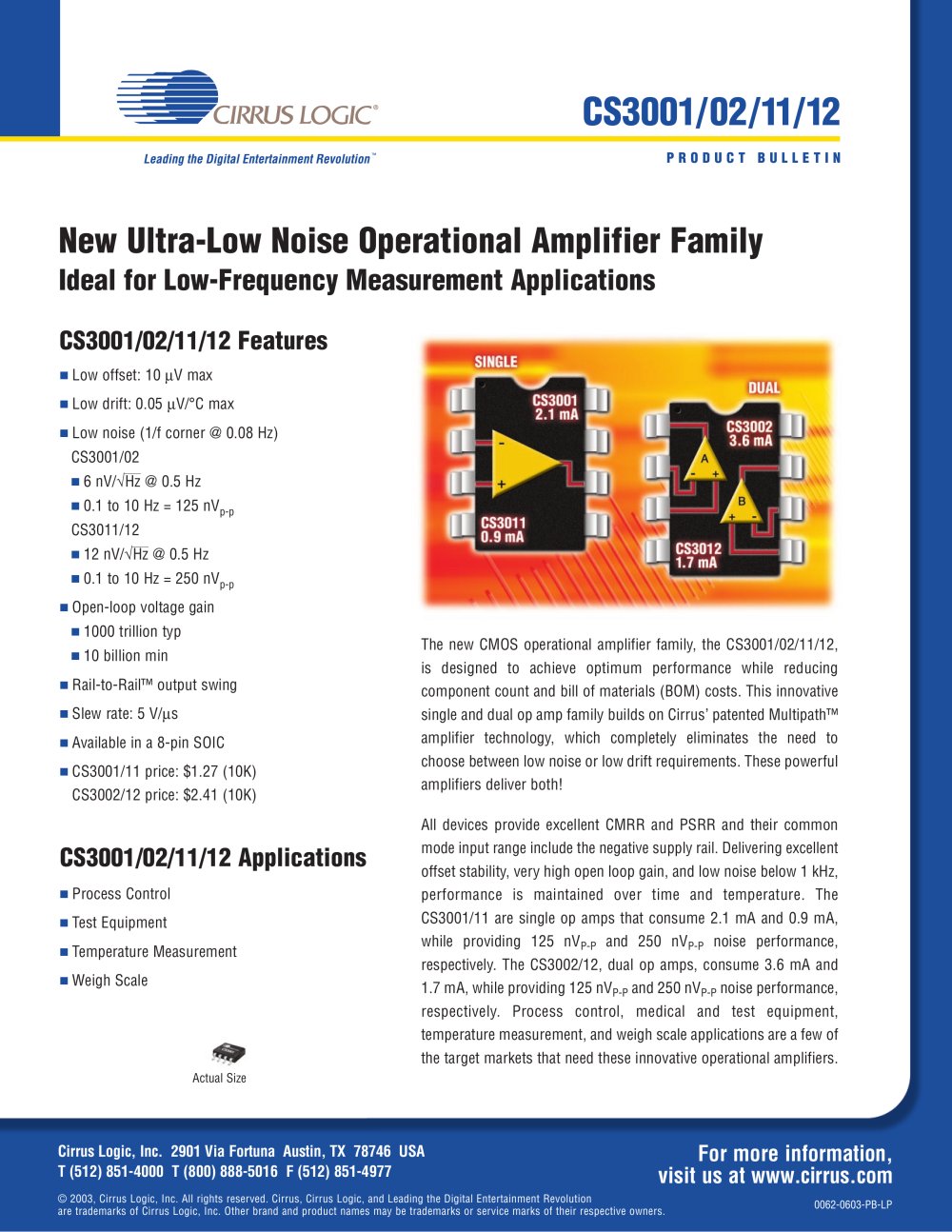

CS3001/02/11/12 P R O D U C T B U L L E T I N New Ultra-Low Noise Operational Amplifier Family Ideal for Low-Frequency Measurement Applications For more information, visit us at www.cirrus.com Cirrus Logic, Inc. 2901 Via Fortuna Austin, TX 78746 USA T (512) 851-4000 T (800) 888-5016 F (512) 851-4977 © 2003, Cirrus Logic, Inc. All rights reserved. Cirrus, Cirrus Logic, and Leading the Digital Entertainment Revolution 0062-0603-PB-LP are trademarks of Cirrus Logic, Inc. Other brand and product names may be trademarks or service marks of their respective owners. CS3001/02/11/12 Features Actual Size Low offset: 10 ìV max Low drift: 0.05 ìV/°C max Low noise (1/f corner @ 0.08 Hz) CS3001/02 6 nV/ãHz @ 0.5 Hz 0.1 to 10 Hz = 125 nVp-p CS3011/12 12 nV/ãHz @ 0.5 Hz 0.1 to 10 Hz = 250 nVp-p Open-loop voltage gain 1000 trillion typ 10 billion min Rail-to-Rail™ output swing Slew rate: 5 V/ìs Available in a 8-pin SOIC CS3001/11 price: $1.27 (10K) CS3002/12 price: $2.41 (10K) CS3001/02/11/12 Applications Process Control Test Equipment Temperature Measurement Weigh Scale The new CMOS operational amplifier family, the CS3001/02/11/12, is designed to achieve optimum performance while reducing component count and bill of materials (BOM) costs. This innovative single and dual op amp family builds on Cirrus’ patented Multipath™ amplifier technology, which completely eliminates the need to choose between low noise or low drift requirements. These powerful amplifiers deliver both! All devices provide excellent CMRR and PSRR and their common mode input range include the negative supply rail. Delivering excellent offset stability, very high open loop gain, and low noise below 1 kHz, performance is maintained over time and temperature. The CS3001/11 are single op amps that consume 2.1 mA and 0.9 mA, while providing 125 nVP-P and 250 nVP-P noise performance, respectively. The CS3002/12, dual op amps, consume 3.6 mA and 1.7 mA, while providing 125 nVP-P and 250 nVP-P noise performance, respectively. Process control, medical and test equipment, temperature measurement, and weigh scale applications are a few of the target markets that need these innovative operational amplifiers.
