CIRCUTOR
DIGITAL INSTRUMENTS

DIGITAL INSTRUMENTS

Product catalog summary

Introduction
CIRCUTOR provides a range of programmable digital indicators and instruments for displaying electrical parameters and setting up alarm systems. These digital instruments offer numerical information with higher accuracy and reliability than analogue instruments, featuring advanced input capabilities like higher input impedance and automatic scale selection.

Product Selection
The document categorizes digital instruments and transducers by series, such as DC, DH, Royal, DM45, and CMM 96, each designed for specific applications including single-phase and three-phase measurements.

Specifications and Features
Digital instruments are available in various sizes and are multi-scale programmable. They measure true root mean square (TRMS) values for voltage and current with high accuracy and resolution up to 16 bits. They support module connections including relays, analogue outputs, and PC communications via RS-232 and RS-485 with MODBUS RTU and ETHERNET protocols, and are compatible with PowerStudio software for data centralization and recording.

Applications
These instruments are used for displaying numerical values of electrical parameters, setting up alarm systems, and controlling processes via software, managing voltage, current, frequency, temperature, harmonics, and time control.

Series Details
DC Series: Digital indicators for panel mounting with programmable scales, TRMS measurement, and optional relay outputs, designed for measuring voltage, current, frequency, and temperature with high accuracy and a 4-digit display.
DH Series: Designed for panel mounting, displaying programmed values of electrical variables or process signals, offering high luminosity displays, true RMS measurement, and multiple expansion module options.

Transducers
The document covers narrow profile and high-precision transducers for single-phase and three-phase applications, emphasizing their accuracy and industrial application.

Standards and Compliance
All instruments and transducers comply with current regulations and standards, ensuring high protection degrees and reliability in measurement processes.

Communication Specifications
Communication speeds range from 1,200 to 19,200 bits/s with parity options and stop bits selection. RS-232 and RS-485 modules offer EDS protection and thermal protection, adhering to EIA standards.

Relay and Analogue Output Features
Relays are available in 2 or 4 configurations with specific nominal current and voltage standards. Analogue outputs have a resolution of 14 bits with insulation standards.

Digital Instruments and Measuring Transducers
M2 series offers optional output programming and programmable output range, with high luminosity displays and TRMS measurement for single and three-phase systems.

Converters
Convert voltage, current, or frequency in single-phase systems, with high-precision transducers for industrial environments.

Overview
The document provides technical specifications and ordering information for digital instruments and measuring transducers, detailing input types, measurement accuracy, and coding for non-standard orders.

Specifications
Auxiliary Power Supply: Standard is 230 Vac, 40...90 Hz. Non-standard orders require specification of code, input range, output range, and auxiliary power supply.
Measurement Accuracy: Generally ±0.2% reading for most transducers, with exceptions like active power and power factor transducers at ±0.5%.

Transducer Types
Includes various transducers for DC voltage, leakage current, frequency, galvanic insulation, temperature, resistance, active power, reactive energy, power factor, Cos j, and current distortion factor, each with specific codes.

Ordering Information
For non-standard orders, specify code, input range, output range, auxiliary power supply, and additional parameters as per the coding table.

Coding Table
Provides internal codes for various input and output standards, including voltage, current, resistance, temperature, and frequency.

Accessories
Includes software like PowerStudio and various front panel adaptors with specific codes for different sizes.

Catalog excerpts

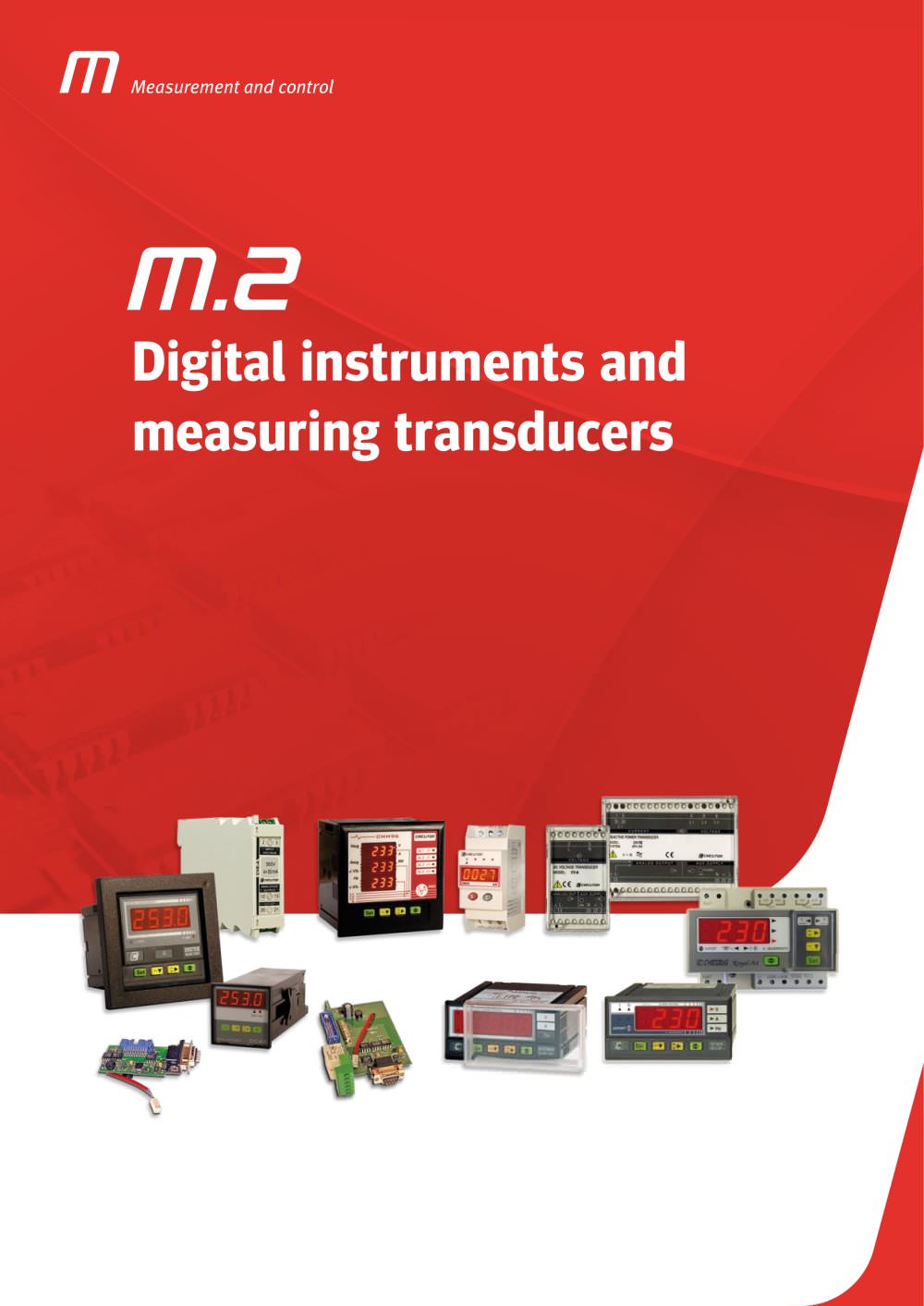

Measurement and control Digital instruments and measuring transducers

Open the catalog to page 1

Digital instruments and measuring transducers Digital instruments and measuring transducers CIRCUTOR offers a wide range of fully programmable digital indicators and instruments that can be used to display electrical parameters or define an alarm system associated to an electrical pa-rameter. Dͩfinition In digital instruments, the measurement process provides discontinuous information, expressed in a number with var-ious digits. This is the numerical value of the parameter measured; the numerical indication is presented throughout the time scale with a predetermined fre-quency. In general, digital...

Open the catalog to page 3

m.3 Digital instruments and measuring transducers Applications 1.- Display on the screen of the nu-merical value of one or more electrical parameters of a sub-panel, control pro-cess or determined unit. 2.- Alarm system: acting on meters, sound and/or light devices, to carry out the protection or notification operations with a relay output . 3.- Control system via software: Voltage control Օ Current control Frequency control Օ Temperature control Control of any process signal Օ Control of harmonics Time control M2-4 gCIRCUTOR

Open the catalog to page 4

Digital instruments and measuring transducers Product slection table Measurement Page DC-B Single-phase A.C. or D.C. 6 DH96 mm Single-phase A.C. or D.C. 9 Royal l^iiiB^Sf ^^^^^^^ Single-phase A.C. 17 DM45 9 Single-phase A.C. 19 96 IAIIAIO Three-phase A.C. 21 Narrow profile transducers s Single-phase or three-phase according to type 23 High-precision tranducers Three-phase A.C. 25 ©CIQCUTOQ 2-5

Open the catalog to page 5

m.3 Digital instruments and measuring transducers Digital instruments DC Sries Digital indicator for panel mounting O Fully programmable: scale, transformer ratio, etc. O Measurement of V, A, Hz or °C. O Measurement in true root mean square (TRMS), ac types.Excellent quality / price ratio O Measurement of maximum and minimum values O Optional relay output, depending on the type Power supply circuit 115 / 230 V ac (±10%) Frequency Consumption 40...70 Hz 4 VA Measurement circuit Resolution Display refresh rate Accuracy No. of samples per cycle (AC) No. of samples per reading (DC) 10 bits 1s ± 0.5...

Open the catalog to page 6

Digital instruments and measuring transducers Digital instruments DC sries Digital indicator for panel mounting ^^^^^^^ DC. Voltmeter Measurement Scale Input Size Type Code AC 150, 300, 600 V ac Direct: 600 V Transformer: Programmable 48 x 48 DC 48 B V ac M20210 72 x 72 DC 72 B V ac M20220 DC 10, 50, 200 V dc Direct: - 200 / +200V Process: 0...10 V 48 x 48 DC 48 B V dc M20213 72 x 72 DC 72 B V dc M20223 DC 600 V dc - 600 / 600 V 48 x 48 DC 48 B V dc M20214 72 x 72 DC 72 B V dc M20224 DC 60, 150, 200 mV dc Direct: - 200 mV / +200 mV 48 x 48 DC 48 B mV dc M20217 Shunt: .../60 mV, .../150 mV 72...

Open the catalog to page 7

m.3 Digital instruments and measuring transducers Digital instruments DC sries Digital indicator for panel mounting DC. Temperature Measurement Relays Input Size Type Code - - 200 ... +200 °C 72 x 72 DC 72 TMP22 M20621 °C 1 - 200 ... +200 °C 72 x 72 DC 72 TMP22 - 1R M20623 - - 200 ... +800 °C 72 x 72 DC 72 TMP28 M20622 1 - 200 ... +800 °C 72 x 72 DC 72 TMP28 - 1R M20624 M2XXXX|0|0XX Internai Code Auxiliary power supply Standard (230 V) 0 100 ... 120 V ac 1 480 ... 500 V ac 4 18 ... 36 V dc 7 Standard (.../ 5 A) ... / 1 A Current input M2-8 gCIRCUTOR

Open the catalog to page 8

Digital instruments and measuring transducers m. Digital instruments DH sries Digital instruments for panel mounting O Digital unit designed to show the program-med value of an electrical variable or process signal on a display, depending on type. Also useful for regulation if used with relay output cards (alarms) O Fully programmable: scale, transformation ratio, alarm relays, communications, etc. O Measurement of V, A, Hz and process sig魭nal (impulses, weight, temperature, pressure, etc). O Measurement in true root mean square (TRMS), types in AC. O Multitude of options with expansion modules...

Open the catalog to page 9

m.3 Digital instruments and measuring transducers Digital instruments DH sries Digital instruments for panel mounting ^^^^^^^ DH96. Ammeter Measurement Parameters Range / Scale Accuracy Display Type Code AC A ...10 A 0.5 % (± 1 dig) 4 digits DH 96 A (10 A) M20413 DH96. Ammeter and voltmeter (with shunt ..J60 mV) Measurement Parameters Range / Scale Accuracy Display Type Code DC A and V Programmable: V and A Range of V: 1 to 100 V Range of A: With shunt .../60 mV 0.2 % (± 1 dig) 4 digits DH 96 A V M2041C * * Expansion cards are not used DH96. Measurement station Measurement Parameters Range Scale...

Open the catalog to page 10

Digital instruments and measuring transducers Digital instruments DH sries Digital instruments for panel mounting DH96 - A / C / P DH96-AV/CPM ©CIQCUTOQ

Open the catalog to page 11

m.3 Digital instruments and measuring transducers Digital instruments DH sries Digital instruments for panel mounting DH96 - FT DH96 - CT DH96-TMP M2-12 fj^CIRCUTOR

Open the catalog to page 12

Digital instruments and measuring transducers DH sries Digital instruments for panel mounting COMPATIBILITY WITH DH 96 MODULES Types C A AV WG CPM P FT CT TPM Code 2 relays - M20421 4 relays - M20422 2 relays + RS-485 or RS-232 (Modbus/RTU) - M20423 Analogue output 0 / 4...20 mA - M20425 Analogue output 0 / 2..10 V - M20426 RS-232 (Modbus/RTU) - M20427 RS-485 (Modbus/RTU) - M20428 Analogue output 0 / 4...20 mA + 2 relays - - M20429 Module2relays Relay Switched Nominal AC Current 8 A Maximum voltage 250 Vac Maximum resistive load 2000 VA Insulation resistance ( at 500 V dc) >1000 M Contact - coil...

Open the catalog to page 13

m.3 Digital instruments and measuring transducers DIN DH sries Digital instruments for panel mounting Communications module O 0 to 247 programmable peripherals O Slection of peripheral number O (only in RS-485) O Selection of communication parameters: speed, parity and stop bits RS-232 Module RS-485 Module EDS Protection Up to 10 kV ac Up to 2 kV ac Communication lines protected against overloads, short-circuit to earth 30 V without damage - Protected against blockages Yes - Communication lines with thermal protection against excessive power dissipation - Yes Connection or disconnection from...
