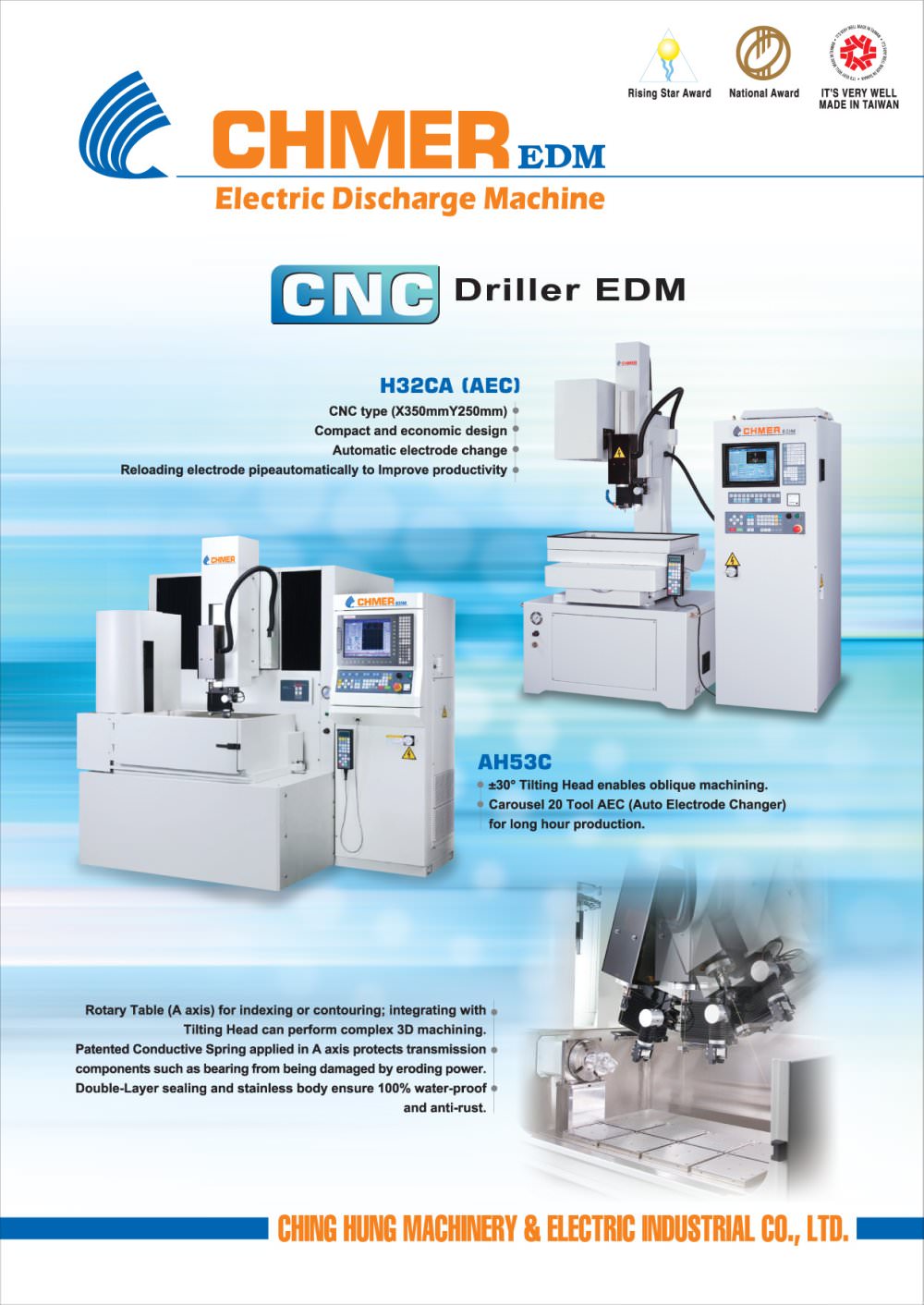

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:20.00pt "Arial", sans-serif; } .font4 { font:24.00pt "Arial", sans-serif; } .font5 { font:37.80pt "Arial", sans-serif; } .font6 { font:53.00pt "Arial", sans-serif; } .font7 { font:22.00pt "Georgia", serif; } .font8 { font:16.00pt "Impact", sans-serif; } CHMER m Rising Star Award National Award IT'S VERY WELL MADE IN TAIWAN EDM Electric Dscharge Machine DrillerEDM H32CA (AEC) CNC type (X350mmY250mm) Compact and conomie design Automatic թlectrode change ■ Reloading lectrode pipeautomatically to Improve productivity AH53C ±30° Tilting Head enables oblique machining. Carousel 20 Tool AEC (Auto Electrode Changer) for long hour production. Rotary Table (A axis) for indexing or contouring; integrating with ■ Tilting Head can perform complex 3D machining. Patented Conductive Spring applied in A axis protects transmission components such as bearing from being damaged by eroding power. Double-Layer sealing and stainless body ensure 100% water-proof 镕 and anti-rust. CHIhlG HUNS MACHINERY & ELECTRIC INDUSTRIAL CO., LTD.
