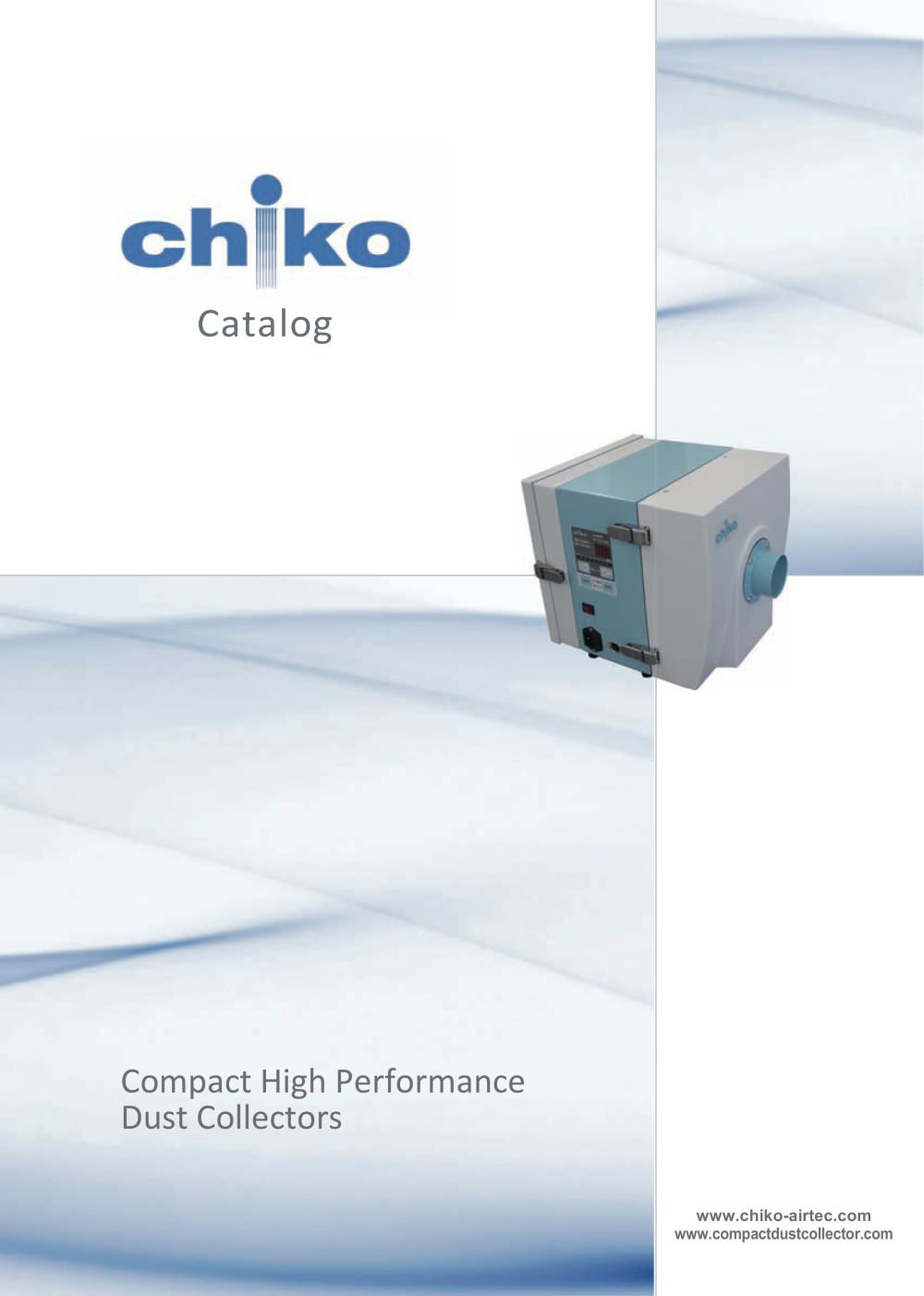

Compact High Performance Dust Collectors www.chiko-airtec.com www.compactdustcollector.com

Low pressure dust collectors CKU SERIES …P6 Low pressure dust collectors SK SERIES …P8 High pressure dust collectors CBA SERIES …P10 Dust collectors for lasers …P12 High pressure dust collectors CVA SERIE …P16 Vacuum cleaner for a clean environment …P18

Manufacturer-distributor of Compact High Performance dust colletors CHIKO AIRTEC, first Japanese designer and distributor of very compact industrial high performance dust collectors. Created in 1998 in the region of OSAKA in Japan, CHIKO AIRTEC has specialized in the miniaturization of fine particulates extractors, air and odor purifiers. Leader in the fields of small models, recognized by all the greatest Japanese companies (Panasonic, Sony, Toyota…), Chiko Airtec has designed its dust collectors in order to combine reliability, performance, mobility, offering low-energy consuming products...

Performance curbs of compact dust collectors Performance curbs are defined by two axes: the vertical axe indicates the static pressure in kPa and the horizontal one the airflow in m3/min. The values displayed are the maximum values of the dust collectors. HOW AIRFLOW DUST COLLECTORS (compatible with cleanrooms) OMPORTANT AIRFLOW DUST COLLECTORS Airflow mVmin

Comparative Table Please read carefully the user's guide before running the machine. ■ Explosives particulates (aluminium, magnesium, titanium, zinc, epoxy...) Are not subject to suction: ■ Dust containing sparks generated by applications and heat sources. ■ Inflammables substances (diesel oil, thinner, benzene, kerosene, paint . ) ■ Others: water, corrosive material (chemical liquids...).

High airflow dust collectors for flying particulates. Use adapted to cleanrooms Class 100 000 to 10 000. The users have to optimize the suction solution and the nozzle for a high performance suction. L OW PRESSURE DUST COLLECTORS FOR FLYING PARTICULATES Specifications Very compact, light, silent (54 to 73 dB). Can be placed in narrow area, easy to be integrated. 24h-a-day use without any risk of overheating. Adaptable to any kind of environment. Capacity of prefilter: 2.5 to 8 liters. Possibility to collect precious particulates thanks to a prefilter bag. Suction system Filter 3: filtration...

' Synchronization plug lain power Electric power cable Synchronization plug Main power Electric power cable Performance filter HEPA Filter Synchronization plug Electric power cable Technical specifications

Multipurpose dust collectors for normal environment, equiped with a prefilter and a cylindrical filter. They are characterized by a strong suction power in a very compact size. LP L OW PRESSURE DUST COLLECTORS FOR MULTIPURPOSES Specifications Compact, moveable, easy to integrate. Maximum airflow: 330 to 900 m3/h. Capacity of prefilter: from 3 to 20 liters. Shaking lever (only for the SKV-900AT-HC-V1). Adapted to a large range of applications. 24h-a-day use without any risk of overheating. Transparent lid for a visual checking of the prefilter. Possibility to collect precious particulates...

Pre-filter Cylindrical filter Synchronization plug. Main power Electric power cable Synchronization plug Main power/ Electric power cable/ Technical specifications , Main power / Electric power cable ^ Synch ronlzatli m plug Technical specifications

High pressure compact dust collector for suction of flying particulates. Use adapted to cleanroom classes from 100 00 to 10 000. Possibility to use several hoses and nozzles in order to optimize suction power. IGH PRESSURE DUST COLLECTOR FOR AN OPTIMAL PRESSURE ■ Ultra-compact, light, easy to integrate: 321x260x274 mm. ■ Strong static pressure: 8.5 kPa to 10 kPa. ■ Possible connection to several spots of suction. ■ They are particularly adapted for hoses with small diameters for a suction which is very closed to the source of dust generation. ■ 24h-a-day running without any risk of...

Main power' Synchronization plug Electric power cable T" and 3™ High HEPA Filter Performance filter (Option) Main power \ '" Synchronization plug Electric power cable Technical specifications

Fumes and odors collectors for microapplications of laser marking, welding. HIGH PRESSURE DUST COLLECTOR FOR LASER Specifications Compact, mobile, easy to integrate. Strong static pressure: 9.5 kPa. Automatic reinitialization system of the filter. Patented filter with zeolite, for a longer lifetime of the filters. Avtivate carbon to remove odors. HEPA filter (cleanroom Class 100 000 ~ 10 000). Possibility to evacuate air to outside. Suction system Final filter: HEPA filter for a clean exhaust air. Filtration Filter 1: filter protected from dry and sticky particulates Activated carbon...

Unique and optimal patented system zeolite filter CBA-1000AT-HC-DSA-V1 -CE offers a level of optimal suction efficiency thanks to early unsaturation of the main filter. This technology enables a top management of the sticky particulates. Phases of the particulates absorption The first filter has a neutralizing action thanks to the combination of a filter and absorbing zeolite. This latter plays a role of obstruction to the fumes and filter protection. This Chiko Airtec process extends noticeably the lifetime of the filter and reduces the number of replacements. It enables thus time and...

HOW PRESSURE DUST COLLECTORS FOR LASER, WELDING APPLICATIONS Technical specifications Very compact size, light, easy to integrate, ideal for narrow spaces. Excellent performance/cost ratio. Very low energy consuming: 150 W. For a close suction to the source of dust generation. Suction system Filter 1: special structure of the filter for a better lifetime. Cassette-shaped for a very easy replacement. Activated carbon filter: odors absorption. Final step of filtration: HEPA filter for a clean 1. Indicator of filter saturation. 2. Anomaly signal: electric overload, abnormal temperature...

■ Easy installation, no work required. ■ Important airflow for a rapid air purification: 600 m3/h. ■ 30 min to create a clean environment for a space with a volume ■ Speed regulator with 3 levels (high, medium, low). ■ Improvement of working space cleanness for products assembling. ■ Improvement of the cleanness level inside a cleanroom ■ Improvement of the cleanness level inside a test booth. Suction system /-Speed regulator Equiped with two High Performance filters Technical specifications
