Stand Alone Multi Use Electronic Enclosures

Product catalog summary

Overview: The document provides detailed specifications and options for the SA Series general-purpose electronic enclosures by Cheval Electronic Enclosure Co., Ltd. These enclosures are designed to meet a wide range of industrial requirements and are suitable for technicians and hobbyists.

Specifications: The enclosures conform to IEC 297 dimensions and are available in 24 different sizes and configurations. They are flat-packed for convenient shipping and storage, with quick assembly possible in approximately 10 minutes using provided hardware. The enclosures feature a corrosion-resistant zinc phosphate dipped steel body with aluminum front and rear panels, and a tough exterior of powder-epoxy paint. Custom colors and design modifications are available upon request.

Dimensions: The enclosures come in various heights (1.5U, 2U, 3U, 4U, 5U), depths (D1: 178mm, D2: 279mm), and widths (W1: 203mm, W2: 305mm, W3: 432mm). Specific model dimensions are provided in a detailed table.

Options:

Support Bar Kit: Available in 6 different sizes with 2 widths (1R, 2R) and 3 lengths (W1, W2, W3). These bars facilitate easy assembly and future servicing, supplied with nuts and screws.
Chassis Plate Kit: Designed for users requiring a wide chassis area, made from zinc plate steel, and supplied with nuts and screws. Dimensions vary based on depth and width requirements.

Contact Information: The document lists contact details for Cheval Electronic Enclosure Co., Ltd., Cheval Technology Co., Ltd., and Mail Scientific Electronics Co., Ltd., including addresses, phone numbers, fax numbers, and email.

Catalog excerpts

Stand Alone Multi Use Electronic Enclosures-1

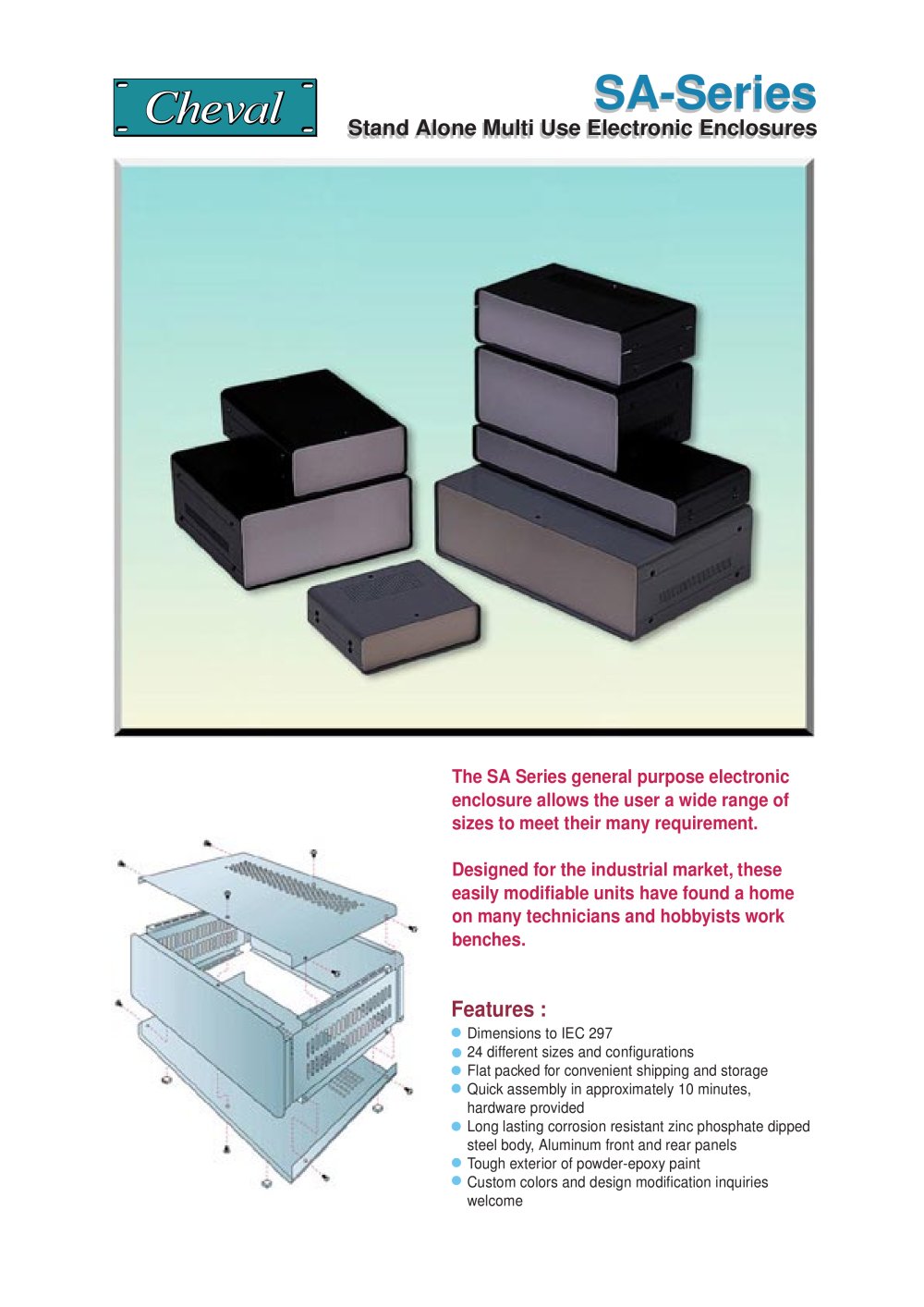

Stand Alone Multi Use Electronic Enclosures Stand Alone Multi Use Electronic Enclosures > The SA Series general purpose electronicenclosure allows the user a wide range of sizes to meet their many requirement.Designed for the industrial market, theseeasily modifiable units have found a home on many technicians and hobbyists work benches. Features : > Dimensions to IEC 29724 different sizes and configurations Flat packed for convenient shipping and storage Quick assembly in approximately 10 minutes, hardware provided Long lasting corrosion resistant zinc phosphate dipped steel body, Aluminum front and rear panels Tough exterior of powder-epoxy paint Custom colors and design modification inquiries welcome size="-2">

Open the catalog to page 1

Stand Alone Multi Use Electronic Enclosures-2

11.4 1R Support Bar > DW L 25.4 For the user who requires a wide chassis area.Supplied with nuts and screws. 2R Support Bar > CP D1 W1194 120CP D1 W2296 120 CP D1 W3422 120 CP D2 W1194 222 CP D2 W2295 222 CP D2 W3422 222 Mounting compenents on the Support Bar has many advantages. Easy to assemble and convenent to access for future service. Supplied with nuts and screws. > Cheval Electronic Enclosure Co., Ltd. Cheval Technology Co.,Ltd. Mail Scientific Electronics Co., Ltd. 145 Soi 4 Moo 17, Bangplee Industrial Estate, BangsaotongSub District Bangsaotong, Samutprakarn 10540, THAILAND Tel : (02)...
