Turbidity Monitor

Product catalog summary

Overview: The TM 2200 Turbidimeter by Chemtrac is designed to optimize water treatment processes and complies with USEPA Method 180.1. It features a nephelometric design with a measurement range of 0 to 100 NTU.

Key Features:

Long-lasting tungsten light source with over 15,000 hours of operation.
Integrated de-bubbler, sensor, and display in a single enclosure for easy installation and maintenance.
Flexible mounting options: stand, rack, or wall mount.
Easy calibration with a low-volume cell using less than 50 mL of calibration solution.
Unique 'wave baffle' and see-through design for easy cleaning and maintenance.
Up-flow, flow-through design ensuring constant sample flow.
Data storage capabilities with current turbidity readings, archived data, and diagnostic data.
Multiple communication protocols including Modbus RTU, Modbus ASCII, Modbus TCP (Ethernet), and optional Bluetooth.
Data backup to SCADA and built-in web server for configuration and data download.

Specifications:

Resolution: 0.001 NTU up to 9.999 NTU; 0.01 from 10 to 100 NTU.
Repeatability: Better than ± 1.0% of reading or ± 0.002 NTU.
Signal Averaging: User selectable from 1-90 seconds.
Sample Flow: 100 to 1000 mL/min.
Temperature Range: 0-50°C (32-122°F) for both sample and operating conditions.
Outputs: Two selectable 4-20 mA isolated, adjustable over each range.
Certifications: CSA, CE.
Enclosure: NEMA 4X.
Power Requirements: 100-240 VAC, 47-63 Hz, 0.5 A.
Dimensions: 53 cm H x 23 cm W x 20 cm D (21"H x 9"W x 8"D).
Shipping Weight: 6 Kg (13 Lbs).

Data Collection Software: Communicates on RS485 Network to Chemtrac Turbidimeters and Particle Counters, with a built-in web server for IP settings configuration, alarm configuration, and data download.

Catalog excerpts

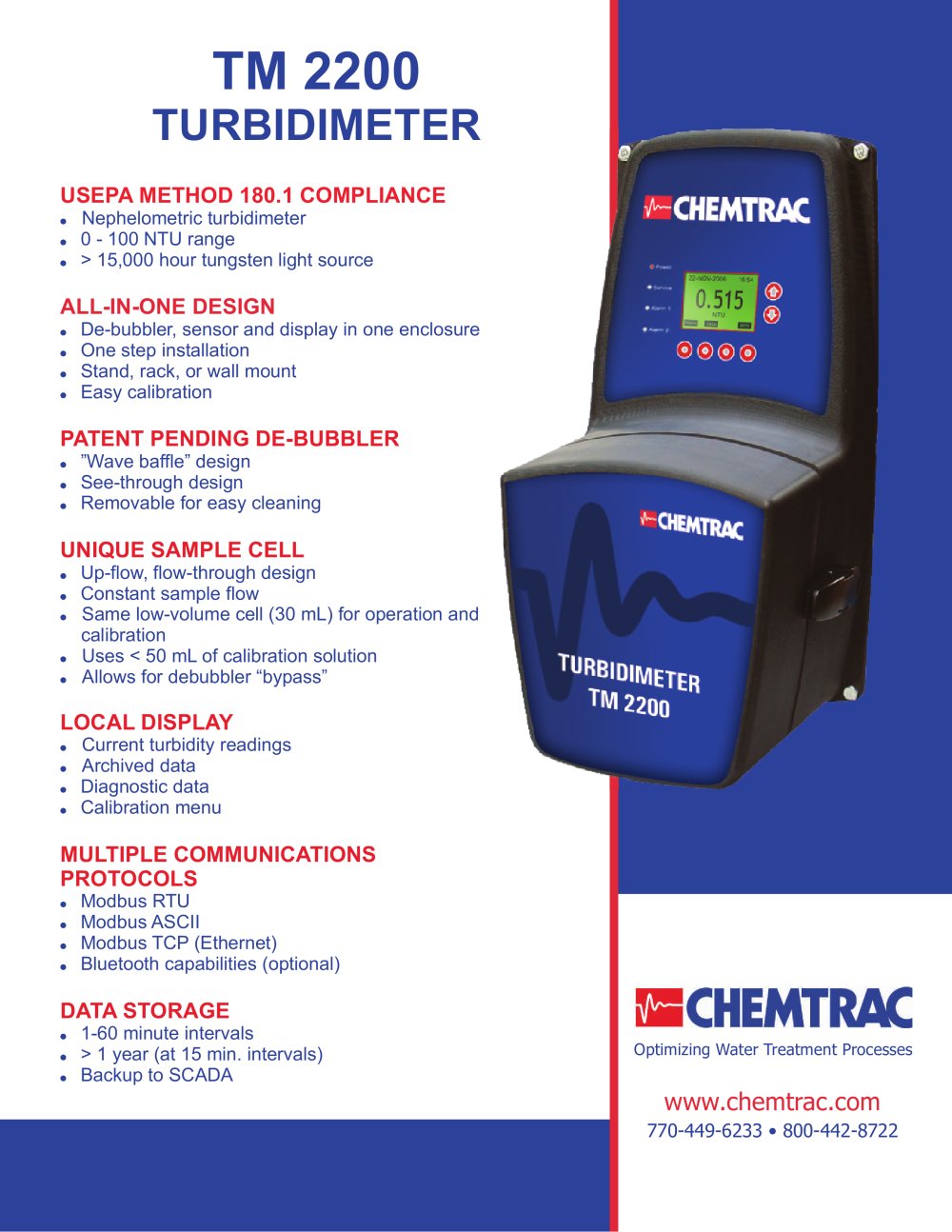

! Nephelometric turbidimeter > ! 0 - 100 NTU range > ! > 15,000 hour tungsten light source > ! De-bubbler, sensor and display in one enclosure > ! One step installation > ! Stand, rack, or wall mount > ! Easy calibration > ! Wave baffleԔ design > ! See-through design > ! Removable for easy cleaning > ! Up-flow, flow-through design > ! Constant sample flow > ! Same low-volume cell (30 mL) for operation and calibration > ! Uses < 50 mL of calibration solution > ! Allows for debubbler bypassӔ > ! Current turbidity readings > ! Archived data > ! Diagnostic data > ! Calibration menu > ! Modbus RTU > ! Modbus ASCII > ! Modbus TCP (Ethernet) > ! Bluetooth capabilities (optional) > ! 1-60 minute intervals > ! > 1 year (at 15 min. intervals) > Optimizing Water Treatment Processes ! Backup to SCADA >

Open the catalog to page 1

(Communicates on RS485 Network to Chemtrac Turbidimeters and Particle Counters) Compliance: USEPA 180.1 Range: 0 - 100 NTU Resolution: 0.001 NTU up to 9.999 NTU; 0.01 from 10 to 100 NTU Repeatability: Better than 1.0% of reading or ѱ 0.002 NTU Signal Averaging: User selectable from 1-90 seconds Sample Flow: 100 to 1000 mL/min. Sample Temperature: 0-50 C, (32-122 F) > oo (Allows Configuration of I.P. Settings, Alarm Configuration, & Download of Stored Data) Operating Temperature: 0-50 C, (32-122 F) > oo Light Source: Tungsten lamp Lamp Life (MTTF): Greater than 15,000 hours (20 months) Outputs:...

Open the catalog to page 2
